Staubli SiliVolt-2V Series Red 1 mm² Hook Up Wire, 511/0.05 mm, 25m, Silicone Insulation
- RS Stock No.:
- 175-7490
- Brand:
- Staubli
Subtotal (1 reel of 25 metres)*
£94.65
(exc. VAT)
£113.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £94.65 | £3.786 |
*price indicative
- RS Stock No.:
- 175-7490
- Brand:
- Staubli
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Staubli | |
| Cross Sectional Area | 1 mm² | |
| Sheath Colour | Red | |
| Cable Shape | Single Core | |
| Core Strands | 511/0.05 mm | |
| Length | 25m | |
| Insulation Material | Silicone | |
| Voltage Rating | 1.5 kV | |
| Outer Diameter | 3.9mm | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +150°C | |
| Conductor Material | Copper | |
| Cable Type | Harsh Environment | |
| Series | SiliVolt-2V | |
| Number of Strands | 511 | |
| Resistant To | Chemical Resistant, Impact Resistant, Radiation Resistant | |
| Size of Strands | 0.05 Dia. mm | |
Select all | ||
|---|---|---|
Brand Staubli | ||
Cross Sectional Area 1 mm² | ||
Sheath Colour Red | ||
Cable Shape Single Core | ||
Core Strands 511/0.05 mm | ||
Length 25m | ||
Insulation Material Silicone | ||
Voltage Rating 1.5 kV | ||
Outer Diameter 3.9mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +150°C | ||
Conductor Material Copper | ||
Cable Type Harsh Environment | ||
Series SiliVolt-2V | ||
Number of Strands 511 | ||
Resistant To Chemical Resistant, Impact Resistant, Radiation Resistant | ||
Size of Strands 0.05 Dia. mm | ||
- COO (Country of Origin):
- DE

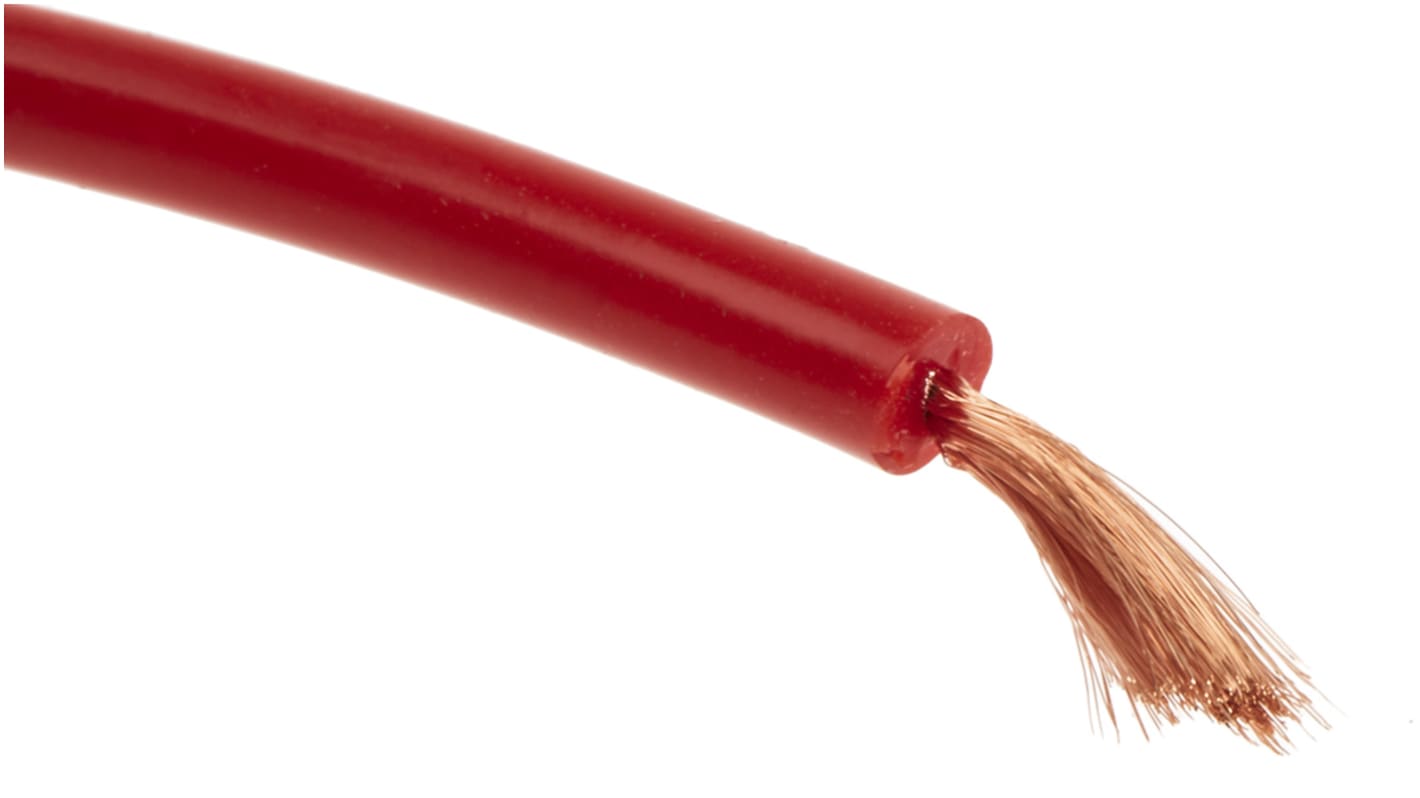

Staubli Harsh Environment Wire
The Staubli harsh environment wire has a 1mm² cross-sectional area, red sheath and 25m long reel. The conductor of wire is made of copper with highly flexible silicone insulation and the silicone ash produced after burning insulates the wires in case a fire strikes. This material property helps wire to withstand brief contact with the soldering iron. It has 511 copper strands.
Features and Benefits
• Good chemical tolerance
• Halogen-free and environment friendly
• High impact value
• Maximum elongation and tear strength
• Service temperature ranges between -50°C and 150°C
• Resistant to chemical, impact and radiation
• Halogen-free and environment friendly
• High impact value
• Maximum elongation and tear strength
• Service temperature ranges between -50°C and 150°C
• Resistant to chemical, impact and radiation
Applications
• Electrical installations in industries
• Marking up maximum flexibility test leads
• Wiring very flexible parts
• Marking up maximum flexibility test leads
• Wiring very flexible parts
