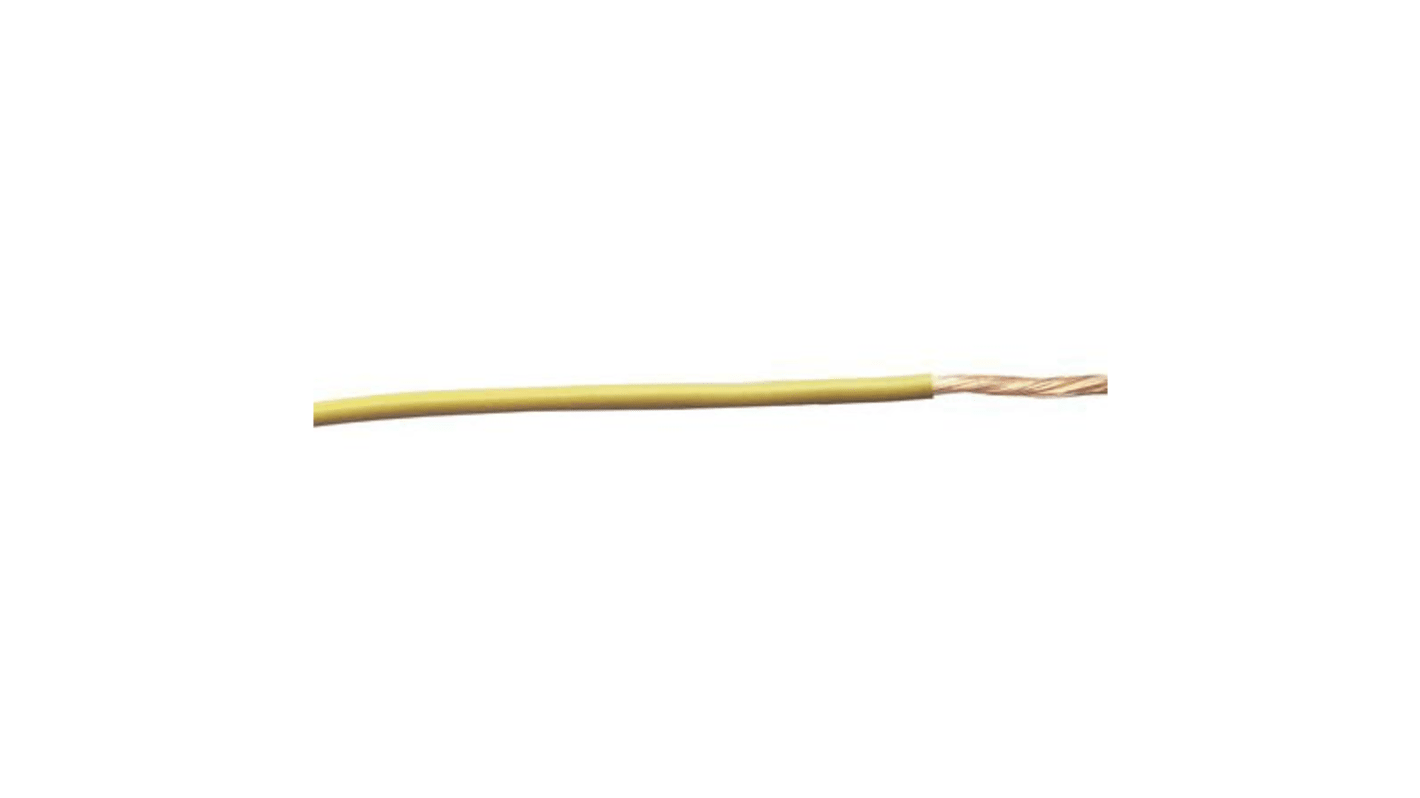

RS PRO Yellow 3mm² Hook Up Wire, 175/0.15 mm, 30m
- RS Stock No.:
- 122-5890
- Brand:
- RS PRO
Subtotal (1 reel of 30 metres)*
£32.73
(exc. VAT)
£39.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £32.73 | £1.091 |
*price indicative
- RS Stock No.:
- 122-5890
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 3mm² | |
| Sheath Colour | Yellow | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 175/0.15 mm | |
| Length | 30m | |
| Voltage Rating | 600 V | |
| Outer Diameter | 4.1mm | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -40°C | |
| Cable Type | Automotive | |
| Fire Behaviour | Flame Retardant | |
| Outer Sheath Material | PVC | |
| Number of Strands | 175 | |
| Size of Strands | 0.15mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 3mm² | ||
Sheath Colour Yellow | ||
Cable Shape Wire/Single Core | ||
Core Strands 175/0.15 mm | ||
Length 30m | ||
Voltage Rating 600 V | ||
Outer Diameter 4.1mm | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
Cable Type Automotive | ||
Fire Behaviour Flame Retardant | ||
Outer Sheath Material PVC | ||
Number of Strands 175 | ||
Size of Strands 0.15mm | ||
- COO (Country of Origin):
- CN
ISO6722-1 Automotive Wire
The ISO 6722 RS cable is designed for use in road vehicle applications where nominal system voltage is greater than (60Vdc or 25Vac) and less than or equal to (600 V dc or 600V ac).
Features and Benefits
• VW-1 Flammability
• PVC insulation material
• RoHS and REACH compliant
• PVC insulation material
• RoHS and REACH compliant
Standards
VW-1, RoHS, REACH
