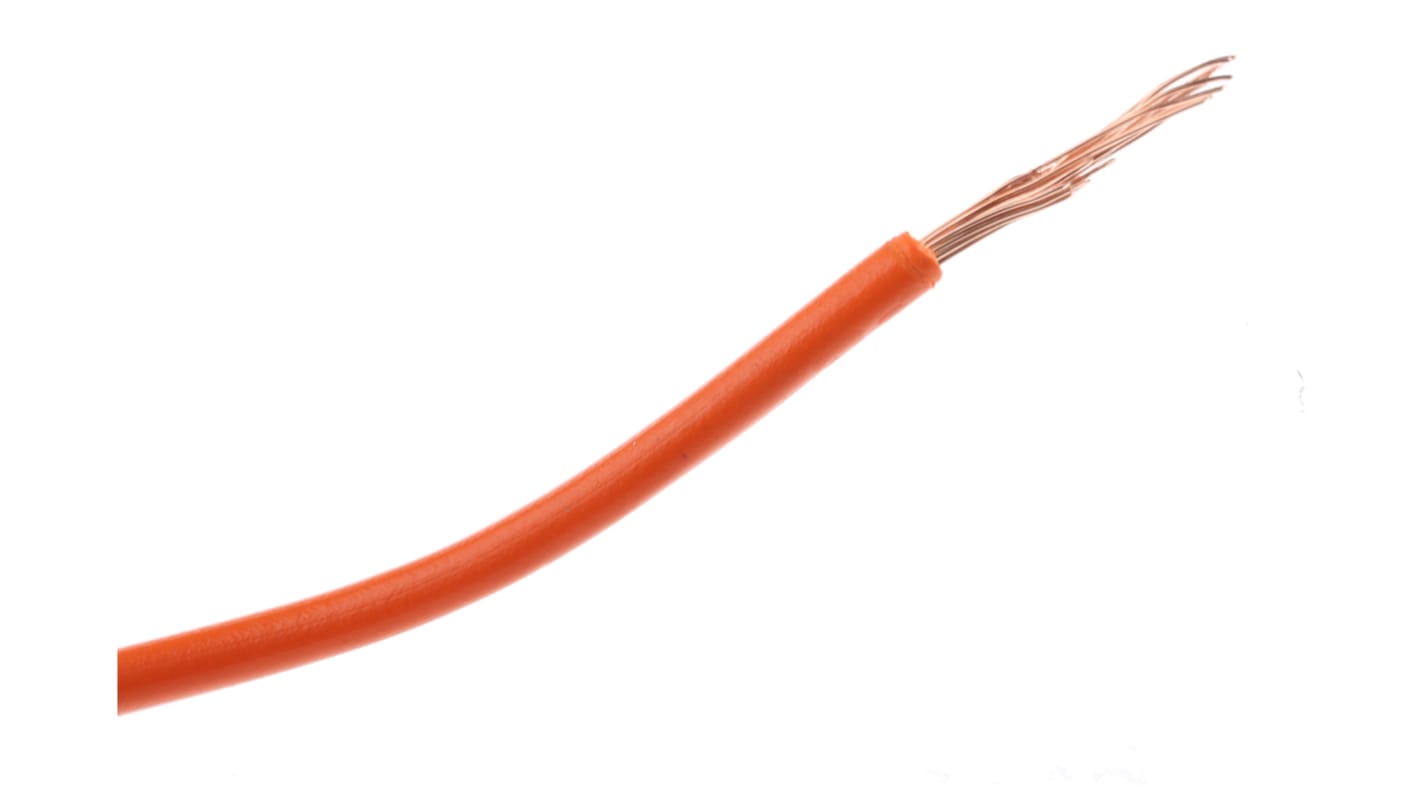

RS PRO Orange 0.75 mm² Hook Up Wire, 18 AWG, 100m, PVC Insulation

View all Hook Up Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Orange 0.75mm² Hook Up Wire, 18 AWG, 100m, PVC Insulation
RS Stock No.
201-0576

1 Reel of 100 Metre(s)

£35.61

(exc. VAT)

£42.73

(inc. VAT)

RS Stock No.:
536-203
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.75 mm²

Sheath Colour

Orange

American Wire Gauge

18 AWG

Cable Shape

Single Core

Length

100m

European Harmonised Code

H05V-K

Insulation Material

PVC

Outer Diameter

2.8mm

Voltage Rating

500 V

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

+5°C

Conductor Material

Copper

Wire Style

2491X

Standards Met

CENELEC Certified, Harmonised Certified, IEC Rated

COO (Country of Origin):
IT

H05V-K flexible cable wires


HO5V-K flexible wires (300 / 500 V), class 5, for internal wiring. For installation outdoors, on an insulator or under conduits (sheaths, gutters etc.).
Generally used in connections subject to vibration and distortion.
Minimum bending radius for installation is 4 times the external diameter.

Standards

NF 32-201; HD 21.3; IEC 227-6.
