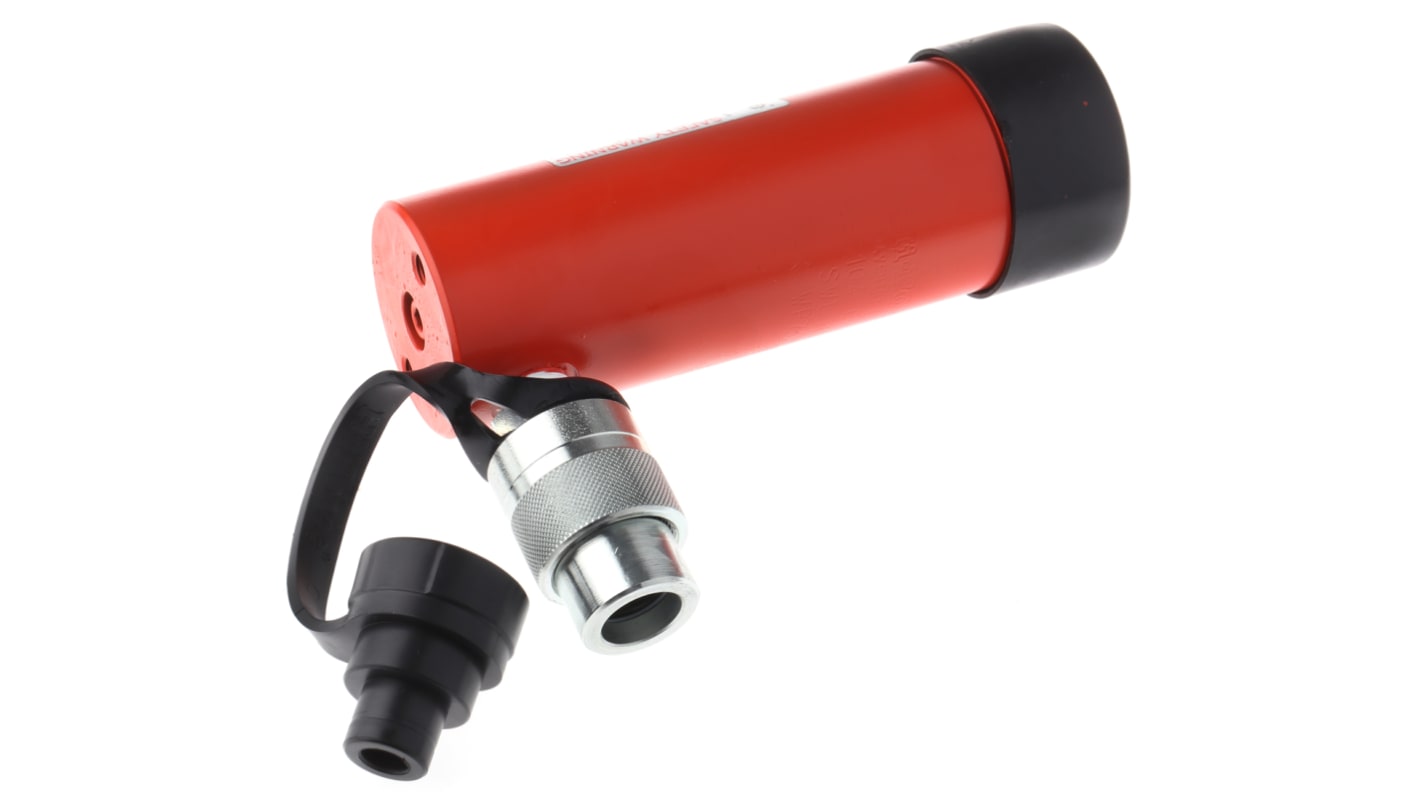

Hi-Force, Portable General Purpose Hydraulic Cylinder, HSS104 Single Acting 10 t 100 mm
- RS Stock No.:
- 807-968
- Mfr. Part No.:
- HSS104
- Brand:
- Hi-Force
Subtotal (1 unit)*
£394.54
(exc. VAT)
£473.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £394.54 |
*price indicative
- RS Stock No.:
- 807-968
- Mfr. Part No.:
- HSS104
- Brand:
- Hi-Force
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hi-Force | |
| Product Type | General Purpose Hydraulic Cylinder | |
| Closed Height | 175mm | |
| Stroke Length | 100mm | |
| Extended Height | 275mm | |
| Cylinder Effective Area | 14.4cm² | |
| Oil Capacity | 144cm³ | |
| Maximum Operating Pressure | 700 bar | |
| Action Type | Single Acting | |
| Cylinder Capacity | 10t | |
| Weight | 3kg | |
| Outside Diameter | 57mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Hi-Force | ||
Product Type General Purpose Hydraulic Cylinder | ||
Closed Height 175mm | ||
Stroke Length 100mm | ||
Extended Height 275mm | ||
Cylinder Effective Area 14.4cm² | ||
Oil Capacity 144cm³ | ||
Maximum Operating Pressure 700 bar | ||
Action Type Single Acting | ||
Cylinder Capacity 10t | ||
Weight 3kg | ||
Outside Diameter 57mm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Standard Cylinders
For lifting and pushing applications where flexibility and high cycle requirements exist
Non-metallic bearings on the piston rod and the stop ring provide excellent wear resistance with low friction and high side load bearing capacity. Suitable for use in a diverse range of industries including, mining, power stations, railways shipyards and steelworks.
Service and repair seal kits are available (808-185, 808-179)
Cylinders
High quality single acting, spring return cylinders, manufactured from high strength alloy steels, and providing a minimum safety factor of 3:1
Piston rods are chrome plated to prevent corrosion and the use of pressure activated anti-extrusion seals, enhance performance and reliability
Heavy duty return springs, assist single acting pistons to retract fully. Steel stop rings further increase a cylinders capacity to withstand side loads and restrain the piston at full extension
All port connections are 3/8 in. NPT and each cylinder is fitted with a high flow, quick release, female half coupler as standard.
All cylinders are individually tested to 125% of their working pressures and are issued with a manufacturers test certificate, and instruction leaflet
The capacities of all our range of high pressure cylinders are specified at a working pressure of 700 bar
For suitable oil see technical specification of Hydraulic Hand Pumps
Warning
Saftey Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories.
