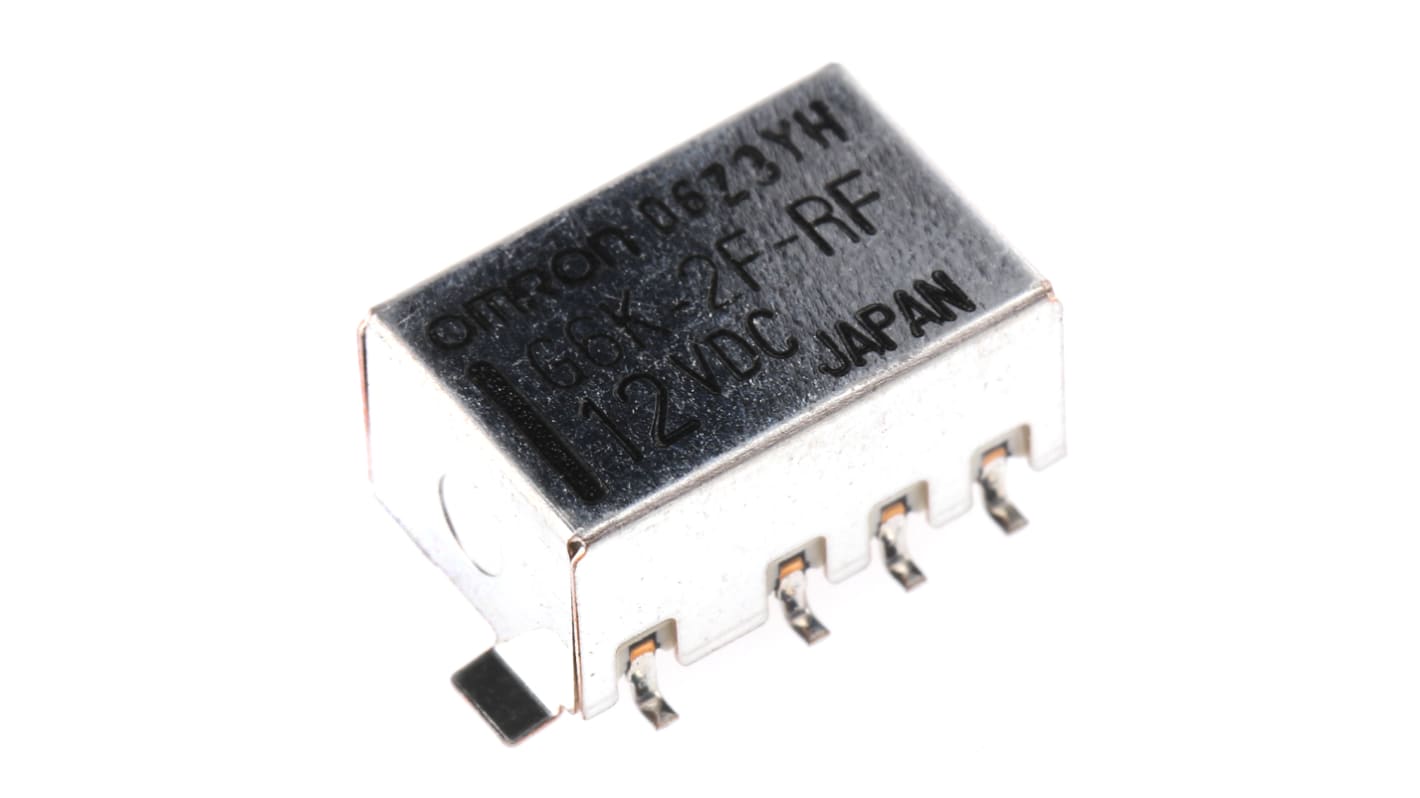

Omron PCB Mount High Frequency Relay, 12V dc Coil, 50Ω Impedance, 1GHz Max. Coil Freq., DPDT
- RS Stock No.:
- 492-917
- Mfr. Part No.:
- G6K-2F-RF DC12
- Brand:
- Omron
Subtotal (1 unit)*
£21.72
(exc. VAT)
£26.06
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) ready to ship
- Plus 3 unit(s) shipping from 28 October 2025
Units | Per unit |
|---|---|
| 1 + | £21.72 |
*price indicative
- RS Stock No.:
- 492-917
- Mfr. Part No.:
- G6K-2F-RF DC12
- Brand:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Coil Frequency | 1GHz | |
| Relay Type | HF Relay | |
| Coil Resistance | 1315Ω | |
| Contact Resistance | 100 mΩ | |
| Insertion Loss | 0.2 dB @ 1 GHz | |
| Isolation | 20 dB @ 1 GHz (Between Contacts of the Same Poles), 30 dB @ 1 GHz (Between Contacts of Different Poles) | |
| VSWR Voltage Standing Wave Ratio | 1.2 @ 1 GHz | |
| Impedance | 50Ω | |
| Contact Configuration | DPDT | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Coil Power | 100mW | |
| Contact Material | Gold | |
| Switching Voltage | 60 V dc, 125V ac | |
| Operating Temperature Range | -40 → +70°C | |
| Dimensions | 10.3 x 6.9 x 5.4mm | |
| Operating Time Including Bounce | 3ms | |
| Maximum Operating Temperature | +70°C | |
| Depth | 6.9mm | |
| Minimum Operating Temperature | -40°C | |
| Height | 5.4mm | |
| Length | 10.3mm | |
| Life | 100000 (Electrical) cycles, 50000000 (Mechanical) cycles | |
Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Coil Frequency 1GHz | ||
Relay Type HF Relay | ||
Coil Resistance 1315Ω | ||
Contact Resistance 100 mΩ | ||
Insertion Loss 0.2 dB @ 1 GHz | ||
Isolation 20 dB @ 1 GHz (Between Contacts of the Same Poles), 30 dB @ 1 GHz (Between Contacts of Different Poles) | ||
VSWR Voltage Standing Wave Ratio 1.2 @ 1 GHz | ||
Impedance 50Ω | ||
Contact Configuration DPDT | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Coil Power 100mW | ||
Contact Material Gold | ||
Switching Voltage 60 V dc, 125V ac | ||
Operating Temperature Range -40 → +70°C | ||
Dimensions 10.3 x 6.9 x 5.4mm | ||
Operating Time Including Bounce 3ms | ||
Maximum Operating Temperature +70°C | ||
Depth 6.9mm | ||
Minimum Operating Temperature -40°C | ||
Height 5.4mm | ||
Length 10.3mm | ||
Life 100000 (Electrical) cycles, 50000000 (Mechanical) cycles | ||
- COO (Country of Origin):
- JP
High Frequency G6K-RF Series
Single side stable and single winding latching types available
Miniature SMT package - 10.3x6.9x5.4mm
'Outside-L' surface mounting terminals
Low power consumption of approximately 100mW
Fully sealed construction
Approvals
