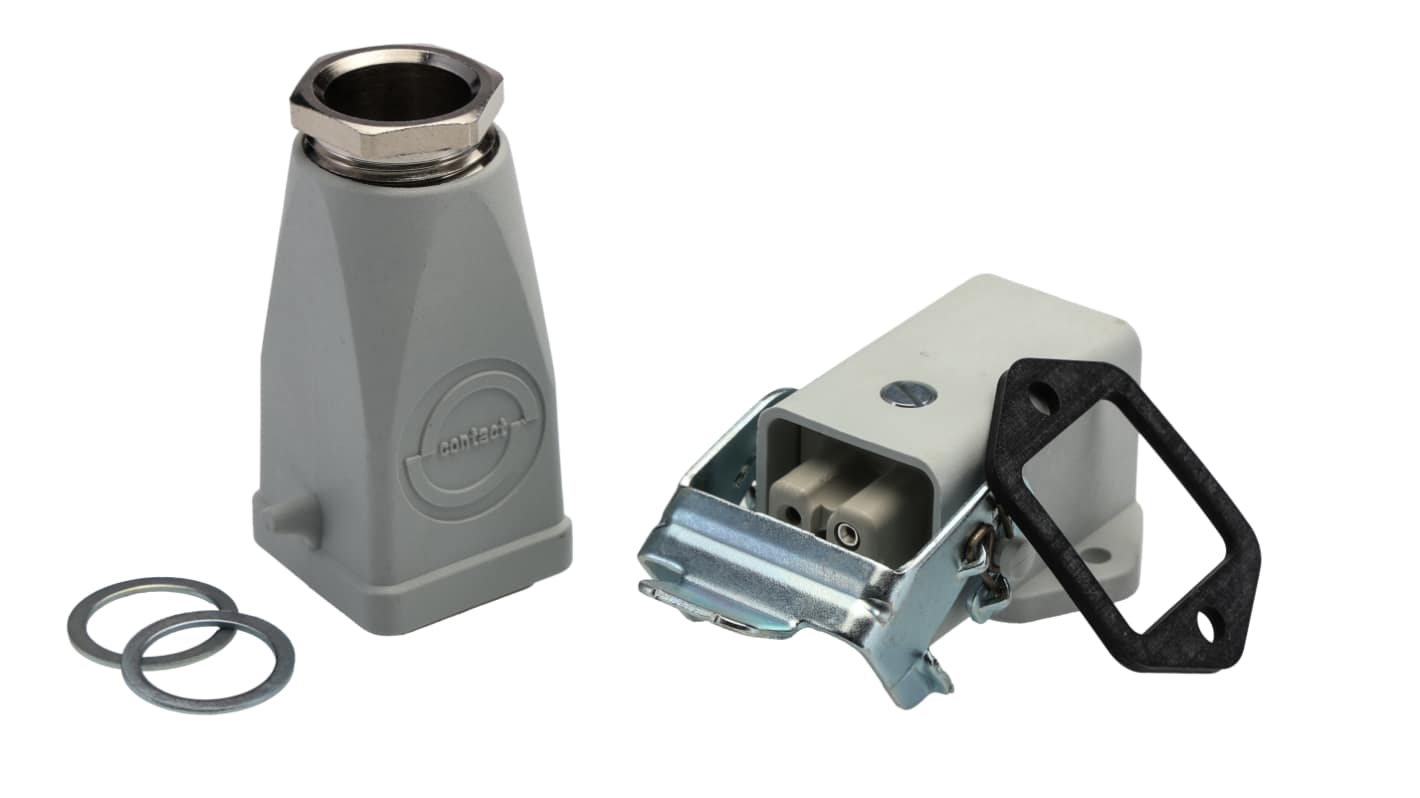

EPIC Connector Set, 3 Way, 10A, Female to Male, H-A, 600 V
- RS Stock No.:
- 396-2096
- Mfr. Part No.:
- 10420000+10421000+10423000+194
- Brand:
- EPIC
Bulk discount available
Subtotal (1 unit)*
£27.46
(exc. VAT)
£32.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £27.46 |
| 10 - 24 | £26.36 |
| 25 - 49 | £25.23 |
| 50 + | £24.16 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£24.03
(exc. VAT)
£28.84
(inc. VAT)
- RS Stock No.:
- 396-2096
- Mfr. Part No.:
- 10420000+10421000+10423000+194
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPIC | |
| Number of Contacts | 3 | |
| Current Rating | 10A | |
| Gender | Female to Male | |
| Series | H-A | |
| Type | Connector Set | |
| Voltage Rating | 600 V | |
| Thread Size | M20 | |
| Pole Format | 3 + PE | |
| Number of Rows | 2 | |
| IP Rating | IP65 | |
| Body Orientation | Side Entry | |
| Termination Method | Screw | |
| Range | EPIC | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand EPIC | ||
Number of Contacts 3 | ||
Current Rating 10A | ||
Gender Female to Male | ||
Series H-A | ||
Type Connector Set | ||
Voltage Rating 600 V | ||
Thread Size M20 | ||
Pole Format 3 + PE | ||
Number of Rows 2 | ||
IP Rating IP65 | ||
Body Orientation Side Entry | ||
Termination Method Screw | ||
Range EPIC | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
- H-A Panel Mount Kits Data Sheet
- EPIC DA-VINCI H-A Anbaugehäuse / Panel mount base / Embase encastrée & Sockelgehäuse / Surface mount base / Embase en saillie
- EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot
- EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications
- EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications
- Instruction Sheet - EPIC H-A 3 Series
- COO (Country of Origin):
- DE
EPIC H-A Series Heavy Duty Power Connector, 3 Contacts, 10A Current Rating - 10420000+10421000+10423000+194
This EPIC H-A series heavy-duty power connector is engineered for robust electrical connections with a voltage rating of 600V. It features an IP65 rating, providing effective protection against dust and water ingress, making it ideal for industrial and outdoor environments. The connector set includes three contacts in a female-to-male configuration, designed for versatile applications.
Features & Benefits
• High current capacity ensures stable power delivery
• Screw terminal connectors simplify installation
• Copper alloy contacts enhance conductivity
• Dual-row design improves connection strength
• Side entry orientation supports effective cable management
• Screw terminal connectors simplify installation
• Copper alloy contacts enhance conductivity
• Dual-row design improves connection strength
• Side entry orientation supports effective cable management
Applications
• Industrial automation systems
• Electrical distribution panels
• Mechanical equipment connections
• Outdoor electrical installations
• Electrical distribution panels
• Mechanical equipment connections
• Outdoor electrical installations
Will it support high current loads?
Yes, it supports a current rating of 10A.
Is it compatible with various cable sizes?
Yes, the screw terminal connectors allow for flexibility.
Approvals
UL listed; CSA certified; SEV
Plastic Plug & Socket Kits (10A)
H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Dimensions: 3 and 4-way
Dimensions: 10 and 16 way
Dimensions: 32//48 way - gland size PG29
