EPIC Connector Set, 16 Way, 16A, Female to Male, H-BE, 440 V
- RS Stock No.:
- 396-1526
- Mfr. Part No.:
- 10072000+10194000+10195000+190
- Brand:
- EPIC
Bulk discount available
Subtotal (1 unit)*
£47.43
(exc. VAT)
£56.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 74 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 90 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £47.43 |
| 10 - 24 | £45.54 |
| 25 - 49 | £43.63 |
| 50 + | £41.74 |
*price indicative
- RS Stock No.:
- 396-1526
- Mfr. Part No.:
- 10072000+10194000+10195000+190
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPIC | |
| Number of Contacts | 16 | |
| Current Rating | 16A | |
| Gender | Female to Male | |
| Series | H-BE | |
| Type | Connector Set | |
| Voltage Rating | 440 V | |
| Thread Size | M25 | |
| IP Rating | IP65 | |
| Body Orientation | Side Entry | |
| Termination Method | Screw | |
| Contact Plating | Hard Silver | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand EPIC | ||
Number of Contacts 16 | ||
Current Rating 16A | ||
Gender Female to Male | ||
Series H-BE | ||
Type Connector Set | ||
Voltage Rating 440 V | ||
Thread Size M25 | ||
IP Rating IP65 | ||
Body Orientation Side Entry | ||
Termination Method Screw | ||
Contact Plating Hard Silver | ||
Contact Material Copper Alloy | ||
- EPIC H-BE Connector Kit Data Sheet
- EPIC DA-VINCI H-B Tüllengehäuse / Hood / Capot
- EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications
- EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact
- Datasheet - 10072000
- Datasheet - EPIC H-BE 16 SS / H-BE 16 BS
- Instruction Sheet - EPIC H-B Panel Mount Base
- Instruction Sheet - EPIC H-BE 6-48 SS/BS
- COO (Country of Origin):
- DE
LAPP Female to Male H-BE Connector Set, 16 Contacts, 16A Current Rating - Epic Contact Series - 10072000+10194000+10195000+190

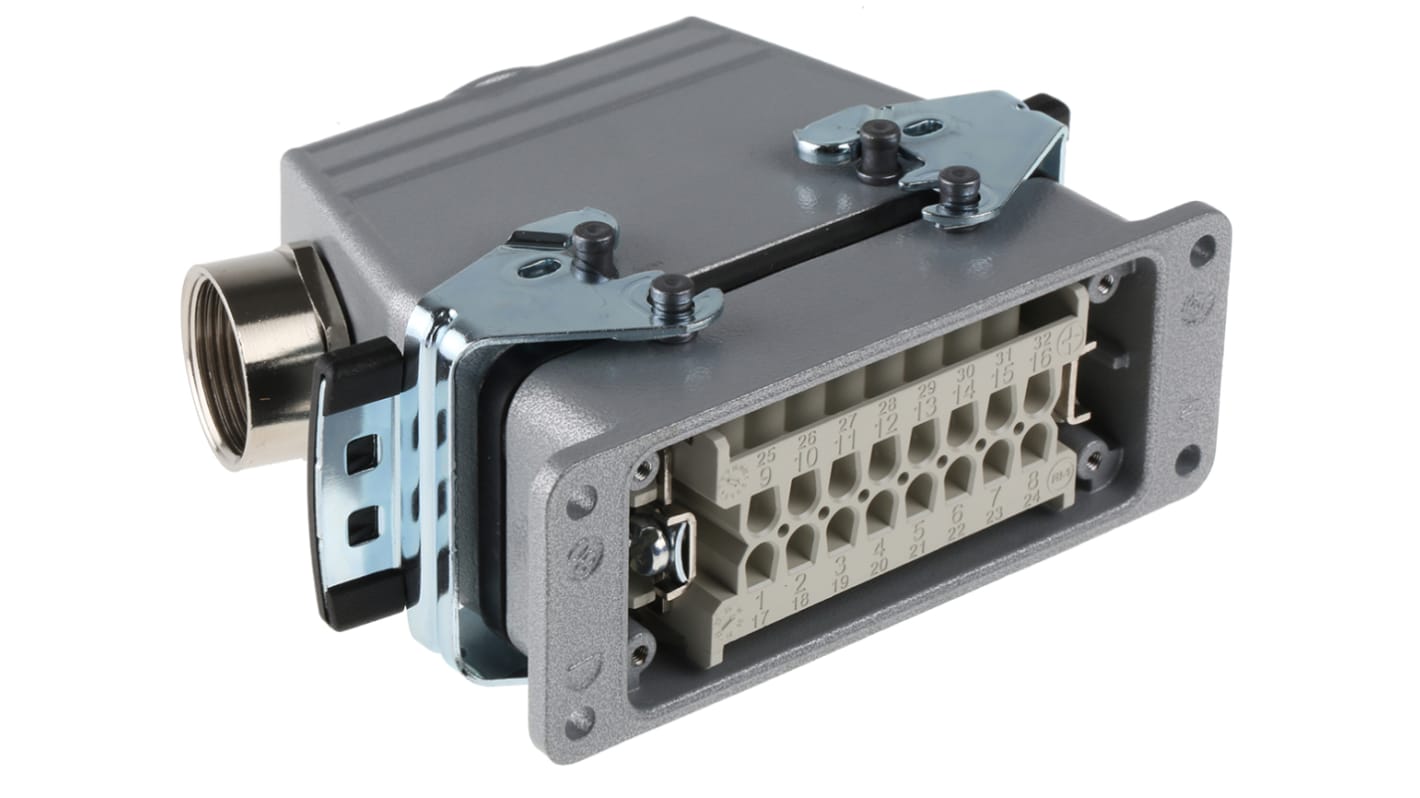

Need a connector to help power your industrial machinery? This 16-way female-to-male connector set from LAPP has a rugged aluminium hood and base to protect your connections. For resistance to corrosion, the material has a stove-enamelled finish. Double interlocking levers hold the unit's hood and base together to keep dust and dirt out. There are glass-reinforced thermoplastic inserts with a separate earth termination from the shell to provide maximum safety.
Features & Benefits
• Screw terminals with wire protection leaves help you to make a secure connection
• Hard silver-plated copper alloy contacts resist corrosion and ensure good conductivity
• Hard silver-plated copper alloy contacts resist corrosion and ensure good conductivity
Applications
• Oil and gas industry
• Food and beverage sector
• Food and beverage sector
Are the plug and socket inserts interchangeable?
Yes, they are. The inserts are interchangeable in hoods, surface-mounting and panel-mounting bodies, enabling either free socket or fixed plug arrangements.
Approvals
UL listed; CSA certified; SEV
Complete metric kits
Top or side entry hoods
Panel bases
Male & female screw termination inserts
Metric threaded cable glands
Top or side entry hoods
Panel bases
Male & female screw termination inserts
Metric threaded cable glands
