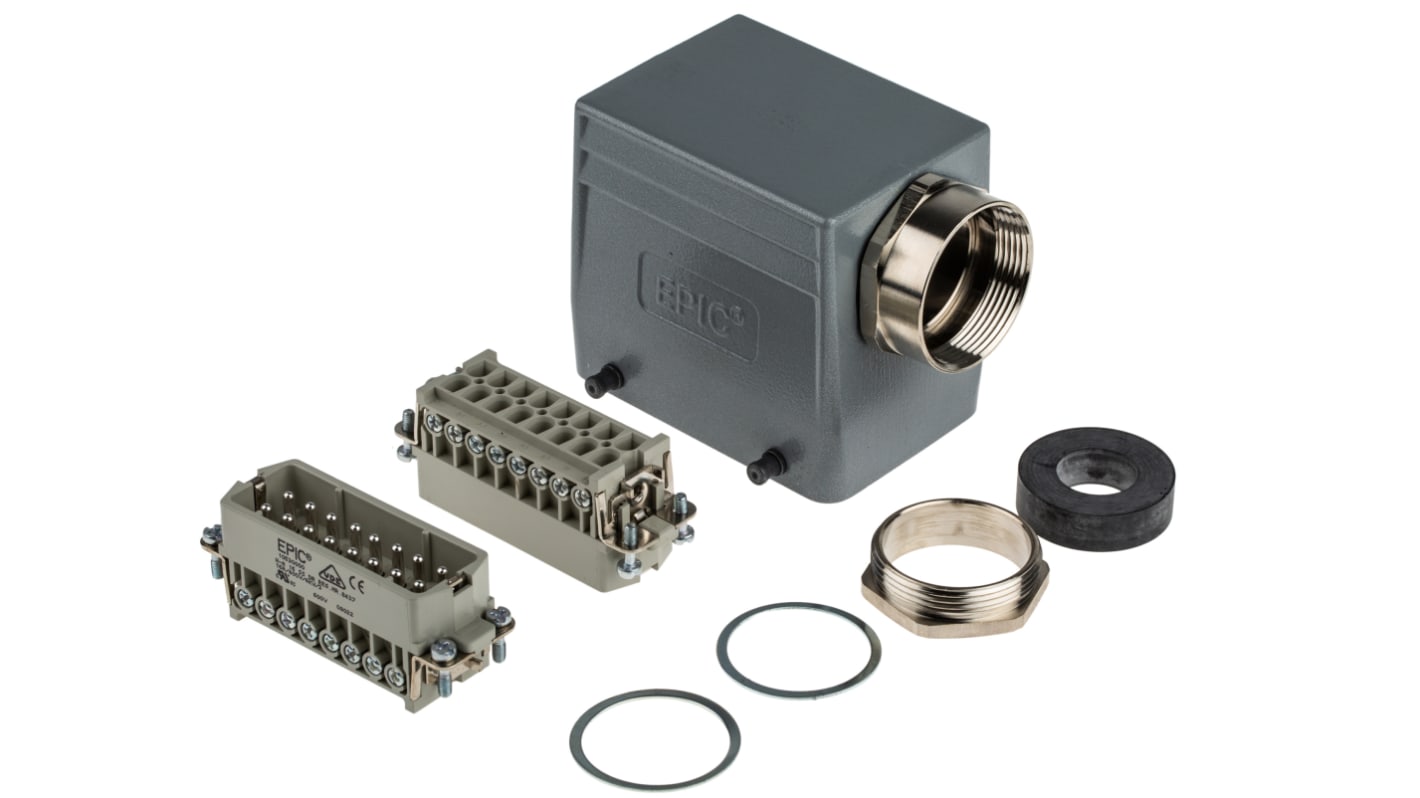

EPIC Plug Kit, 32 Way, 10A, Male, H-A, 440 V
- RS Stock No.:
- 211-4404
- Mfr. Part No.:
- 10530000+10540000+10577000+129
- Brand:
- EPIC
Save 12% when you buy 50 units
Subtotal (1 unit)*
£77.81
(exc. VAT)
£93.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £77.81 |
10 - 24 | £74.70 |
25 - 49 | £71.59 |
50 + | £68.47 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£53.95
(exc. VAT)
£64.74
(inc. VAT)
- RS Stock No.:
- 211-4404
- Mfr. Part No.:
- 10530000+10540000+10577000+129
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPIC | |
Number of Contacts | 32 | |
Current Rating | 10A | |
Gender | Male | |
Series | H-A | |
Type | Plug Kit | |
Voltage Rating | 440 V | |
Thread Size | PG29 | |
Pole Format | 32P+E | |
Number of Rows | 2 | |
Body Orientation | Side Entry | |
Termination Method | Screw | |
Contact Material | Copper Alloy | |
Contact Plating | Silver Plated | |
Select all | ||
---|---|---|
Brand EPIC | ||
Number of Contacts 32 | ||
Current Rating 10A | ||
Gender Male | ||
Series H-A | ||
Type Plug Kit | ||
Voltage Rating 440 V | ||
Thread Size PG29 | ||
Pole Format 32P+E | ||
Number of Rows 2 | ||
Body Orientation Side Entry | ||
Termination Method Screw | ||
Contact Material Copper Alloy | ||
Contact Plating Silver Plated | ||
- CSA 53004
- EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot
- EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications
- EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications
- 8079776_Catalogue_en
- Datasheet - H - B 10 TS
- Datasheet - 10530000+10540000+10577000+129
- Instruction Sheet - H-A Hood
- Instruction Sheet -10530000+10540000+10577000+129
- COO (Country of Origin):
- DE



LAPP Heavy-Duty Power Connector, IP65 Rating, Aluminium Alloy Housing - EPIC Series - 10530000+10540000+10577000+129
Scratching your head over cables that need to plug in at 90°? This heavy-duty power connector from LAPP solves the problem. A cable entry point on the side means you can angle your connection without bending wires. The housing is made from aluminium alloy, to fend off corrosion in damp industrial settings. To keep contaminants at bay, nitrile rubber seals close off the connection points.
Features & Benefits
• Wide operating temperature range between -40°C and +100°C for use in extreme environments
• Side bolts give you the option to add levers for versatility
• Flame-retardant properties for workplace safety
• IP65 rating indicates it's dust-tight and resistant to water jets from any angle
• Side bolts give you the option to add levers for versatility
• Flame-retardant properties for workplace safety
• IP65 rating indicates it's dust-tight and resistant to water jets from any angle
Applications
• Manufacturing equipment
• Process control
• Railway industry
• Process control
• Railway industry
How many contacts does this heavy-duty power connector have?
The unit has 32 contacts made from silver-plated copper to boost durability.
Approvals
UL listed; CSA certified; SEV
Metal Plug Kits
Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Dimensions: 3 and 4-way
H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.
Dimensions: 10 and 16 way
Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry
Dimensions: 32//48 way - gland size PG29
Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
