Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EPIC
	Product Type	Heavy Duty Power Connector
	Kit Contents	Top Entry Hood, Plug Insert, Cable Gland
	Series	H-BE
	Standards/Approvals	No
	Thread Size	PG13.5
	Current Rating	16A
	Number of Contacts	6

	Select all
	Brand EPIC
	Product Type Heavy Duty Power Connector
	Kit Contents Top Entry Hood, Plug Insert, Cable Gland
	Series H-BE
	Standards/Approvals No
	Thread Size PG13.5
	Current Rating 16A
	Number of Contacts 6

COO (Country of Origin):: DE

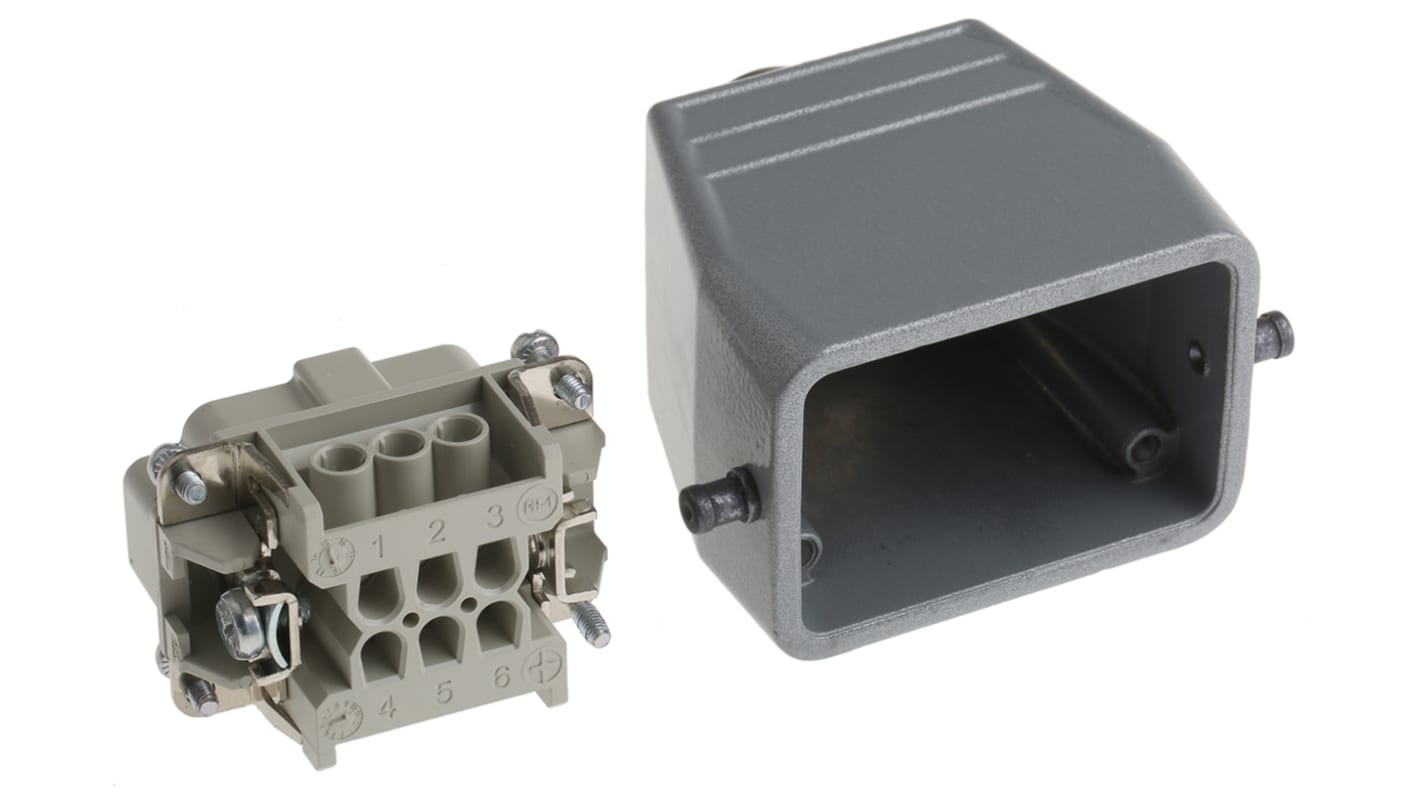

LAPP H-BE Series Heavy Duty Power Connector, For High Voltage Use - 10011000+10190000+12954300

This heavy-duty power connector is a rectangular industrial connector designed for demanding factory automation and machinery power distribution. Supplied as a kit it comprises a top-entry hood, a plug insert and a cable gland, providing a complete solution for secure cable-to-equipment power interfaces. The product is part of a proven connector family by LAPP and is intended for robust electrical installations where mechanical handling and reliable mating are required.

Features & Benefits

• Rated for up to 16A at 500V providing stable power delivery
• Top-entry hood allows straightforward cable routing and access
• Plug insert supports secure electrical contacts and easy mating
• Supplied cable gland ensures sealed cable retention and strain relief

Applications

• Suitable for industrial automation control cabinets and drives
• Ideal for power feeds to production machinery and motors
• Used with factory-floor power distribution assemblies
• Can be used for panel-to-panel power connections in plants

What comes included to facilitate installation?

The kit includes a top-entry hood for cable access, a plug insert for the electrical connection, and a cable gland for clamping and sealing conductors.

How does the connector assist with cable management?

The top-entry hood directs cables into the housing and, combined with the gland, secures conductors to reduce movement and protect terminations from mechanical stress.

How is the connector positioned within a modular connector system?

It is a rectangular insert type intended for installation in compatible housings used across modular rectangular connector ranges, enabling modular assembly configurations.

Approvals

UL listed, CSA certified, SEV

EPIC kit contents: Top Entry Hood, Plug Insert, Cable Gland, H-BE, Heavy Duty Power Connector, 6 Way, 16A
