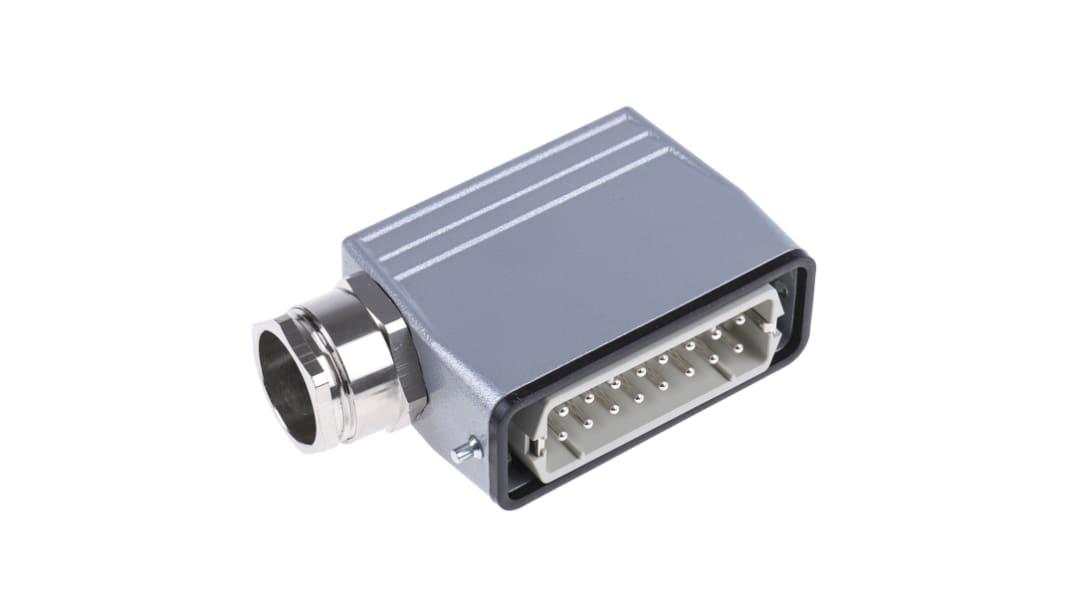

EPIC Coupler Kit, 16 Way, 16A, Male, H-A, 600 V
- RS Stock No.:
- 445-655
- Mfr. Part No.:
- 10530000+10564500+12954500
- Brand:
- EPIC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 445-655
- Mfr. Part No.:
- 10530000+10564500+12954500
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPIC | |
Number of Contacts | 16 | |
Current Rating | 16A | |
Gender | Male | |
Series | H-A | |
Type | Coupler Kit | |
Voltage Rating | 600 V | |
Thread Size | PG21 | |
Pole Format | 16P+E | |
Number of Rows | 2 | |
IP Rating | IP65 | |
Body Orientation | Side Entry | |
Termination Method | Screw | |
Range | EPIC | |
Contact Material | Copper Alloy | |
Contact Plating | Silver | |
Select all | ||
---|---|---|
Brand EPIC | ||
Number of Contacts 16 | ||
Current Rating 16A | ||
Gender Male | ||
Series H-A | ||
Type Coupler Kit | ||
Voltage Rating 600 V | ||
Thread Size PG21 | ||
Pole Format 16P+E | ||
Number of Rows 2 | ||
IP Rating IP65 | ||
Body Orientation Side Entry | ||
Termination Method Screw | ||
Range EPIC | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
- UL E75770
- CSA 53004
- EPIC DA-VINCI H-A Tüllengehäuse / Hood / Capot
- EPIC DA-VINCI H-A Gehäuse / Housing / Boitiers - General Specifications
- EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications
- EPIC Connector Accessories
- Instruction Sheet - EPIC H-A 3 Series
- COO (Country of Origin):
- DE



EPIC Heavy Duty Power Connector, 16 Contacts, 10A Current Rating - 10530000+10564500+12954500
This H-A series connector features an IP65 rating for protection against dust and water ingress. It has silver contact plating for enhanced conductivity and supports a current rating of 16A, suitable for demanding power applications.
Features & Benefits
• 16A power rating for high current applications
• 600V electrical rating
• IP65 rating for dust and water protection
• PG21 thread size for secure cable connections
• Screw termination for easy installation
• Copper alloy construction for enhanced conductivity and durability
• 600V electrical rating
• IP65 rating for dust and water protection
• PG21 thread size for secure cable connections
• Screw termination for easy installation
• Copper alloy construction for enhanced conductivity and durability
Applications
• Connecting equipment in industrial environments
• Outdoor installations requiring weather resistance
• Automation systems and control panels
• Mechanical systems needing high durability
• Machinery requiring consistent electrical connectivity
• Outdoor installations requiring weather resistance
• Automation systems and control panels
• Mechanical systems needing high durability
• Machinery requiring consistent electrical connectivity
What is the maximum ambient temperature for this product?
The maximum ambient air temperature is +65°C.
What material is used for the contact?
The contacts are made from copper alloy.
Metal Plug Kits
Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Dimensions: 3 and 4-way
H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.
Dimensions: 10 and 16 way
Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry
Dimensions: 32//48 way - gland size PG29
Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
