EPIC Connector Set, 40 Way, 10A, Female, H-D, 250 V
- RS Stock No.:
- 408-230
- Mfr. Part No.:
- 10074000+11266200+12954500
- Brand:
- EPIC

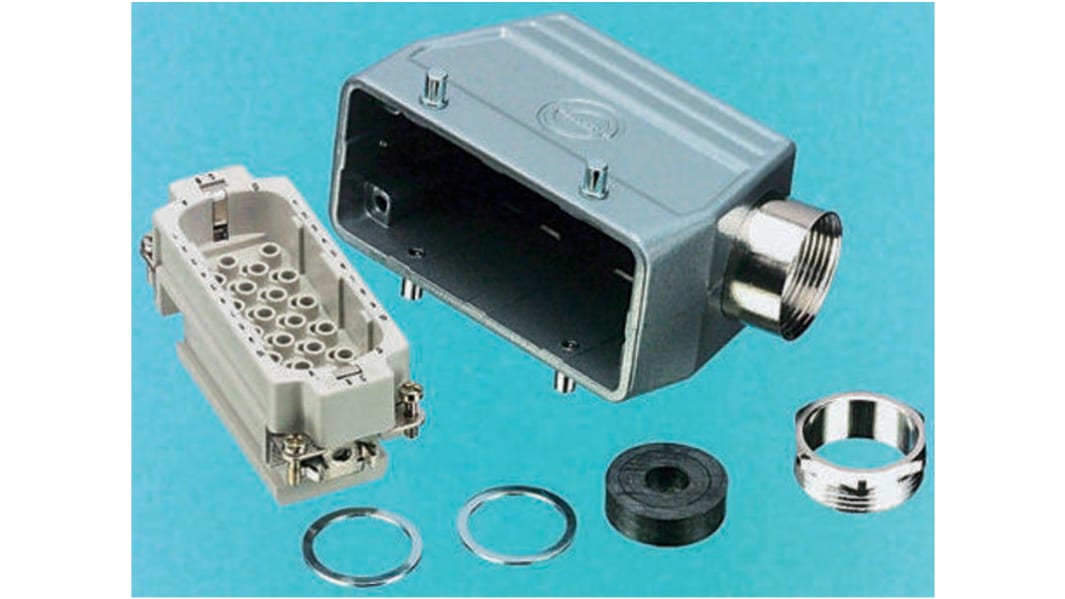

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£39.56
(exc. VAT)
£47.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £39.56 |
| 10 - 24 | £37.99 |
| 25 - 49 | £36.40 |
| 50 + | £34.81 |
*price indicative
- RS Stock No.:
- 408-230
- Mfr. Part No.:
- 10074000+11266200+12954500
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPIC | |
| Number of Contacts | 40 | |
| Current Rating | 10A | |
| Gender | Female | |
| Series | H-D | |
| Type | Connector Set | |
| Voltage Rating | 250 V | |
| Thread Size | PG21 | |
| Pole Format | 40P+E | |
Select all | ||
|---|---|---|
Brand EPIC | ||
Number of Contacts 40 | ||
Current Rating 10A | ||
Gender Female | ||
Series H-D | ||
Type Connector Set | ||
Voltage Rating 250 V | ||
Thread Size PG21 | ||
Pole Format 40P+E | ||
- COO (Country of Origin):
- DE
H-D 40 and 64 Way Assembled Plugs and Sockets
Crimp termination
Metal Body
Metal Body
Standards
VDE 0110//72, 0110b, 79, VDE 0627//86
Warning
Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.
Approvals
SEV, UL, CSA
H-D & H-DD
Assembled connectors are type tested to 10A 250V a.c. and include the following features:
High density contact loading gives more power and control connections in smaller shell sizes
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells
