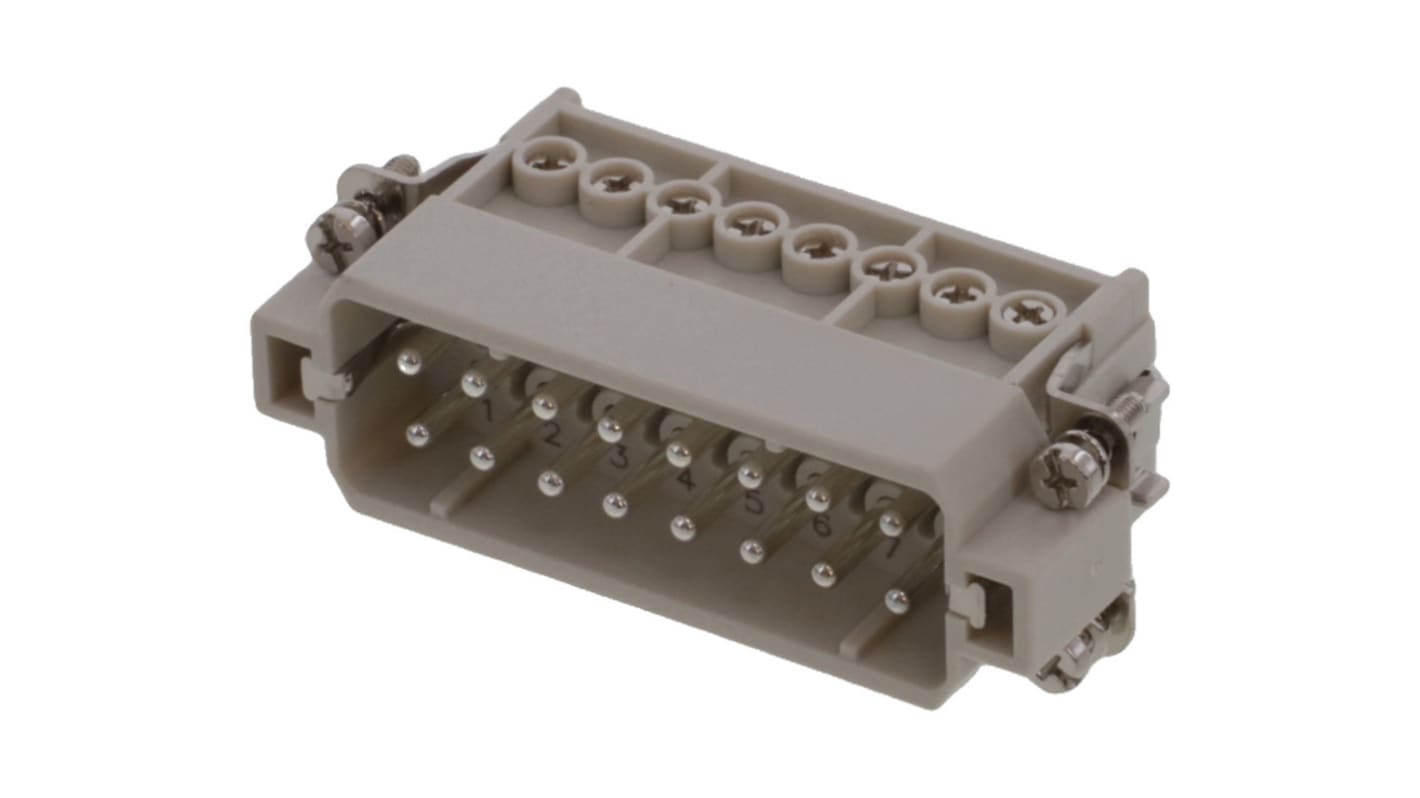

Molex Heavy Duty Power Connector Module, 16A, Male, 93601 Series, 16 Contacts
- RS Stock No.:
- 250-1918
- Mfr. Part No.:
- 936010147
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£17.35
(exc. VAT)
£20.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 47 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £17.35 |
| 10 + | £16.79 |
*price indicative
- RS Stock No.:
- 250-1918
- Mfr. Part No.:
- 936010147
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Current Rating | 16A | |
| Gender | Male | |
| Series | 93601 | |
| Type | Screw Terminal Insert | |
| For Use With | Electronic Machinery | |
| Number of Contacts | 16 | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Molex | ||
Current Rating 16A | ||
Gender Male | ||
Series 93601 | ||
Type Screw Terminal Insert | ||
For Use With Electronic Machinery | ||
Number of Contacts 16 | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 250V Voltage Rating - 936010147
This heavy-duty power connector module is designed specifically for industrial applications. The screw terminal insert accommodates a maximum current of 16A and supports a voltage rating of up to 250V. With a robust construction, it features 16 poles and provides reliable connectivity for electronic machinery, ensuring seamless performance in demanding environments.
Features & Benefits
• Male insert design enhances robust electrical connections
• 16 silver-plated contacts improve conductivity and durability
• Rated for a maximum current of 16A for high-power applications
• Compatible with wire sizes from 0.5 to 2.5mm² for versatility
• Straight body orientation simplifies installation in tight spaces
• Polarised design ensures correct mating with compatible connectors
• 16 silver-plated contacts improve conductivity and durability
• Rated for a maximum current of 16A for high-power applications
• Compatible with wire sizes from 0.5 to 2.5mm² for versatility
• Straight body orientation simplifies installation in tight spaces
• Polarised design ensures correct mating with compatible connectors
Applications
• Designed for use with electronic machinery connectors
• Ideal for high-current power connections in industrial settings
• Used with size 16A «66x16» hoods and housings
• Commonly utilised in automation and mechanical
• Ideal for high-current power connections in industrial settings
• Used with size 16A «66x16» hoods and housings
• Commonly utilised in automation and mechanical
What is the durability rating of this connector module?
This connector module supports up to 500 mating cycles, ensuring an extended service life in various applications.
How does the connector handle different wire sizes?
It accommodates wire sizes from 0.5mm² to 2.5mm², making it versatile in different setups.
What materials are used in the construction of the contacts?
The contacts are made from copper alloy with silver plating, which enhances conductivity while ensuring corrosion resistance.
What are the operating temperature ranges for this connector?
The connector can function effectively within temperatures ranging from -40°C to +125°C, suitable for diverse environments.
