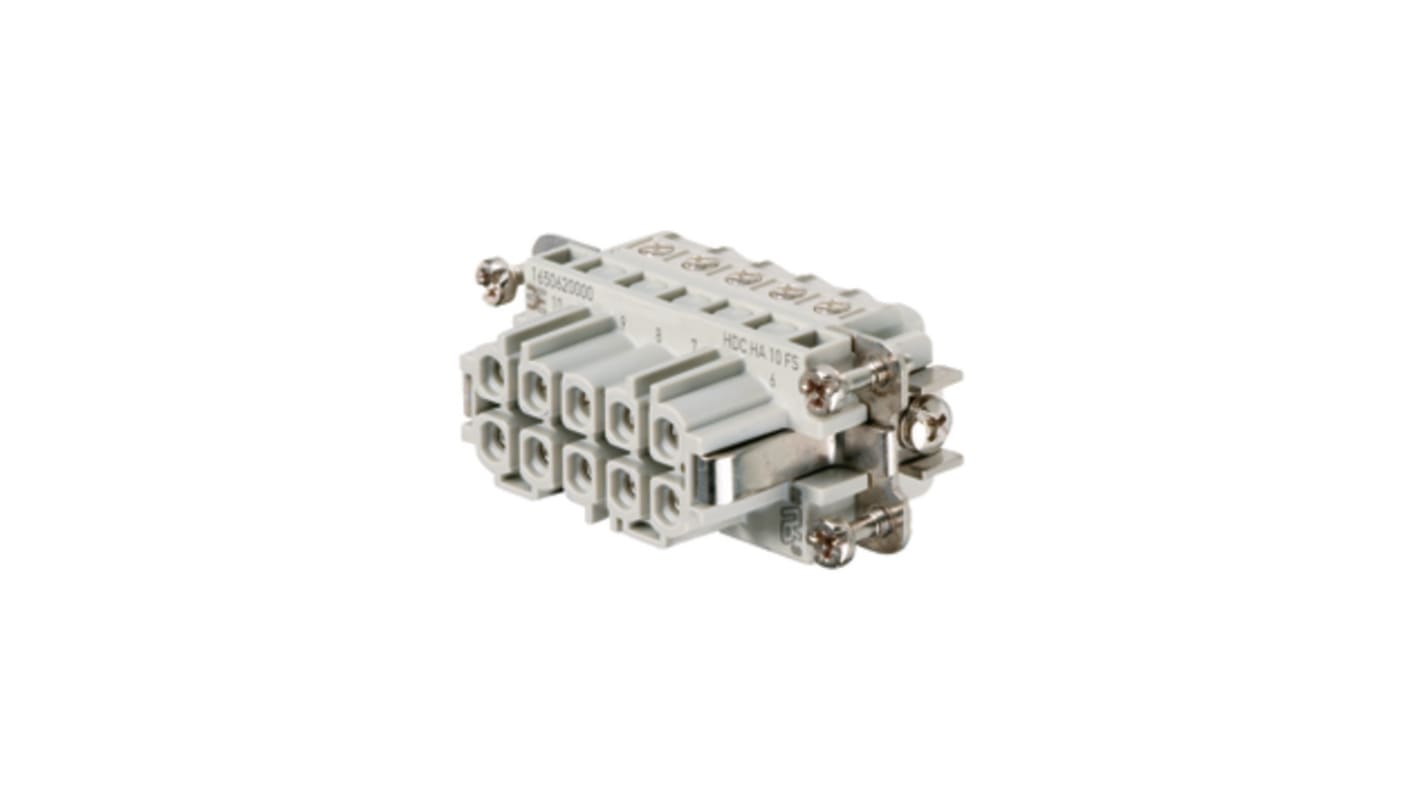

Weidmüller Contact Insert, 16A, H-A Series Female, 10 Contacts
- RS Stock No.:
- 249-3447
- Mfr. Part No.:
- 1650620000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£9.54
(exc. VAT)
£11.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 13 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.54 |
*price indicative
- RS Stock No.:
- 249-3447
- Mfr. Part No.:
- 1650620000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Contact Insert | |
| Current Rating | 16A | |
| Series | H-A | |
| Sub Type | Connector Insert | |
| Connector Gender | Female | |
| Pole Format | 10 | |
| Number of Rows | 2 | |
| Voltage | 250, 600V ac | |
| Mount Type | Cable | |
| IP Rating | IP65 | |
| Standards/Approvals | RoHS | |
| Manufacturer Size Code | Size 2 | |
| Number of Contacts | 10 | |
| Orientation | Straight | |
| Minimum Wire Size mm² | 2mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Contact Insert | ||
Current Rating 16A | ||
Series H-A | ||
Sub Type Connector Insert | ||
Connector Gender Female | ||
Pole Format 10 | ||
Number of Rows 2 | ||
Voltage 250, 600V ac | ||
Mount Type Cable | ||
IP Rating IP65 | ||
Standards/Approvals RoHS | ||
Manufacturer Size Code Size 2 | ||
Number of Contacts 10 | ||
Orientation Straight | ||
Minimum Wire Size mm² 2mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN
The Weidmuller HA Sealed industrial connectors insert is small and slim so it can be used wherever space is limited. The wire connection level is designed as a screw element. All screw connection elements are equipped with wire protection.
Rated current is 16A
Number of poles is 10
Female Insert
