    Epic Contact H-BE Heavy Duty Power Connector Hood, 16 Contacts, M25 Thread

    Epic Contact
    RS Stock No.:
    431-5069
    Mfr. Part No.:
    19082000+71200300
    Brand:
    Epic Contact
    View this category
    2 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £8.64

    (exc. VAT)

    £10.37

    (inc. VAT)

    UnitsPer unit
    1 - 9£8.64
    10 - 24£8.29
    25 - 49£7.97
    50 +£7.59
    RS Stock No.:
    431-5069
    Mfr. Part No.:
    19082000+71200300
    Brand:
    Epic Contact

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

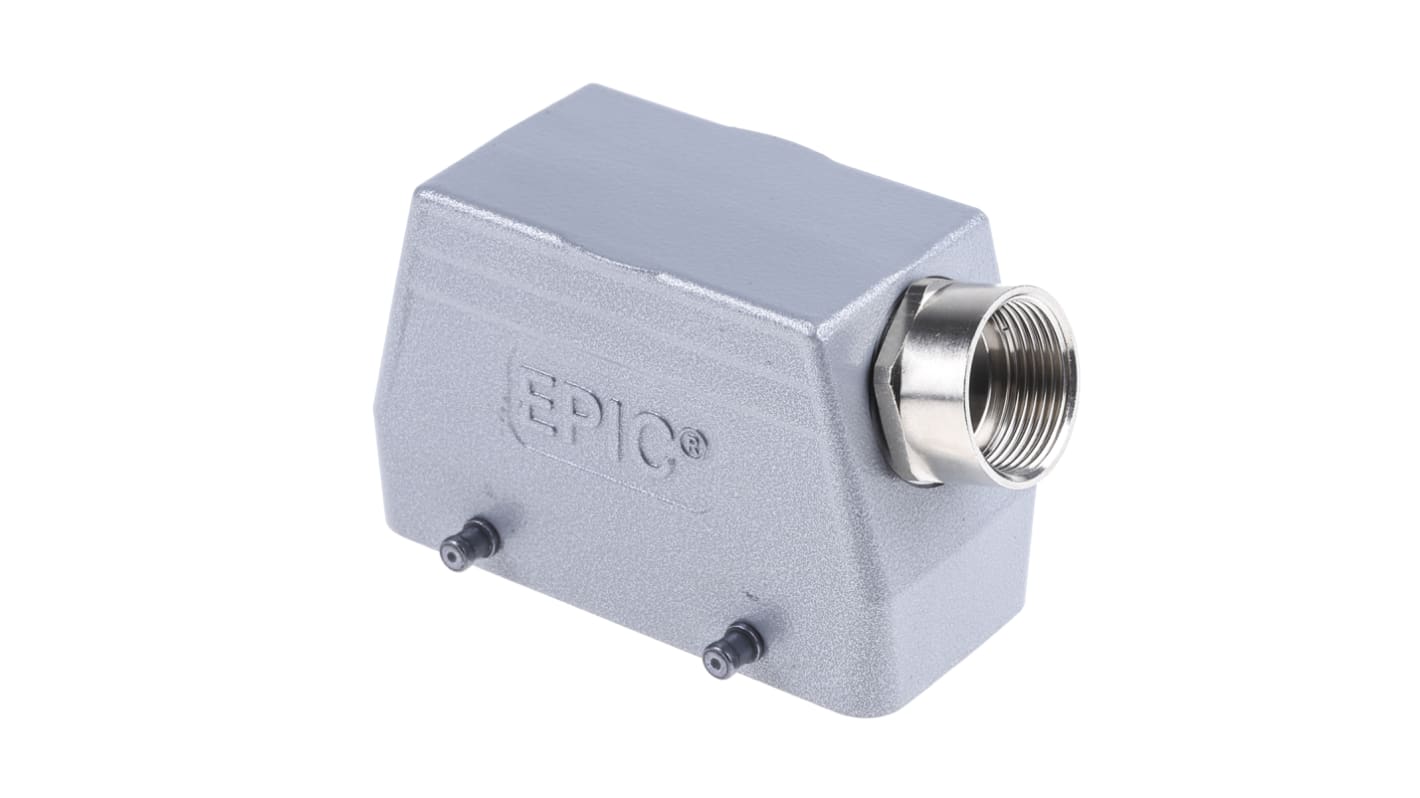

    LAPP Heavy Duty Power Connector Hood, 16A Current Rating, M25 Thread - EPIC Series - 19082000+71200300


    Shut out the elements and keep your electrical connection safe and sound with this heavy duty connector hood from LAPP. It works with EPIC H-BE inserts to complete a sturdy unit that carries a 440VAC voltage rating. Thanks to housing made from a powder-coated aluminium alloy, it stands fast against corrosion. A wide operating temperature range between -40°C and +100°C means you can rely on it in extreme settings. When installed, the hood has an IP65 rating, which means your connector is protected from dust and water damage.

    Features & Benefits


    • Side entry orientation for easy access in busy setups
    • Integrated pips ensure a secure connection, even with vibration
    • Standard M25 screw connection for wide compatibility

    Applications


    • Robotics systems
    • Manufacturing equipment
    • High-voltage electrical devices

    Does this connector hood offer strain relief?


    Yes, this hood's threaded connection acts as a cable gland to offer integrated strain relief.

    Approvals

    VDE; CSA; UL; SEV


    H-BE / H-DD Hoods & Housings


    HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.


    Aluminium alloy construction
    Metric versions also available
    High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts


    These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
    The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
    All this allows for a wide variety of commercial and industrial applications.

    Specifications

    Attribute
    Value
    SeriesH-BE
    TypeConnector Hood
    Number of Contacts16
    Thread SizeM25
    Body OrientationSide Entry
    Pole Format16P+E
    Current Rating16A
    IP RatingIP65
    Voltage Rating440 V ac
    GenderFemale, Male
