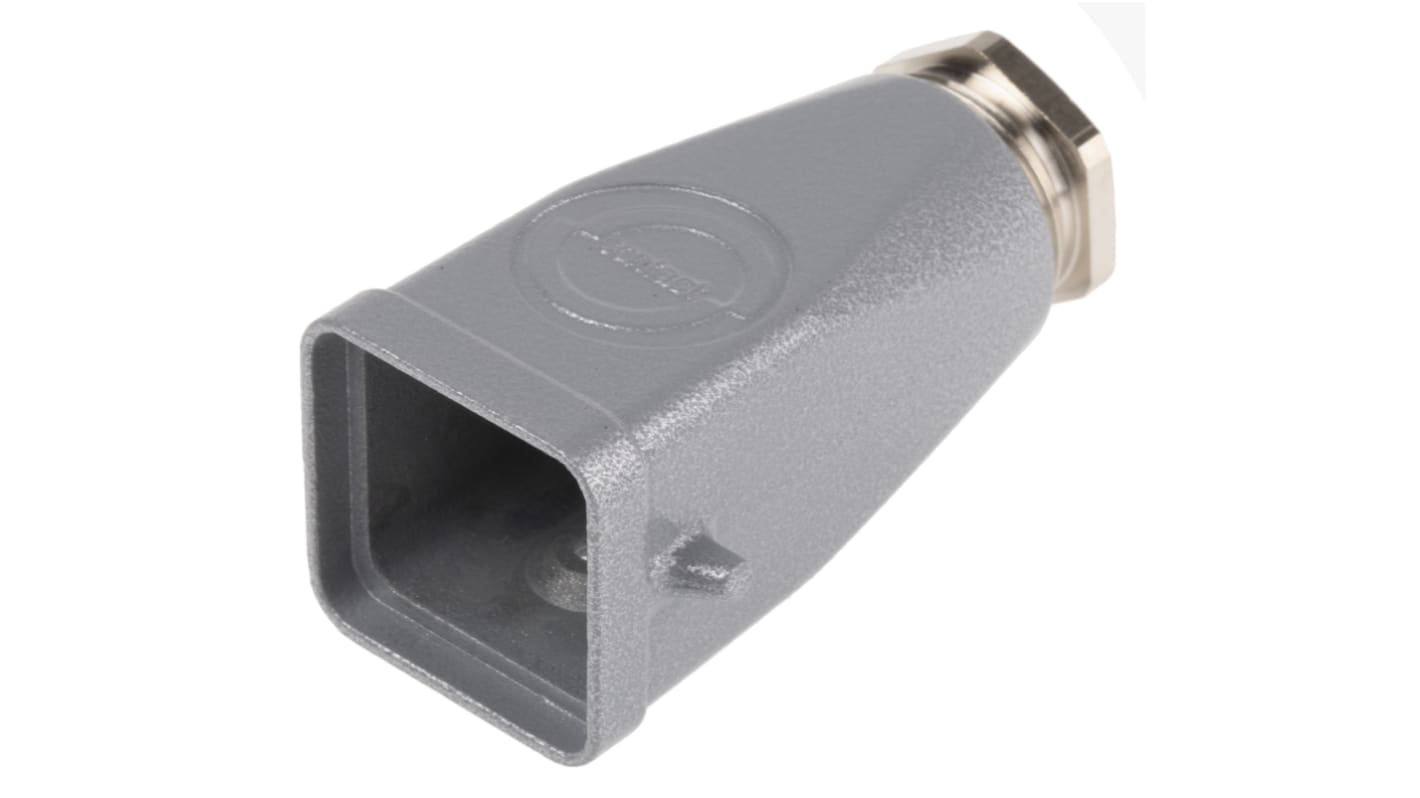

EPIC H-A Heavy Duty Power Connector Hood, M20 Thread
- RS Stock No.:
- 431-5003
- Mfr. Part No.:
- 19426500
- Brand:
- EPIC
Bulk discount available
Subtotal (1 unit)*
£5.97
(exc. VAT)
£7.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 98 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 26 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.97 |
10 - 24 | £5.76 |
25 - 49 | £5.50 |
50 + | £5.22 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£19.31
(exc. VAT)
£23.17
(inc. VAT)
- RS Stock No.:
- 431-5003
- Mfr. Part No.:
- 19426500
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPIC | |
Type | Connector Hood | |
Series | H-A | |
Thread Size | M20 | |
IP Rating | IP54 | |
Select all | ||
---|---|---|
Brand EPIC | ||
Type Connector Hood | ||
Series H-A | ||
Thread Size M20 | ||
IP Rating IP54 | ||
- COO (Country of Origin):
- DE
H-A Hoods
Individual hoods for use with H-A inserts (plugs or sockets – see stock no. 284-8359 – typical of range)




Approvals
UL listed; CSA certified; SEV
Plastic Plug and Socket Kits (10A)
Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)
Dimensions: 3 and 4 way
H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.
Dimensions: 10 and 16 way
Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry
Dimensions: 32//48 way - gland size PG29
Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
Approvals
UL listed, CSA certified, SEV
