EPIC H-BE Heavy Duty Power Connector Housing, 24 Contacts, PG29 Thread
- RS Stock No.:
- 298-5313
- Mfr. Part No.:
- 12954600+70135400
- Brand:
- EPIC

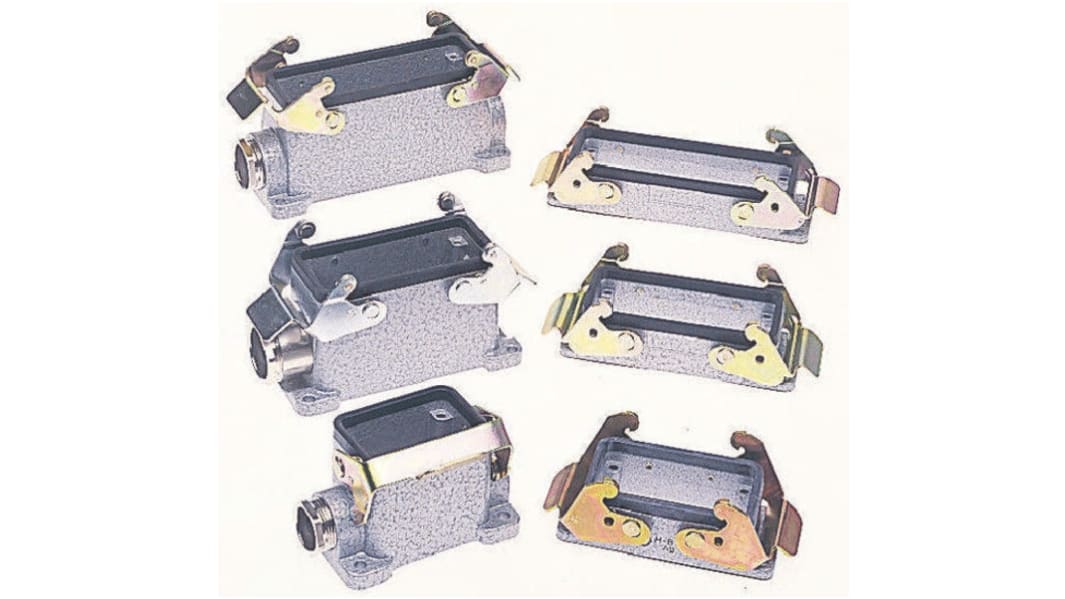

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£38.81
(exc. VAT)
£46.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 12 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £38.81 |
10 - 24 | £37.27 |
25 - 49 | £35.71 |
50 + | £34.15 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£45.79
(exc. VAT)
£54.95
(inc. VAT)
- RS Stock No.:
- 298-5313
- Mfr. Part No.:
- 12954600+70135400
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPIC | |
Series | H-BE | |
Type | Connector Housing | |
Number of Contacts | 24 | |
Thread Size | PG29 | |
Pole Format | 24P+E | |
Select all | ||
---|---|---|
Brand EPIC | ||
Series H-BE | ||
Type Connector Housing | ||
Number of Contacts 24 | ||
Thread Size PG29 | ||
Pole Format 24P+E | ||
- COO (Country of Origin):
- DE
High Construction Housing
From Contact Connectors, this high construction housing is for use with Contact Epic H-BE and H-DD connector inserts. The housings have integrated levers to connect securely to corresponding connector hood pips.


Approvals
VDE; CSA; UL; SEV
H-BE / H-DD Hoods & Housings
HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.
Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts
These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
