Molex 93601 Heavy Duty Power Connector, Bottom Entry

View this category
Bulk discount available

Subtotal (1 unit)*

£21.22

(exc. VAT)

£25.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£21.22
10 - 24£20.53
25 - 49£20.20
50 +£19.53

*price indicative

RS Stock No.:
250-2107
Distrelec Article No.:
301-25-750
Mfr. Part No.:
936013538
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

93601

Type

STD

Mounting Type

Bulkhead Mount

Size

24B

Body Orientation

Bottom Entry

IP Rating

IP66

Cable Entry Angle

Bottom

Voltage Rating

500 V

Number of Levers

2

For Use With

S-DD, S-E, S-EHV Inserts, S-EP, S-ES, S-ESHV, S-HSB, S-K, S-M, SEE, Size 24B (104x27) S-D

Contact Material

Aluminium Alloy

Series Number

93601

COO (Country of Origin):
CN

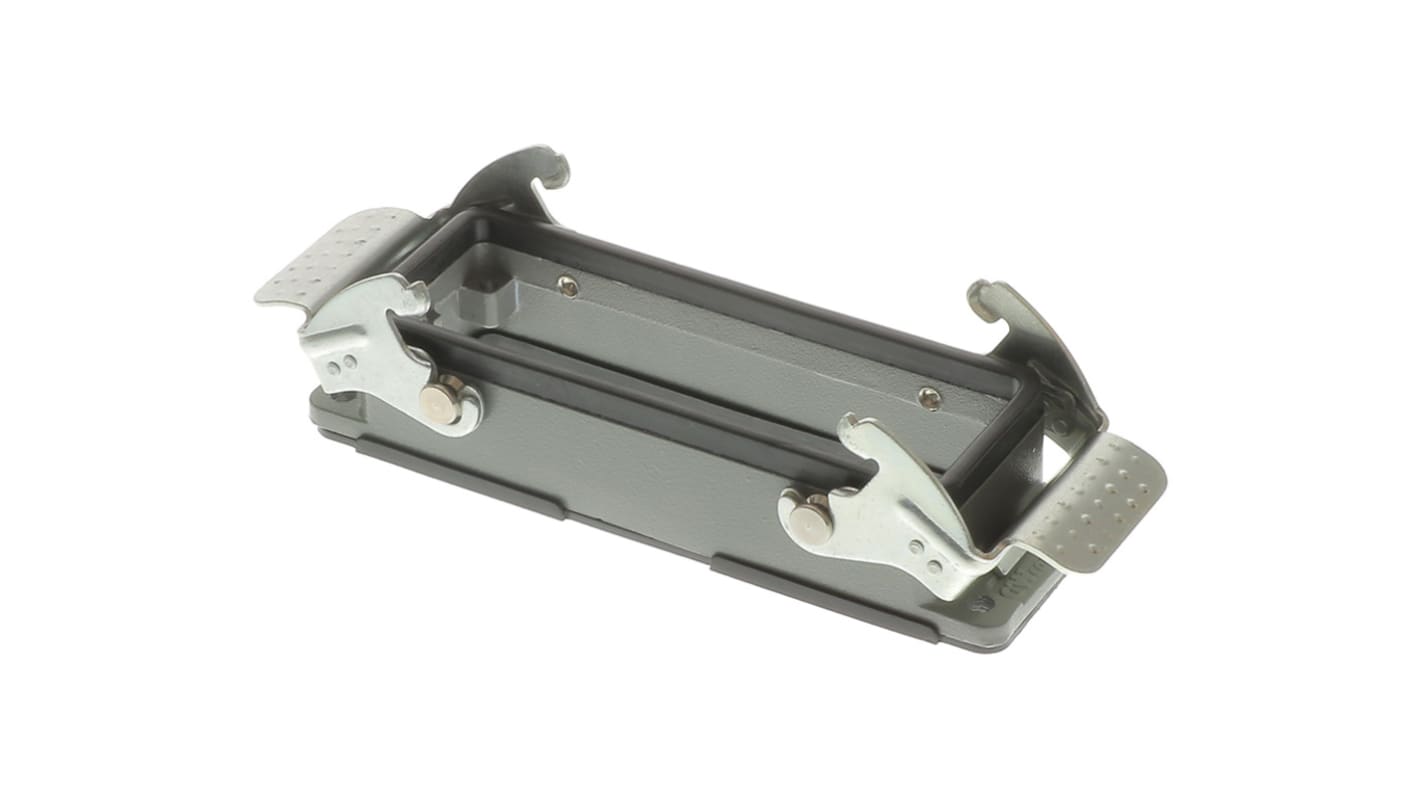

Molex 93601 Series Heavy Duty Power Connector, 500V Voltage Rating, IP66 Rating - 936013538


This heavy duty power connector is specifically designed for demanding industrial applications. It features a bulkhead mount configuration for secure installation and is crafted from die-cast aluminium. The connector's size is classified as 24B, making it suitable for various connector inserts.

Features & Benefits


• Designed for 500V maximum voltage usage
• Features dual levers for secure locking and mating
• Bulkhead mounting facilitates sturdy installation in various environments
• Compatible with multiple size 24B inserts for versatile use

Applications


• Ideal for industrial power supply systems requiring reliable connections
• Suitable for use in electrics where waterproofing is essential
• Utilised in automation systems needing robust connector solutions
• Designed for heavy machinery demanding strong performance

How does the IP66 rating enhance operability in severe conditions?


The IP66 rating provides assurance against both dust and strong jets of water, ensuring uninterrupted operation even in challenging environments, thus enhancing connectivity reliability.

Can I use this connector in high vibration applications?


Yes, the robust construction, along with the dual lever locking mechanism, makes it capable of withstanding vibrations commonly encountered in heavy machinery and industrial settings.

What materials are used in its construction?


The connector features a die-cast aluminium housing, with levers made from galvanised steel, ensuring durability and resilience in demanding conditions.
