Molex 93601 Heavy Duty Power Connector Housing, PG16 Thread, Side Entry

View this category
Bulk discount available

Subtotal (1 unit)*

£33.98

(exc. VAT)

£40.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 73 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£33.98
10 - 99£32.89
100 - 249£31.53
250 - 499£30.17
500 +£28.54

*price indicative

RS Stock No.:
250-2012
Distrelec Article No.:
302-99-693
Mfr. Part No.:
936010828
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Type

STD

Series

93601

Thread Size

PG16

Mounting Type

Surface Mount

Size

6B

Body Orientation

Side Entry

IP Rating

IP66

Cable Entry Angle

Side

Voltage Rating

500 V

For Use With

S-DD, S-E, S-EHV Inserts, S-EP, S-ES, S-ESHV, S-HSB, S-K, S-M, SEE, Size 6B (44x27) S-D

Number of Levers

1

Contact Material

Aluminium Alloy

Series Number

93601

COO (Country of Origin):
CN

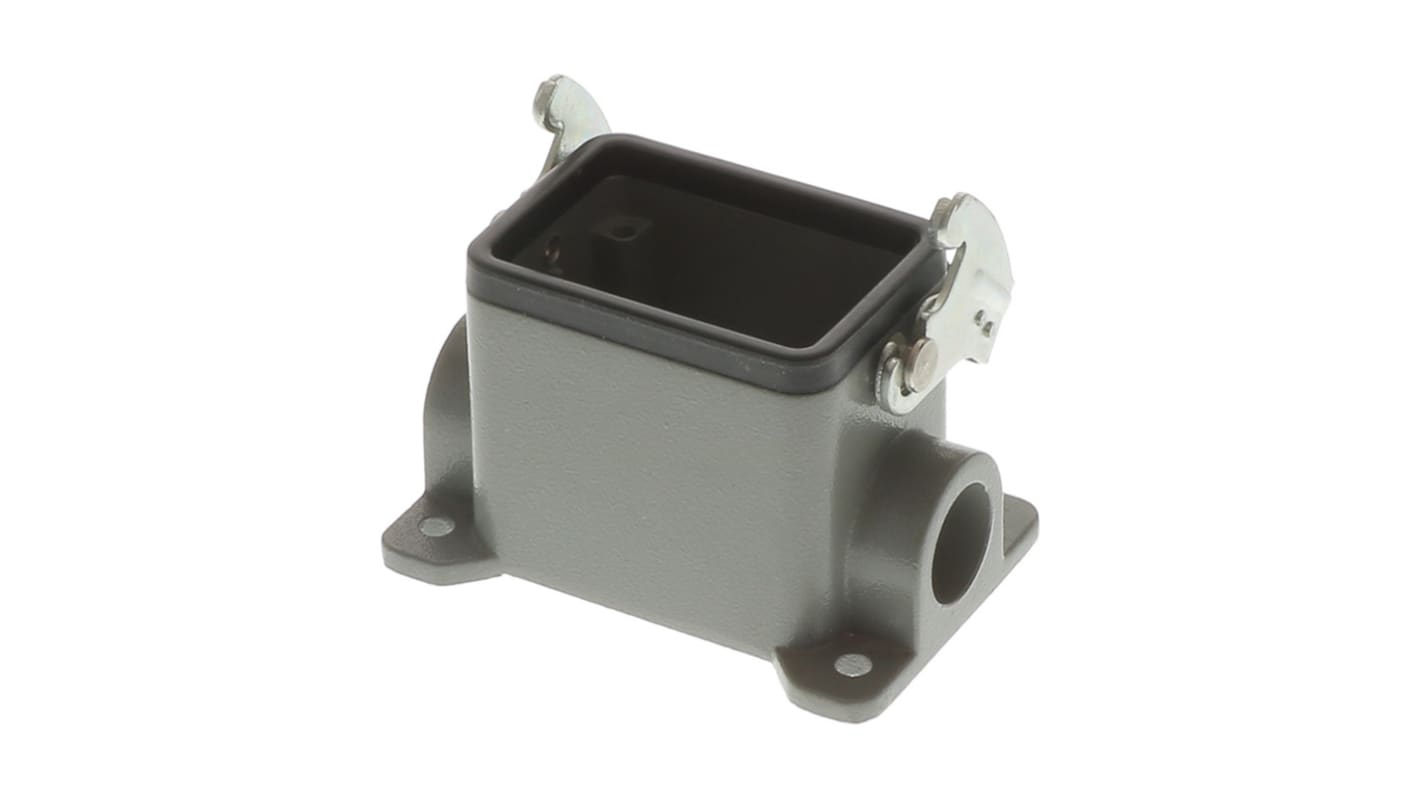

Molex 93601 Series Heavy Duty Power Connector Housing, 500V Voltage Rating, Side Entry Body Orientation - 936010828


This heavy-duty power connector housing is designed for robust applications requiring a surface mount solution. Fashioned from die-cast aluminium, this connector features a size 6B design, with dimensions of 44 x 27 mm and a PG16 thread size. It ensures maximum durability and reliability, offering superior protection with an IP66 rating, making it suitable for demanding environments.

Features & Benefits


• Single lever design facilitates simple and secure connections
• IP66 rating provides excellent resistance against dust and water
• Side-entry configuration enhances installation flexibility
• NBR gasket included to enhance sealing performance

Applications


• Used with size 6B inserts for various industrial
• Ideal for surface mounting in harsh environments
• Suitable for automation and electrical control systems
• Effective in mechanical industries for power connections
• Utilised in outdoor settings requiring robust connectivity

What materials are used in the construction of this connector housing?


The housing is made from die-cast aluminium, which provides strength and durability. The lever is crafted from galvanised steel, while the gasket is made from NBR, ensuring reliable sealing and performance.

How does the IP66 rating benefit its use in outdoor applications?


The IP66 rating ensures that the connector is fully dust-tight and protected against high-pressure water jets. This makes it suitable for outdoor environments where exposure to the elements is a concern.

Can this connector be reused with different inserts?


Yes, it is designed for use with a range of size 6B inserts, allowing for flexibility when upgrading or changing connections within the same housing.

What advantages does the single lever design offer?


The single lever mechanism allows for easy and quick connection and disconnection, thereby streamlining the installation process and improving efficiency in operations.
