Wieland Bottom BAS GUT GM Heavy Duty Power Connector Housing, 6 Contacts, M20 Thread, Side Entry Revos BASIC Range
- RS Stock No.:
- 204-2301
- Mfr. Part No.:
- 70.331.0635.0
- Brand:
- Wieland
Subtotal (1 unit)*
£22.74
(exc. VAT)
£27.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 34 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £22.74 |
*price indicative
- RS Stock No.:
- 204-2301
- Mfr. Part No.:
- 70.331.0635.0
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wieland | |
Type | Housing | |
Series | Bottom BAS GUT GM | |
Number of Contacts | 6 | |
Thread Size | M20 | |
Body Orientation | Side Entry | |
Pole Format | 6P+E | |
Current Rating | 16A | |
Range | Revos BASIC | |
Cable Entry Angle | Side | |
Number of Rows | 2 | |
Voltage Rating | 500 V | |
For Use With | Heavy Duty Power Connector | |
Select all | ||
---|---|---|
Brand Wieland | ||
Type Housing | ||
Series Bottom BAS GUT GM | ||
Number of Contacts 6 | ||
Thread Size M20 | ||
Body Orientation Side Entry | ||
Pole Format 6P+E | ||
Current Rating 16A | ||
Range Revos BASIC | ||
Cable Entry Angle Side | ||
Number of Rows 2 | ||
Voltage Rating 500 V | ||
For Use With Heavy Duty Power Connector | ||

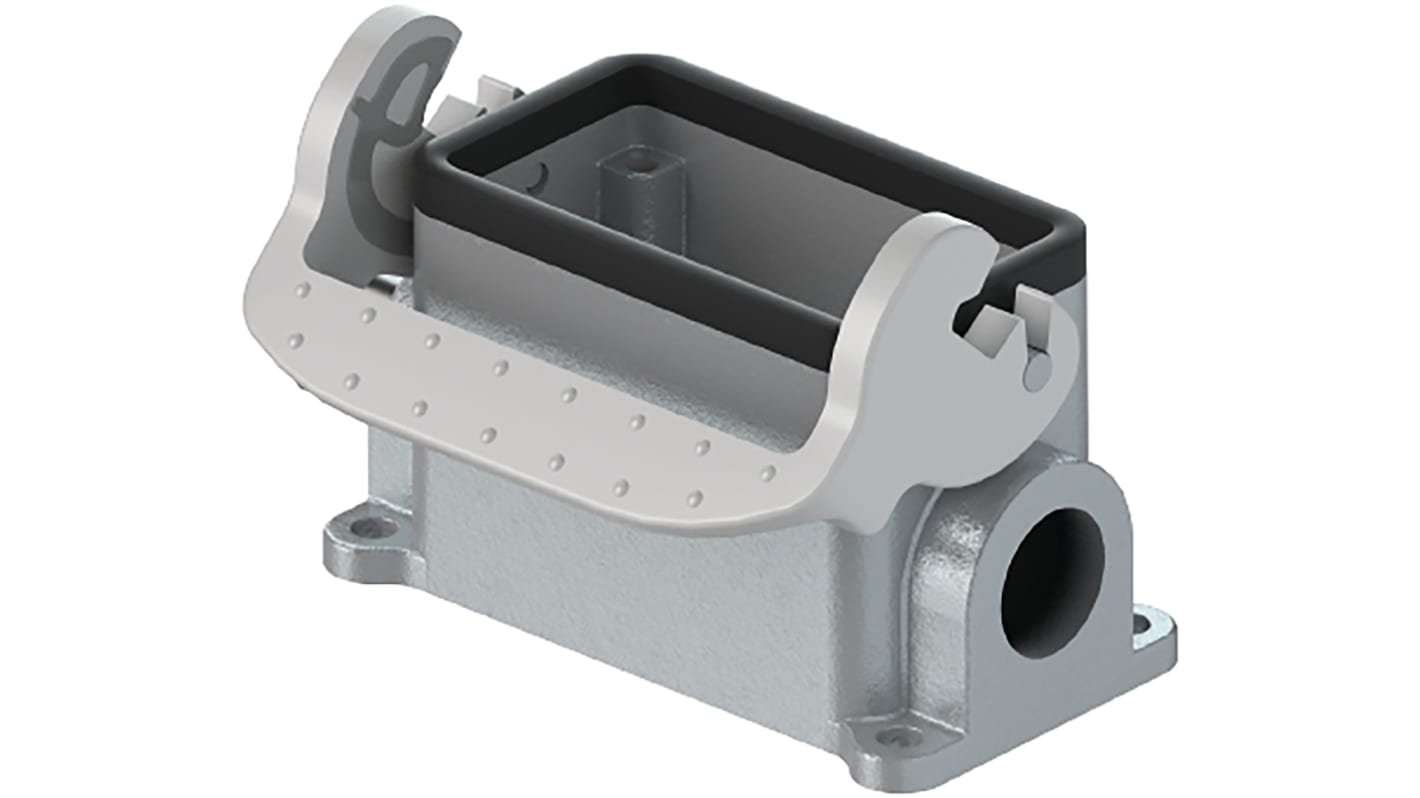

The Wieland BASIC size 6 closed-bottom base with cable gland M20, left single locking lever is available in grey colour. Housing is made up of aluminium.
It has IP54 protection class
UV resistant
Operating temperature range is from -40 °C to 120 °C
VDE approved
UV resistant
Operating temperature range is from -40 °C to 120 °C
VDE approved
