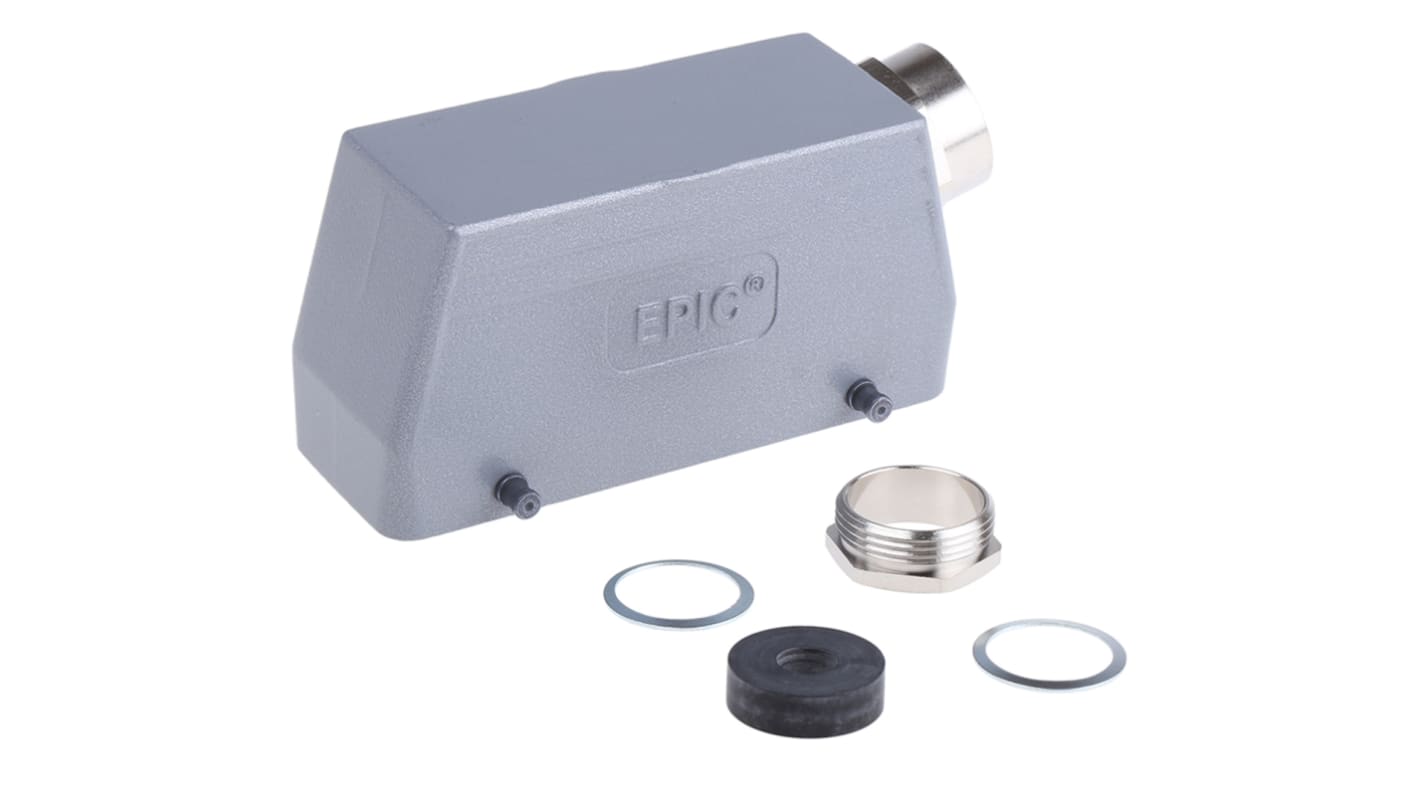

Use this heavy-duty power connector set from LAPP to achieve secure connections in demanding settings. It includes a hood and cable gland, so you only need a cable and a compatible insert for a complete solution. Double bolts on the housing let you latch connectors together to prevent them from uncoupling while your circuit is operating. As it's made of robust powder-coated aluminium alloy, you can trust the hood will resist corrosion and impacts. The cable gland limits damage to the assembly by securing everything firmly in place.

• Non-slip ridges make hood easy to disconnect
• Side-entry design helps save space in your setup
• IP65-rated cable gland with seal withstands dust and low-pressure water jets

• Plastics production
• Plant engineering
• Light and sound engineering

Yes, this set can safely withstand temperatures up to +125°C for short periods.

H-BE / H-DD Hoods & Housings

HBE connectors are type tested to 16A, 440Vac, and are available complete in kit form and as individual parts.

Aluminium alloy construction
Metric versions also available
High construction versions allow the use of bulky multicore cable and are ideally suited for use with the high density H-DD inserts

These hoods and housings will accept either plug or socket inserts from the H-BE 440Vac 16A screw termination inserts, or the H-DD 250Vac 10A high density crimp termination inserts.
The cable glands seal to IP65. Panel mount bases include a rubber gasket for sealing.
All this allows for a wide variety of commercial and industrial applications.
