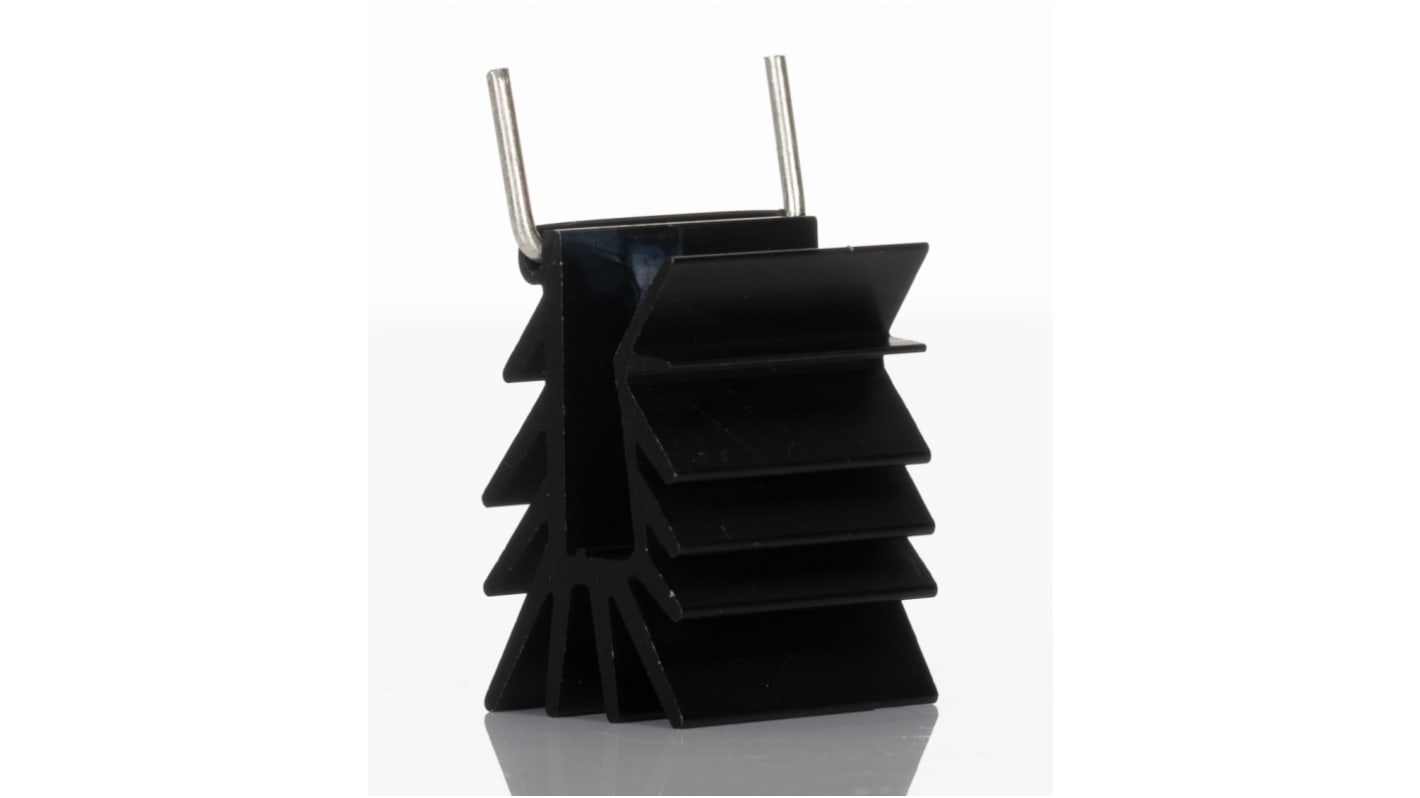

Heatsink, 11K/W, 20 x 27 x 16mm, Clip

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

T0220 Clip-On, 9°C/W, 11°C/W

It is recommended that the effectiveness of any heatsink is tested in the specific operating environment in which it will be subjected

//media.rs-online.com/t_line/L234240-01.gif
Specifications
Attribute Value
Length 20mm
Width 27mm
Height 16mm
Dimensions 20 x 27 x 16mm
Thermal Resistance 11K/W
Mounting Clip
Colour Black
Package Type TO-220
3255 In stock for FREE next working day delivery
Price Each
£ 1.54
(exc. VAT)
£ 1.85
(inc. VAT)
Units
Per unit
1 - 49
£1.54
50 - 99
£1.44
100 - 249
£1.32
250 - 499
£1.16
500 +
£1.09
