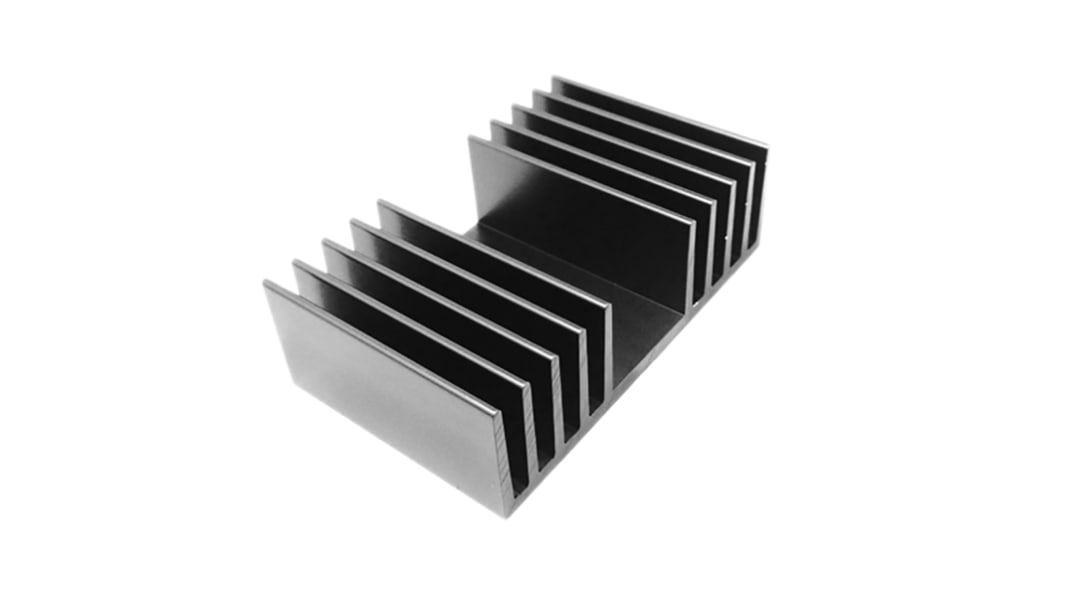

Heatsink, Universal Rectangular Alu, 1K/W, 100 x 120 x 37mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Flatback 120mm Wide x 37mm High With Channel

It is recommended that the effectiveness of any heatsink is tested in the specific operating environment in which it will be subjected

Note

Thermal resistance quoted is with fins vertical in free air. Length dimension refers to extrusion length along fins.

Specifications
Attribute Value
For Use With Universal Rectangular Alu
Length 100mm
Width 120mm
Height 37mm
Dimensions 100 x 120 x 37mm
Thermal Resistance 1K/W
Colour Black
198 In stock for FREE next working day delivery
Price Each
£ 12.76
(exc. VAT)
£ 15.31
(inc. VAT)
Units
Per unit
1 - 49
£12.76
50 - 99
£11.48
100 - 249
£10.85
250 - 499
£9.58
500 +
£8.94
