MPN

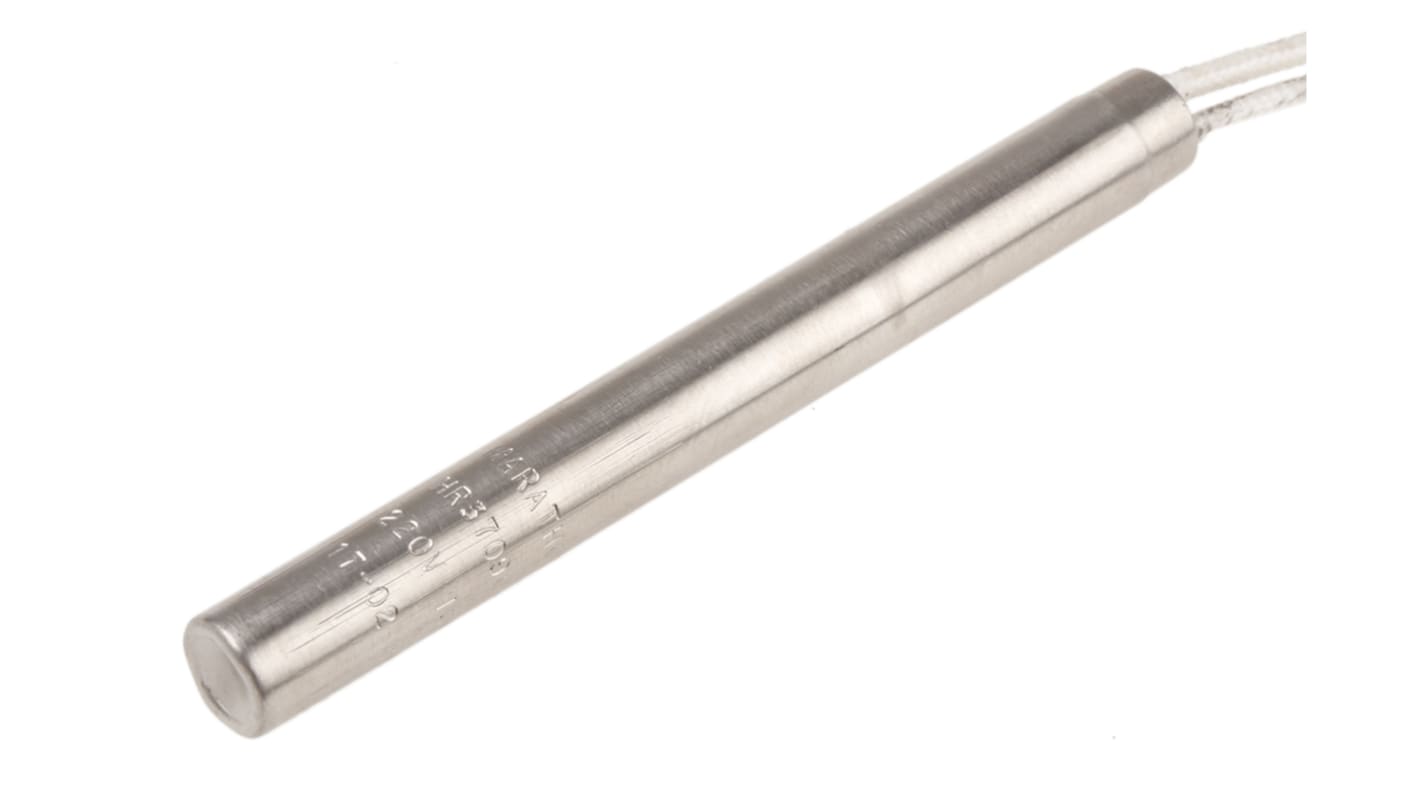

Heating Element, 3.5in, 150 W, 220 V ac


Available to back order for despatch 16/03/2021
Add to Basket

Price Each

£12.70

(exc. VAT)

£15.24

(inc. VAT)

Units

Added

RS Stock No.:
860-7040
Brand:
RS PRO
COO (Country of Origin):
IN
UnitsPer unit
1 - 4£12.70
5 - 9£12.32
10 +£12.05

Cartridge Heaters- Imperial Sizes


Cartridge heaters have high temperature lead wires that can stand temperature of up to 450̊C
High impact ceramic cap suitable for high vibration applications
Deep holes in ceramic cap prevents fraying of lead when bent
Nickel-chromium resistance wire for maximum heater life
TIG welded end disc prevents contamination and moisture absorption
Fiberglass lead wire insulation
10" Lead wires


Cartridge Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Designed to provide localised heat to a restricted work area requiring close thermal control
Cartridge heaters have low/moderate watt density elements consisting of helical wire coils on ceramic former or high watt density elements with the heating element located close to the sheath, which is swaged to improve heat conduction
All units supplied with instruction leaflet

AttributeValue
Element TypeCartridge Heater
Power Rating150 W
Supply Voltage220 V ac
Length3.5in
