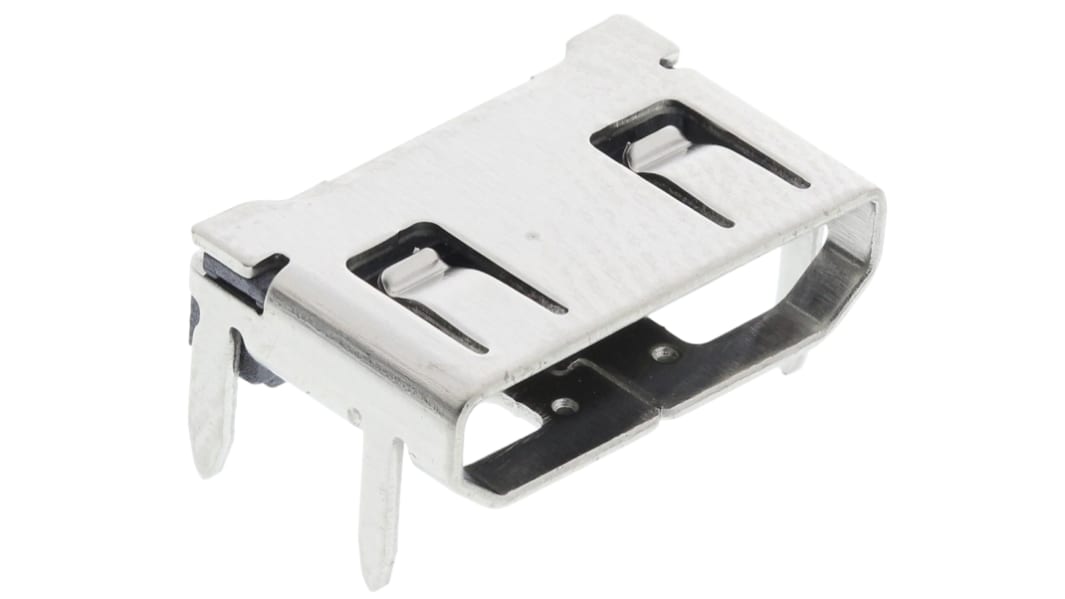

Miniature 19 Way Female Right Angle HDMI Connector 40 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

HDMI PCB Mount Connectors

From Wurth Elektronik, this HDMI socket is for mounting on printed circuit boards. This horizontal SMT HDMI Connector has a flammability rating of UL94 V-0

Available in this Range:

818-3283 is a standard size PCB HDMI Socket
818-3285 is a standard size PCB HDMI Socket with an M3 threaded tab
818-3289 is a miniature size PCB HDMI Socket

Wurth HDMI

Specifications
Attribute Value
Gender Female
Number of Contacts 19
Size Miniature
Contact Material Phosphor Bronze
Contact Plating Gold
Body Orientation Right Angle
Termination Method Solder
Current Rating 500mA
Voltage Rating 40 V
Housing Material Brass Tin Plated
Colour Black
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Series Number 685119
Series HDMI
389 In stock for FREE next working day delivery
Price Each
£ 2.26
(exc. VAT)
£ 2.71
(inc. VAT)
Units
Per unit
1 - 9
£2.26
10 - 24
£2.19
25 - 49
£2.12
50 - 99
£2.03
100 +
£1.92
