DTS 2 x 36 W Bulkhead Light Fitting, 1, 2, 21, 22, Fluorescent, Temp T6, ATEX
- RS Stock No.:
- 781-2582
- Mfr. Part No.:
- XFF240
- Brand:
- DTS
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 781-2582
- Mfr. Part No.:
- XFF240
- Brand:
- DTS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | DTS | |
Type | Bulkhead | |
Zone Classification | 1, 2, 21, 22 | |
Temperature Classification | T6 | |
Wattage | 2 x 36 W | |
Lamp Type | Fluorescent | |
Individual Lamp Wattage | 36W | |
Number of Lamps | 2 | |
Hazardous Area Certification | ATEX | |
Priced to Clear | Yes | |
Select all | ||
---|---|---|
Brand DTS | ||
Type Bulkhead | ||
Zone Classification 1, 2, 21, 22 | ||
Temperature Classification T6 | ||
Wattage 2 x 36 W | ||
Lamp Type Fluorescent | ||
Individual Lamp Wattage 36W | ||
Number of Lamps 2 | ||
Hazardous Area Certification ATEX | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- FR

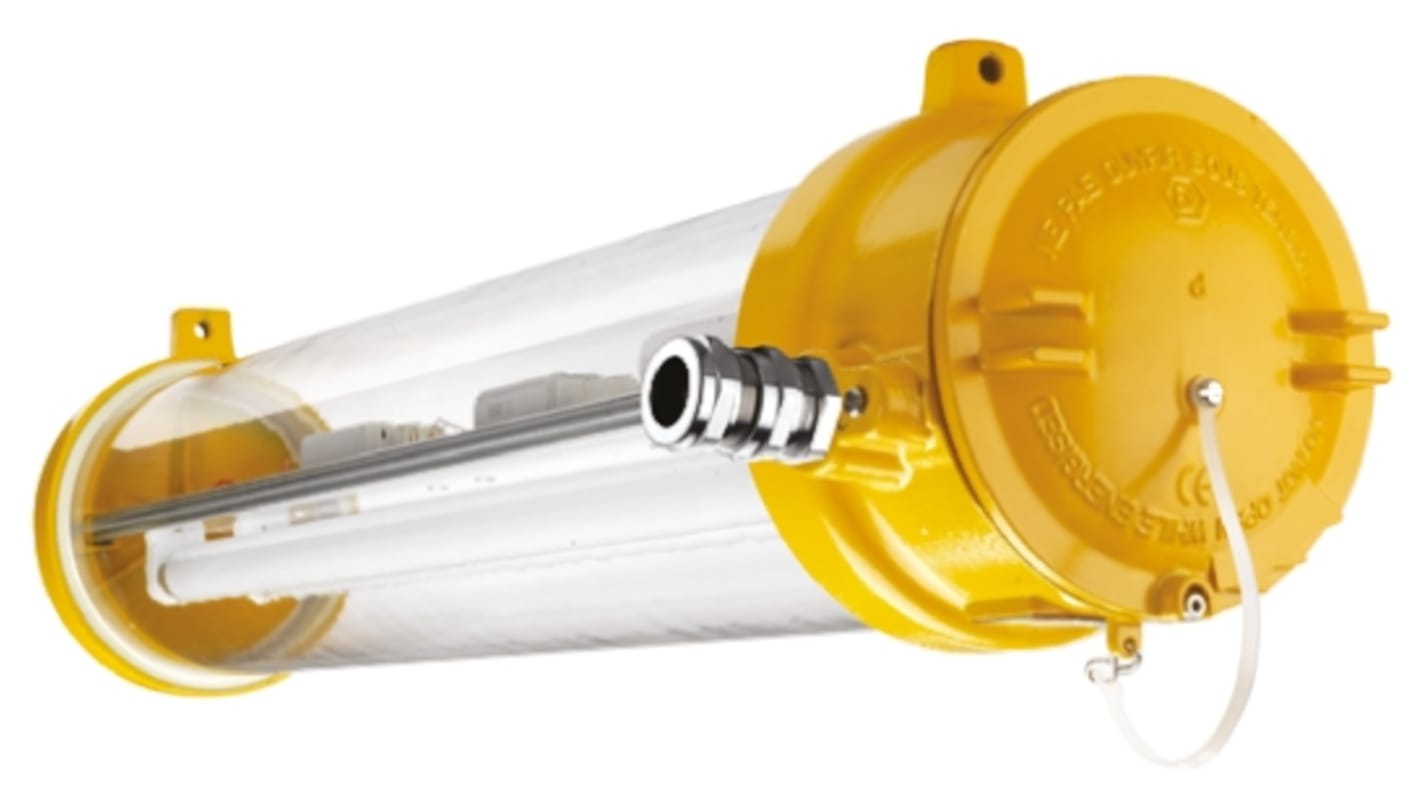

Tubular fluorescent fitting, Zone 1, 2, 21 & 22 Ex d
The XFF Series of hazardous area Ex d tubular fluorescent luminarie from DTS, is designed for use in Zone 1, 2, 21 and 22, areas, allowing the same luminaries to be used across a hazardous area site, whether it is oil and gas or food and beverage. The XFF ATEX luminarie combines high quality with a large range of features.
Tubular fluorescent fitting - Polycarbonate
Manufactured from marine grade aluminum
Finishing Yellow offshore
All components mounted on slide out gear tray
Easy access for installation and maintenance
Automatic switch off upon opening for safe maintenance
Standard components used inside the body allowing reduced maintenance costs
Electronic ballast 220 - 240V 50/60Hz
No lamp included
Manufactured from marine grade aluminum
Finishing Yellow offshore
All components mounted on slide out gear tray
Easy access for installation and maintenance
Automatic switch off upon opening for safe maintenance
Standard components used inside the body allowing reduced maintenance costs
Electronic ballast 220 - 240V 50/60Hz
No lamp included
Approvals
INERIS 11 ATEX 0051X
Ex II 2 G
Ex d IIC T6 Gb for ≤ -20°C to ≤ +55°C
Ex II 2 D Ex tb IIIC T80°C Db IP66
Ex II 2 G
Ex d IIC T6 Gb for ≤ -20°C to ≤ +55°C
Ex II 2 D Ex tb IIIC T80°C Db IP66
Supplied with
One 3/4 in NPT nickel-plated brass cable gland for non armoured cable (12-16 mm), one 3/4 in NPT nickel-plated brass stopping plug and two zinc plated steel articulated brackets for ceiling mounting (D023)
