Startech 3.5in SATA Hard Drive Enclosure, eSATA
- RS Stock No.:
- 186-1926
- Mfr. Part No.:
- S3540BU33E
- Brand:
- Startech
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 186-1926
- Mfr. Part No.:
- S3540BU33E
- Brand:
- Startech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Startech | |
| Drive Size | 3.5in | |
| Drive Interface | SATA | |
| Port Types | eSATA | |
| Dimensions | 200 x 143 x 114mm | |
| Height | 143mm | |
| Length | 200mm | |
| Width | 114mm | |
Select all | ||
|---|---|---|
Brand Startech | ||
Drive Size 3.5in | ||
Drive Interface SATA | ||
Port Types eSATA | ||
Dimensions 200 x 143 x 114mm | ||
Height 143mm | ||
Length 200mm | ||
Width 114mm | ||
- COO (Country of Origin):
- CN

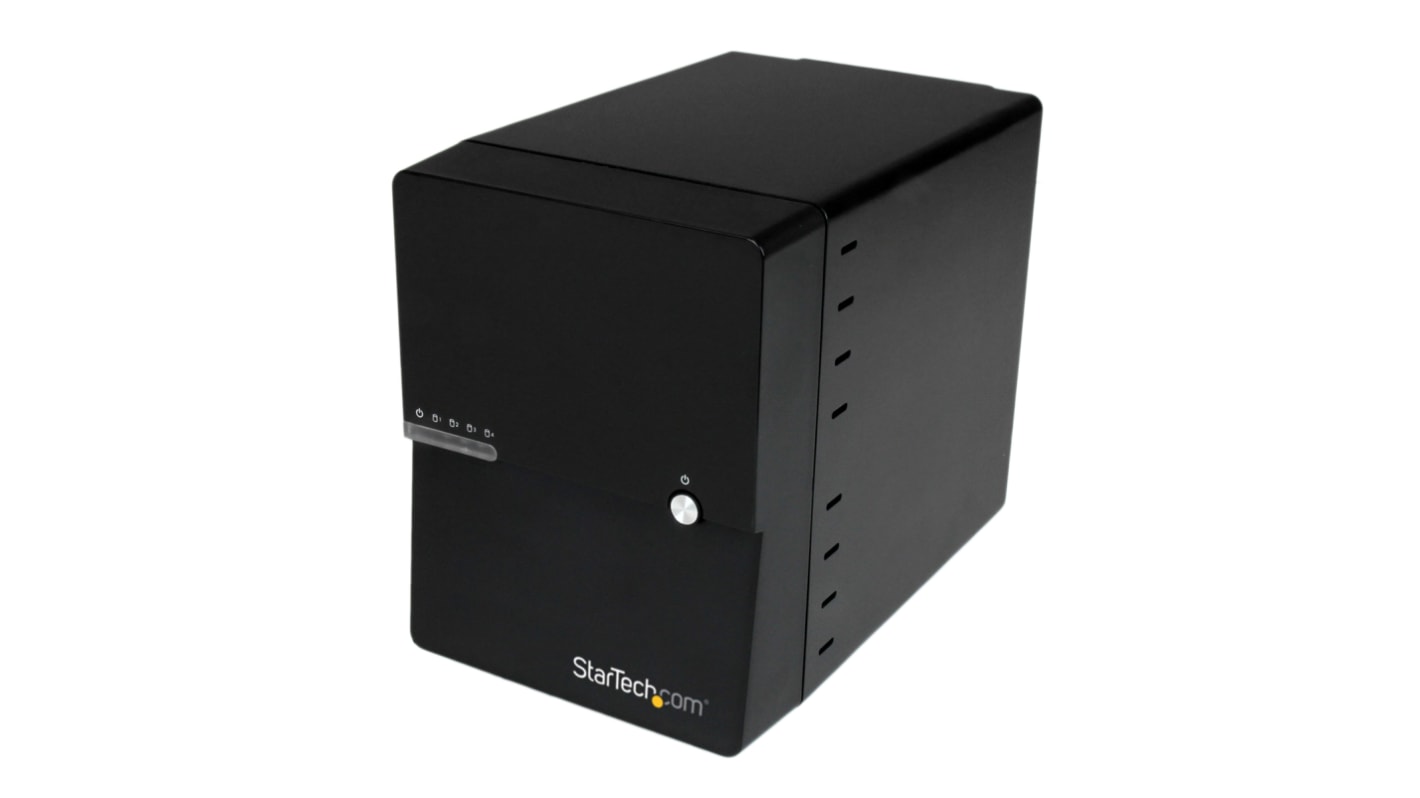

S3540BU33E eSATA Hard Drive Enclosure
The S3540BU33E 4-Bay HDD enclosure lets you install four 3.5” SATA hard drives into an external enclosure, and connect to your computer through USB 3.0 or eSATA.
For fast performance and efficient data transfers, the enclosure supports SATA III transfer speeds -- up to 6 Gbps when connected through eSATA. The versatile enclosure can also be connected through USB 3.0, with support for UASP, performing up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The S3540BU33E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 10/8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
For fast performance and efficient data transfers, the enclosure supports SATA III transfer speeds -- up to 6 Gbps when connected through eSATA. The versatile enclosure can also be connected through USB 3.0, with support for UASP, performing up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The S3540BU33E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 10/8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Features & Benefits
• Supports SATA III (6 Gbps) and UASP (5 Gbps) for optimal performance
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• USB 3.0 and eSATA cables included
• Four 3.5" drive bays
• Built-in cooling fan
• Versatile connectivity options, through either USB or eSATA
• Maximize performance, with file transfer speeds up to 6Gbps using eSATA
• Keep your drives running cooler, with a built-in fan
• Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• USB 3.0 and eSATA cables included
• Four 3.5" drive bays
• Built-in cooling fan
• Versatile connectivity options, through either USB or eSATA
• Maximize performance, with file transfer speeds up to 6Gbps using eSATA
• Keep your drives running cooler, with a built-in fan
Applications
• Use external hard drives for high-performance applications such video editing or photography
• Create an external backup of important data
• Build an external software RAID array
• Expand the storage capacity of your desktop or laptop computer, through an external eSATA connection
• Create an external backup of important data
• Build an external software RAID array
• Expand the storage capacity of your desktop or laptop computer, through an external eSATA connection
What’s in the package?
• USB 3.0/eSATA 4-Bay 3.5" SATA hard drive enclosure
• eSATA cable
• USB 3.0 cable
• universal power adapter (NA,UK,EU)
• instruction manual
• eSATA cable
• USB 3.0 cable
• universal power adapter (NA,UK,EU)
• instruction manual
