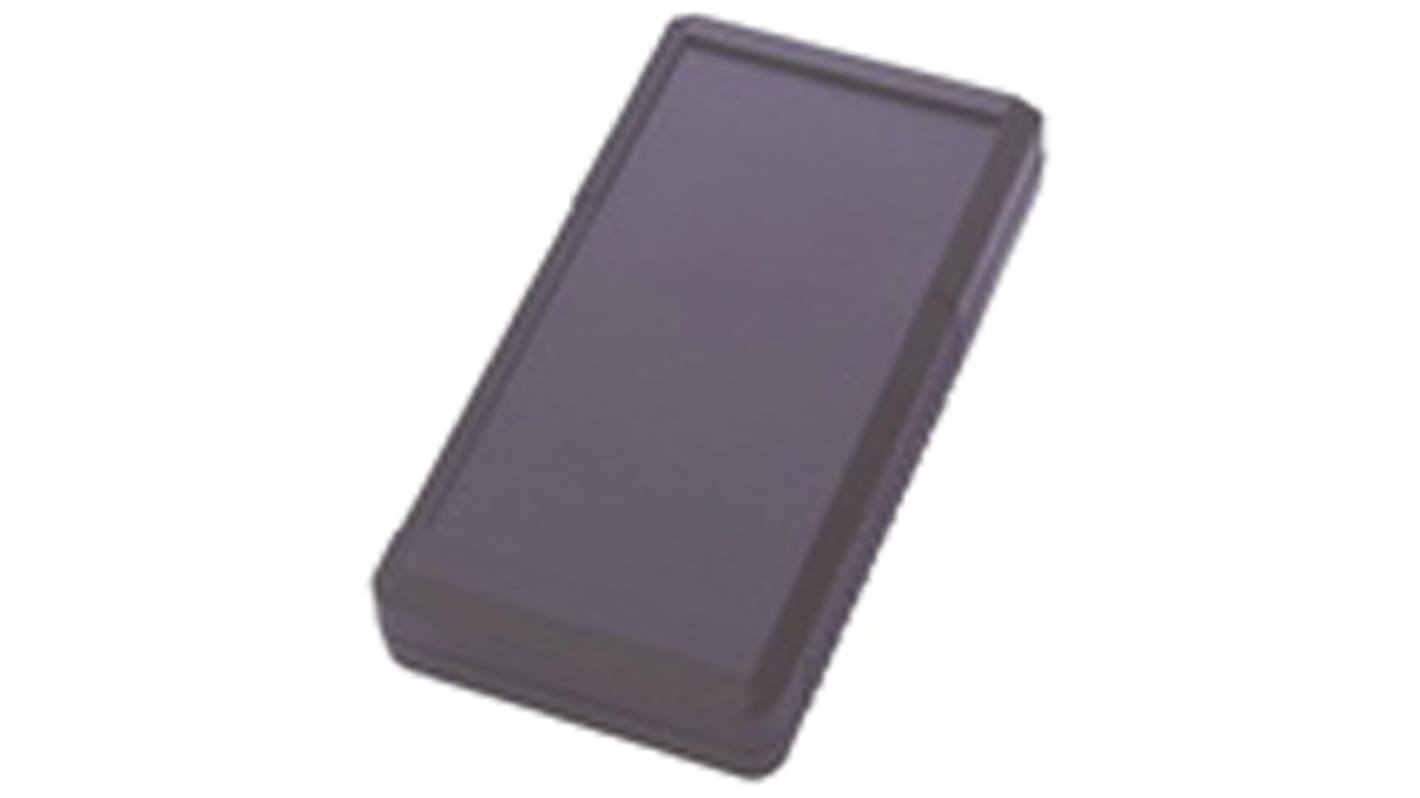

Bopla, BOS, ABS, Handheld Enclosure With Integral Battery Compartment, IP40 ,157 mm x 30 mm x 84 mm

  • RS Stock No. 188-1068
  • Mfr. Part No. 34752000
  • Brand Bopla
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RO
Product Details

Pocket housing with battery compartment, type 3

Portable housing in a modern, attractive design of black ABS plastic with finely textured surface. Available in several designs (with or without windows). All models have a built-in battery compartment that is externally accessible via a removable cover, and plastic posts for mounting PCBs or keyboards. Housing types with 4 R6 round cells are supplied with battery terminals, the types with 9V E-block batteries do not contain a battery connector. The housings for 9V E-block batteries are screwed together with latching claws and a self-tapping screw (supplied) that are for R6 round cells with four self-tapping screws (supplied).

Specifications
Attribute Value
Body Material ABS
External Length 157 mm
External Width 84 mm
External Height 30 mm
Integral Battery Compartment Yes
IP Rating IP40
Weight 101g
Display Window No
Colour Black
External Dimensions 157 x 84 x 30mm
Push Buttons No
Series BOS
Keypad Recess Yes
6 In stock for delivery within 1 working days
Price Each
£ 13.52
(exc. VAT)
£ 16.22
(inc. VAT)
Units
Per unit
1 - 14
£13.52
15 - 24
£12.85
25 +
£12.44
