DiodesZetex Hall Effect Switch 4mA 60mA Solder, Through Hole Open Drain, -40 → 150°C, 3 → 28 V

View all Hall Effect Switches
Bulk discount available

Subtotal 50 units (supplied on a continuous strip)*

£24.00

(exc. VAT)

£29.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 380 unit(s) ready to ship
  • Plus 999,999,610 unit(s) shipping from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
50 - 90£0.48
100 - 240£0.458
250 - 490£0.447
500 +£0.436

*price indicative

Packaging Options:
RS Stock No.:
246-7395P
Mfr. Part No.:
AH3762Q-P-B
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Minimum Supply Voltage

3V dc

Maximum Supply Voltage

28V dc

Supply Current

4mA

Maximum Current Output

60mA

Terminal Type

Solder, Through Hole

Output Type

Open Drain

Supply Voltage Range

3 → 28 V

Operating Temperature Range

-40 → 150°C

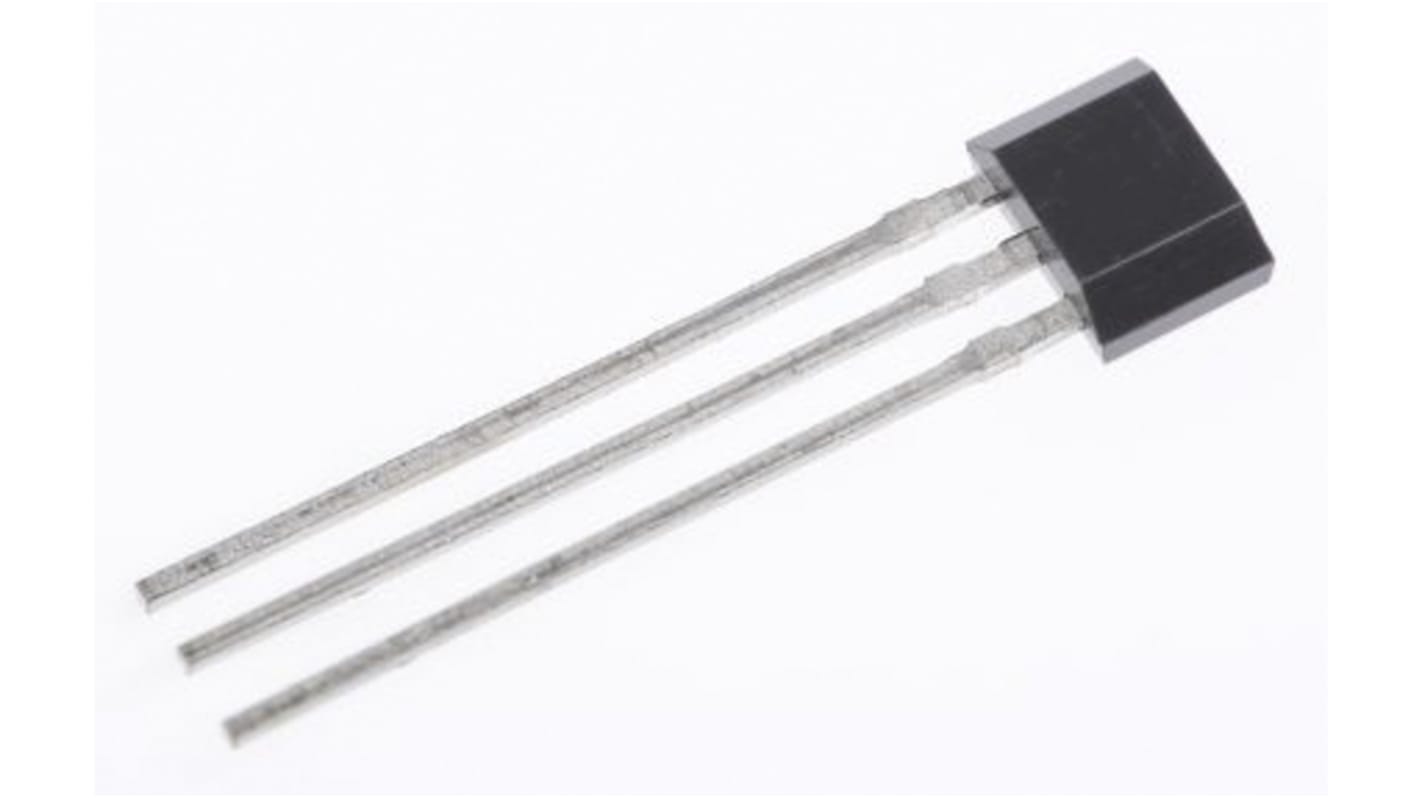

The DiodesZetex AH3762Q is a high-voltage, high-sensitivity Hall-Effect latch IC designed for brushless DC-motor commutation speed measurement, angular or linear encoders and position sensors in automotive applications. To support a wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V. For robustness and protection, the device has a reverse blocking diode with a Zener clamp on the supply. The output has an overcurrent limit and a Zener clamp.

Operating voltage range of 3.0 V to 28 V Bipolar latch operation were south pole is on and north pole is off High sensitivity Bop and Brp of +25G and -25G typical single open-drain output with overcurrent limit Package type is SIP-3
