Hall Effect Switch 4mA 60mA Solder, Surface Mount, -40 → 150°C, 3 → 28 V

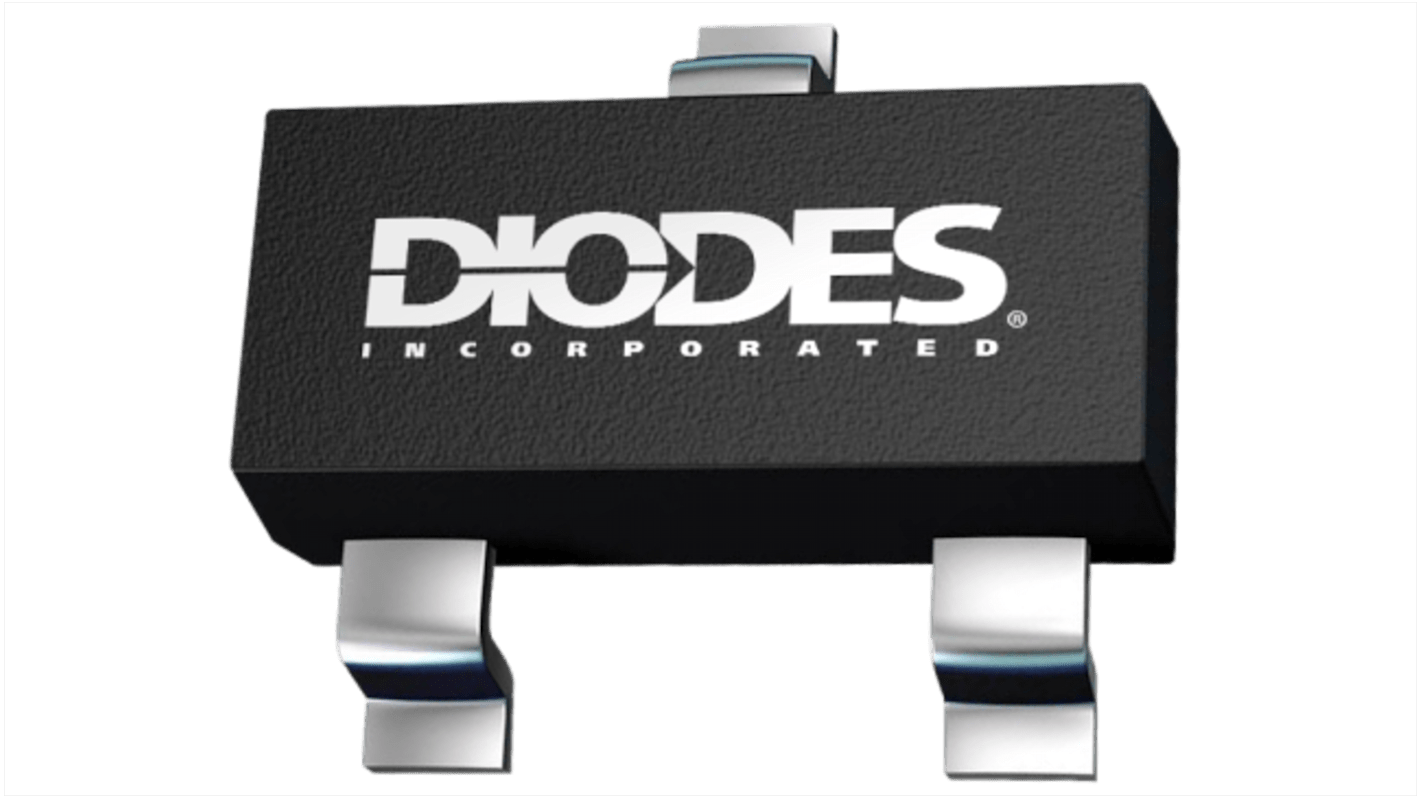

The DiodesZetex AH3582 is a high voltage high sensitivity Hall Effect Omnipolar switch IC designed for proximity, position and level sensing in industrial and consumer home appliances and personal care applications. To support wide range of demanding applications, the design has been optimized to operate over the supply range of 3.0V to 28V. For robustness and protection, the device has a reverse blocking diode with a Zener clamp on the supply. The output has an over current limit and a Zener clamp. The device package type is SOT23.

The device offers omnipolar operation It has high sensitivity BOP and BRP of ±40G and ±25G typical It has an internal pull-up resistor on the output with overcurrent limit It has an operating voltage range of 3.0V to 28V
