IP66, IP67 Hall Effect Switch 12mA Lever Solder Tab Spring Return, -40 → +70°C, 4.9 → 5.1 V dc

  • RS Stock No. 122-8507
  • Mfr. Part No. SM2-P1-3MO
  • Brand Suregrip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

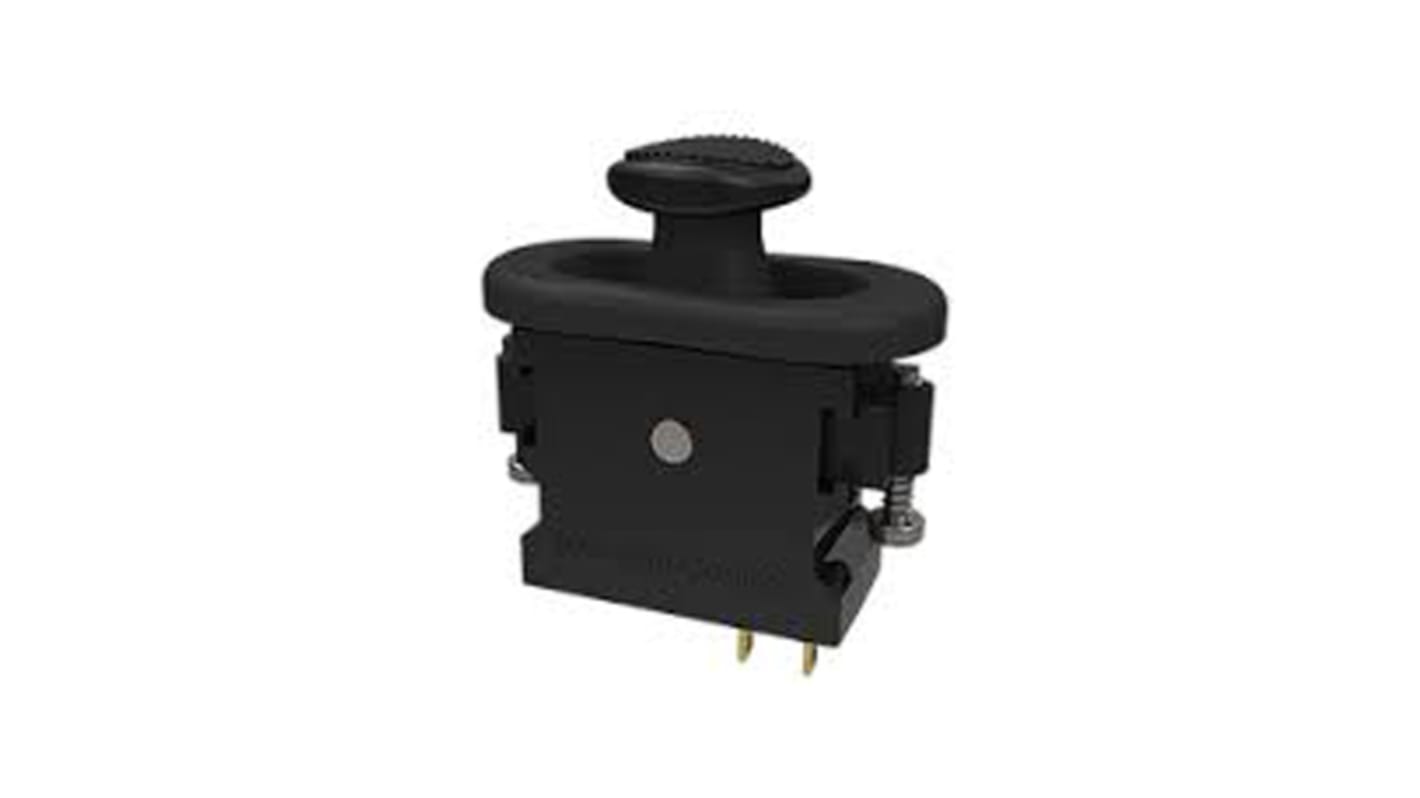

Suregrip SM2 Series Slider Switch

Suregrip SM2 series of slider switches provide a proportional hall effect module offered in three configurations. The SM2 series are a sealed IP67 rated module, making them suitable for use within more demanding environments & external installation.

Features and Benefits

Typical Applications

+/- 24° travel
IP67 rated.
Up to 4 million cycles.
Offered in both latching & spring return 3 position variants.

Can be used within applications such as grapples, bucket thumbs, grab & tilt or rotate functionality.

Specifications
Attribute Value
Minimum Supply Voltage 4.9V dc
Maximum Supply Voltage 5.1V dc
Supply Current 12mA
Switch Life >4000000Cycles
Actuator Type Lever
Terminal Type Solder Tab
Switching Action Spring Return
IP Rating IP66, IP67
Minimum Operating Temperature -40°C
Maximum Operating Temperature +70°C
Supply Voltage Range 4.9 → 5.1 V dc
Operating Temperature Range -40 → +70°C
11 In stock - FREE next working day delivery available
Price Each
£ 110.84
(exc. VAT)
£ 133.01
(inc. VAT)
Units
Per unit
1 - 4
£110.84
5 - 9
£105.30
10 - 24
£100.04
25 - 49
£95.03
50 +
£85.53
