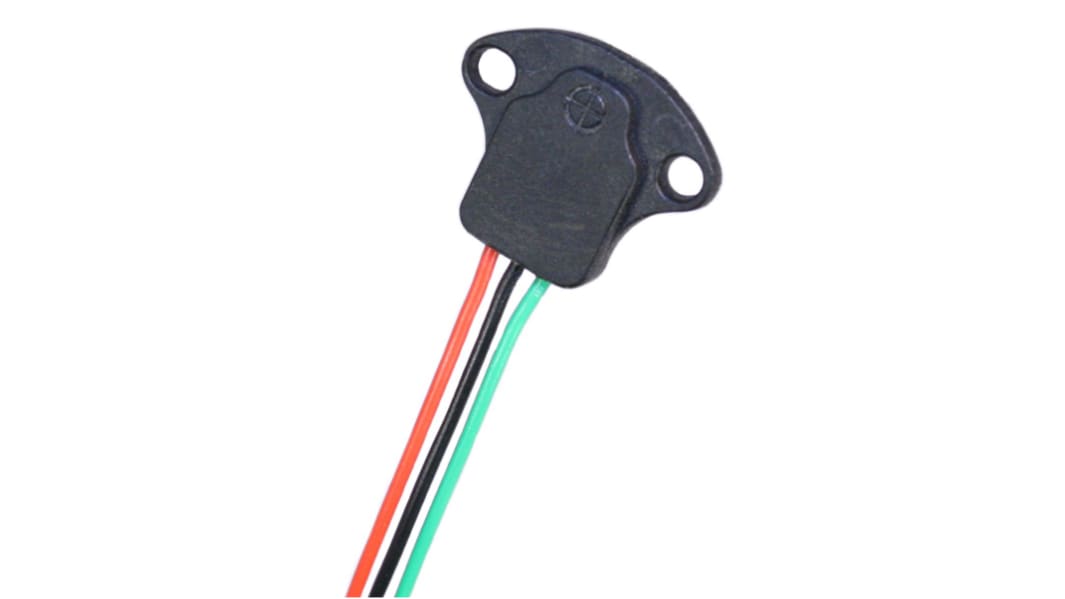

Assemtech Hall Effect Sensor, 3-Wire Open Collector Output, 4.5 → 24 V dc, Block Body, 24V
- RS Stock No.:
- 866-2619
- Mfr. Part No.:
- PGN-SP-001
- Brand:
- Assemtech
Subtotal (1 unit)*
£8.55
(exc. VAT)
£10.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 268 unit(s) shipping from 01 December 2025
- Plus 14 unit(s) shipping from 01 December 2025
- Plus 200 unit(s) shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.55 |
*price indicative
- RS Stock No.:
- 866-2619
- Mfr. Part No.:
- PGN-SP-001
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Output Type | 3-Wire Open Collector | |
| Body Style | Block | |
| Supply Voltage | 4.5 → 24 V dc | |
| Terminal Type | Wire Lead | |
| Maximum DC Voltage | 24V | |
| Switching Current | 5.2 mA | |
| Length | 17.27mm | |
| Width | 21.72mm | |
| Depth | 3.3mm | |
| Maximum Operating Temperature | +85°C | |
| Dimensions | 17.27 x 21.72 x 3.3 mm | |
| IP Rating | IPX5 | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | IEC 529 | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Output Type 3-Wire Open Collector | ||
Body Style Block | ||
Supply Voltage 4.5 → 24 V dc | ||
Terminal Type Wire Lead | ||
Maximum DC Voltage 24V | ||
Switching Current 5.2 mA | ||
Length 17.27mm | ||
Width 21.72mm | ||
Depth 3.3mm | ||
Maximum Operating Temperature +85°C | ||
Dimensions 17.27 x 21.72 x 3.3 mm | ||
IP Rating IPX5 | ||
Minimum Operating Temperature -40°C | ||
Standards Met IEC 529 | ||
- COO (Country of Origin):
- GB
Digital Hall Effect Proximity Sensors
Digital hall effect proximity sensors in low-profile flange-mount housing. They are suitable for different applications such as door positioning sensing, flow sensing and pedal switches.
Reverse battery protection
Latches in presence of south pole magnet
Unlatches in presence of north pole magnet
Meets IEC529 IPX5 for water protection
Capable of many different operations
Latches in presence of south pole magnet
Unlatches in presence of north pole magnet
Meets IEC529 IPX5 for water protection
Capable of many different operations
