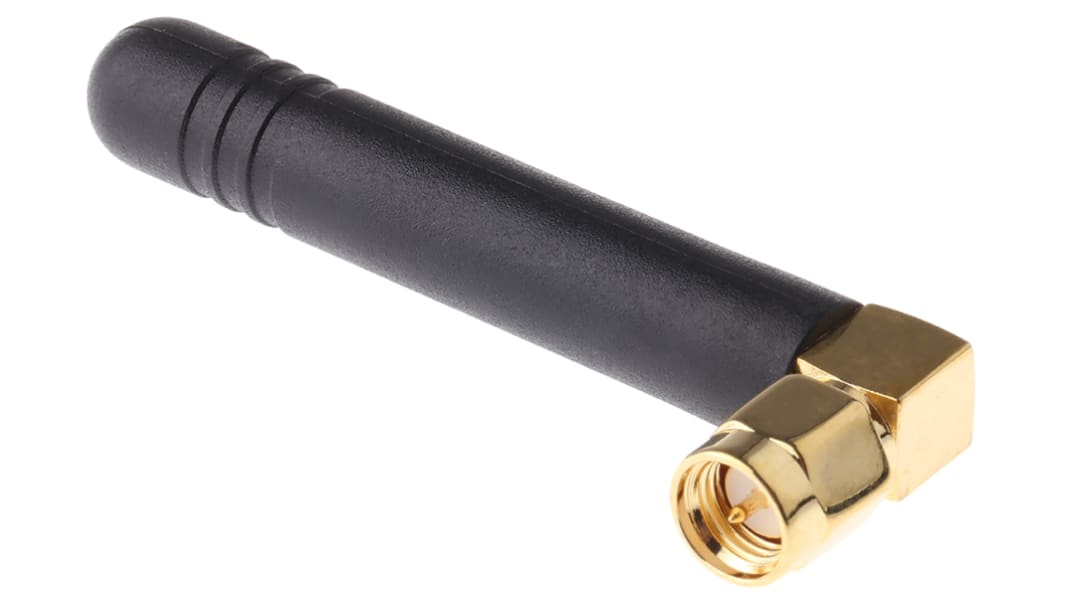

ANT-GHEL2R-SMA RF Solutions - 2G (GSM/GPRS) Antenna, Direct Mount, SMA

  • RS Stock No. 793-4376
  • Mfr. Part No. ANT-GHEL2R-SMA
  • Brand RF Solutions
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

GSM Quad-band GSM Antenna, RF Solutions

The GSM +2dBi gain antenna operates in Quad Band 890/960, 1710/1880 MHz Frequencies. RF Solutions 1/4 Wave Monopole Antenna comes available in straight or right angle.The Helical antenna is omnidirectional and can work in both directions for use in GSM, telemetry and M2M applications.

Helical Antenna; VSWR <2.0
SMA Male Connector; 50 Ohm
ABS / Rubber Housing
Length ; 59mm

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), RF Solutions

Specifications
Attribute Value
RF Protocols 2G (GSM/GPRS)
Internal/External External
Supported Frequency Bands 890 → 960 MHz, 1710 → 1880 MHz
Antenna Physical Form Stubby
Connector Type SMA
Antenna Mounting Type Direct
Gain 2dBi
Includes Lead No
Lead Length 0.013m
Connector Gender Male
Antenna Internal Construction Helical
619 In stock - FREE next working day delivery available
Price Each
£ 4.12
(exc. VAT)
£ 4.94
(inc. VAT)
Units
Per unit
1 - 4
£4.12
5 +
£3.91
