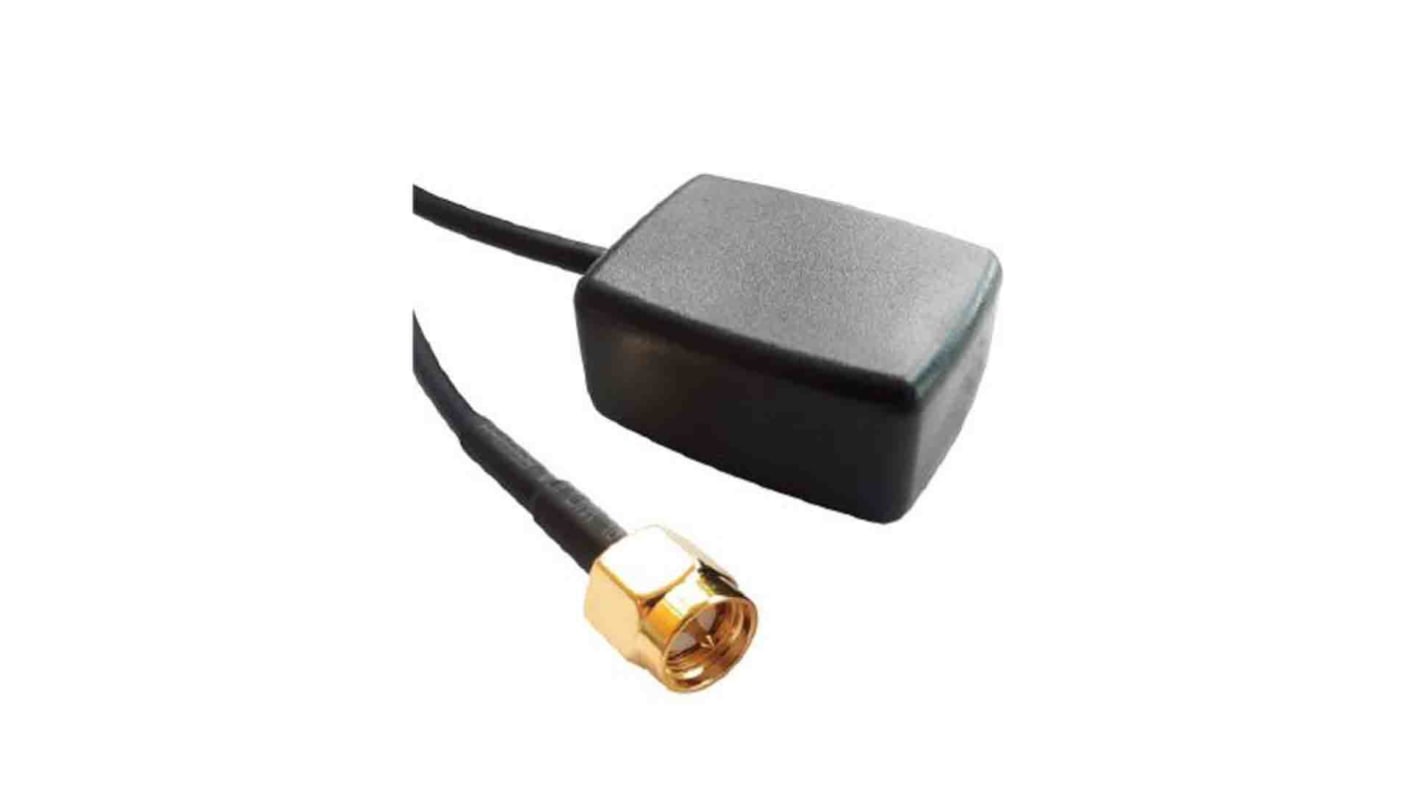

Siretta MIKE13/2.5M/SMAM/S/S/17 Square Omnidirectional GPS Antenna with SMA Connector, GPS

View all GPS Antennas
Discontinued
RS Stock No.:
202-4082
Mfr. Part No.:
MIKE13/2.5M/SMAM/S/S/17
Brand:
Siretta
Find similar products by selecting one or more attributes.
Select all

Brand

Siretta

Antenna Physical Form

Square

Connector Type

SMA

Lead Length

2500mm

Antenna Mounting Type

Magnetic

Connector Gender

Male

Antenna Directivity

Omnidirectional

RF Protocols

GPS

Gain

26dBi

Minimum Operating Temperature

- 40°C

Maximum Operating Temperature

85°C

Dimensions

27.6 x 21 x 12.9mm

Height

12.9mm

Width

21mm

Length

27.6mm

Series

MIKE13

COO (Country of Origin):
TW
The Siretta Mike 13 GPS antenna is one of the smallest active GPS antennas available in a magnetic mount style. The Mike 13 can also be used as an adhesive mount antenna using a double sided adhesive pad. The Mike 13 has a typical LNA gain of 26dB boosting the dielectric antenna gain. With a low current consumption the antenna is ideal for IoT small devices applications. Supplied as standard with a 2.5m cable and SMA Male connector. Alternative cable lengths or connectors can be specified for volume orders.

Very small footprint
GPS (1575.42MHz)
Low current consumption
