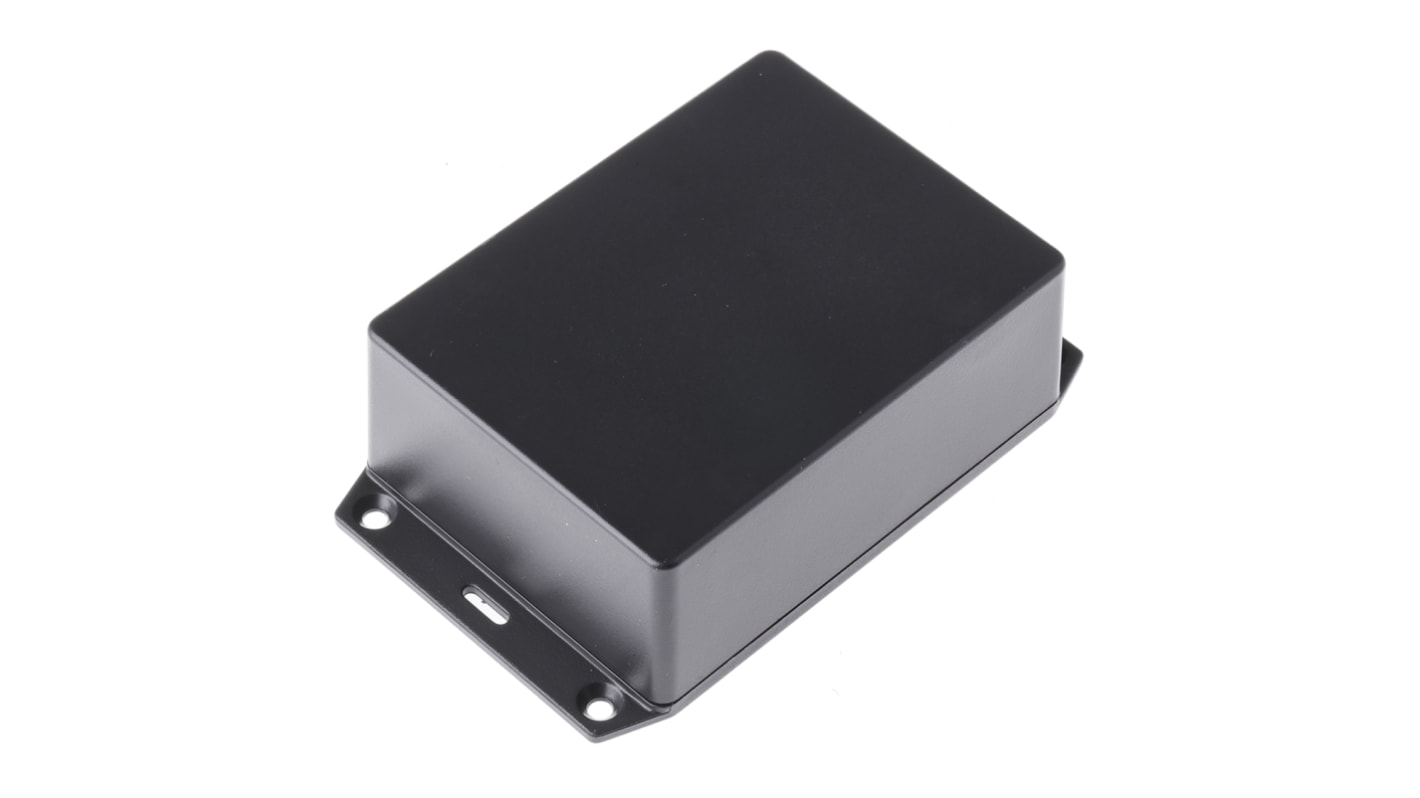

Hammond 1591 Series Black Flame Retardant ABS Enclosure, IP54, Flanged, Black Lid, 112.5 x 84.6 x 41.3mm
- RS Stock No.:
- 818-0485
- Mfr. Part No.:
- 1591XXSFLBK
- Brand:
- Hammond
Subtotal (1 unit)*
£6.31
(exc. VAT)
£7.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 38 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £6.31 |
*price indicative
- RS Stock No.:
- 818-0485
- Mfr. Part No.:
- 1591XXSFLBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hammond | |
Body Material | Flame Retardant ABS | |
External Length | 112.5 mm | |
External Height | 41.3 mm | |
External Width | 84.6 mm | |
External Dimensions | 112.5 x 84.6 x 41.3mm | |
IP Rating | IP54 | |
Range | 1591 | |
Colour | Black | |
Lid Colour | Black | |
Flanged | Yes | |
Shielded | No | |
Series | 1591 | |
Weight | 95g | |
Explosion Proof | No | |
RAL Code | RAL 9005 | |
Select all | ||
---|---|---|
Brand Hammond | ||
Body Material Flame Retardant ABS | ||
External Length 112.5 mm | ||
External Height 41.3 mm | ||
External Width 84.6 mm | ||
External Dimensions 112.5 x 84.6 x 41.3mm | ||
IP Rating IP54 | ||
Range 1591 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged Yes | ||
Shielded No | ||
Series 1591 | ||
Weight 95g | ||
Explosion Proof No | ||
RAL Code RAL 9005 | ||
- COO (Country of Origin):
- US
Hammond Enclosure, 112.5 (L) x 84.6 (W) x 41.3mm (H), With PCB Standoffs, Screws Included - 1591 Series - 1591XXSFLBK
On the lookout for protective PCB housing with a mounting flange? Grab this enclosure from Hammond. You can use it to mount printed circuit boards horizontally while shielding them from potential environmental hazards. The unit is moulded from hardwearing ABS, which is tough and impact-resistant to effectively safeguard equipment inside. This material is also easy to machine, so you can customise your box. A tongue-and-groove lid protects against contamination, earning the product an IP54 rating. This means most dust and splashes of water are firmly shut out.
Features & Benefits
• Flame-retardant, so won't contribute to the spread of flames in case of fire
• Moulded PCB standoffs in lid and box ensure quick and easy mounting
• Includes two M3 x 10mm Phillips machine screws so you get everything you need to secure the lid firmly
• Flanged lid gives you an easy way of mounting the box on a flat surface
• Moulded PCB standoffs in lid and box ensure quick and easy mounting
• Includes two M3 x 10mm Phillips machine screws so you get everything you need to secure the lid firmly
• Flanged lid gives you an easy way of mounting the box on a flat surface
Applications
• Server rooms
• Telecommunications networks
• Warehouses and self-storage facilities
• Telecommunications networks
• Warehouses and self-storage facilities
What's the purpose of this product's brass bushings?
Integrated brass bushings in the box's walls and lid mean it's a durable option as your screws won't wear away the ABS plastic with repeated opening and closing.
Approvals
Material Flamability Rating: UL94-V0
