- RS Stock No.:
- 197-4505
- Mfr. Part No.:
- 1551V4WH
- Brand:
- Hammond
Price Each
£2.64
(exc. VAT)
£3.17
(inc. VAT)
Available to back order for despatch 31/07/2024
Units | Per unit |
---|---|
1 - 9 | £2.64 |
10 - 14 | £2.51 |
15 - 24 | £2.43 |
25 + | £2.40 |
- RS Stock No.:
- 197-4505
- Mfr. Part No.:
- 1551V4WH
- Brand:
- Hammond
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

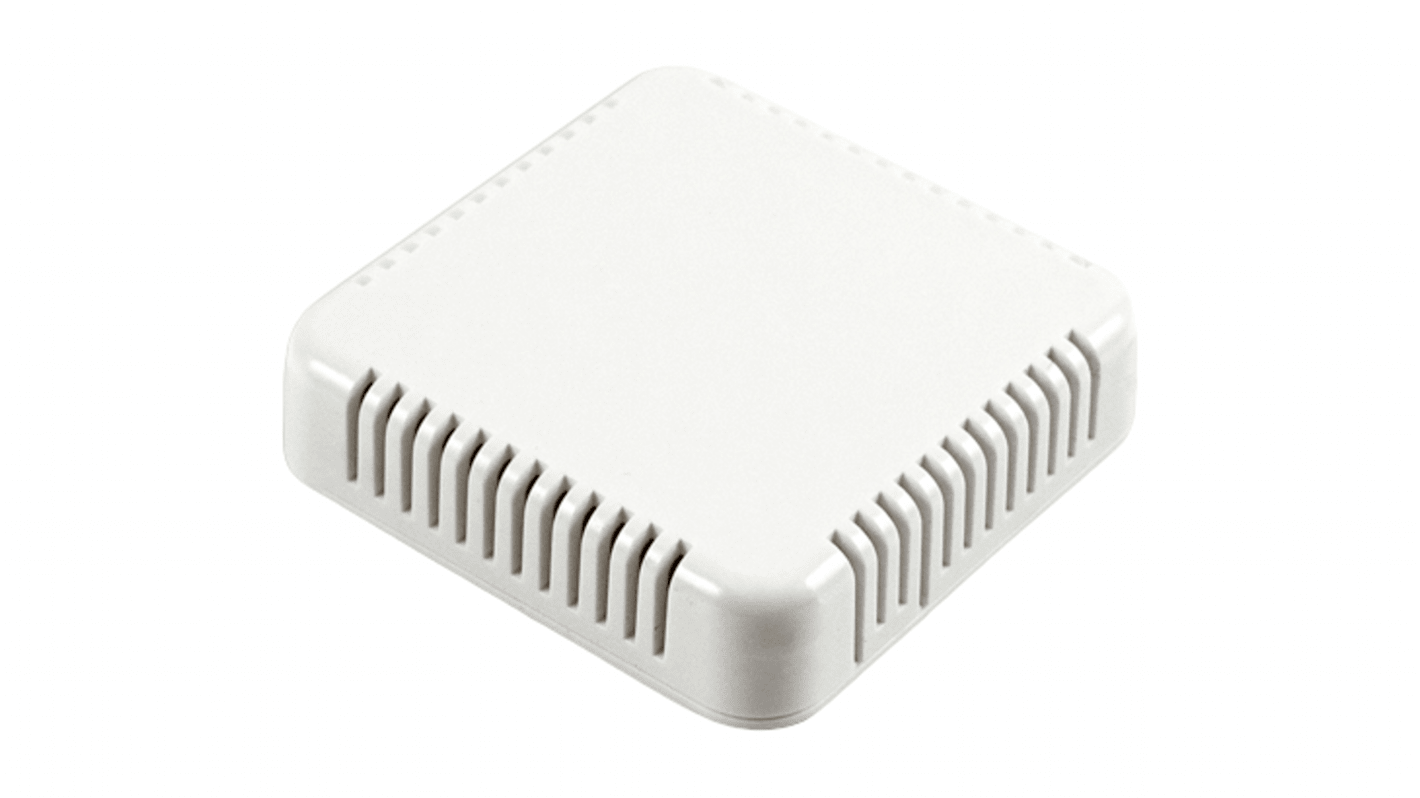

Hammond Enclosure, 80 (L) x 80 (W) x 20mm (H), ABS Construction, 40g Weight - 1551 Series - 1551V4WH
To keep sensitive components shielded, box them in with this enclosure from Hammond. It features standoffs to support circuit boards, which can be secured using #2 x 3/16" self-tapping screws (197-4506). Thanks to its ABS housing, this unit takes wear and impact in its stride, giving you long-term performance in harsh environments. Vented holes in the lid prevent finger access to the enclosed parts, while also promoting air circulation to keep your electronics running cool. This lightweight option tips the scales at just 40g, so you won't break a sweat when handling it during installation.
Features & Benefits
Compact dimensions of 80 (L) x 80 (W) x 20mm (H) make it a space-efficient choice for tight setups
Burns slowly in the event of a fire, helping to reduce the spread of flames
Satin texture finish and rounded edges make it comfortable to handle
Burns slowly in the event of a fire, helping to reduce the spread of flames
Satin texture finish and rounded edges make it comfortable to handle
Applications
Music studios
Telecommunications systems
Consumer electronics
Telecommunications systems
Consumer electronics
How do I insert cables into this enclosure?
This unit has a knockout on its base that you can open with a screwdriver for cable entry, keeping your setup organised.
Specifications
Attribute | Value |
---|---|
Body Material | ABS |
External Length | 80 mm |
External Height | 20 mm |
External Width | 80 mm |
External Dimensions | 80 x 80 x 20mm |
Range | 1551 |
IP Rating | IP30 |
Colour | White |
Lid Colour | White |
Flanged | No |
Shielded | No |
Series | 1551 |
Weight | 40g |
Transparent Door | No |
RAL Code | RAL 9010 |
Explosion Proof | No |
