Hutchinson Le Joint Français Rubber : DF851 & washer : Mild Steel Bonded Seals O-Ring, 10.7mm Bore, 18mm Outer Diameter
- RS Stock No.:
- 251-3184
- Mfr. Part No.:
- 205814
- Brand:
- Hutchinson Le Joint Français
Subtotal (1 bag of 10 units)*
£15.87
(exc. VAT)
£19.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £15.87 | £1.587 |
*price indicative
- RS Stock No.:
- 251-3184
- Mfr. Part No.:
- 205814
- Brand:
- Hutchinson Le Joint Français
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hutchinson Le Joint Français | |
Type | Bonded Seals | |
Material | Rubber : DF851 & washer : Mild Steel | |
Inside Diameter | 10.7mm | |
Outside Diameter | 18mm | |
Thickness | 1.5mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +250°C | |
Select all | ||
---|---|---|
Brand Hutchinson Le Joint Français | ||
Type Bonded Seals | ||
Material Rubber : DF851 & washer : Mild Steel | ||
Inside Diameter 10.7mm | ||
Outside Diameter 18mm | ||
Thickness 1.5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +250°C | ||
- COO (Country of Origin):
- MT

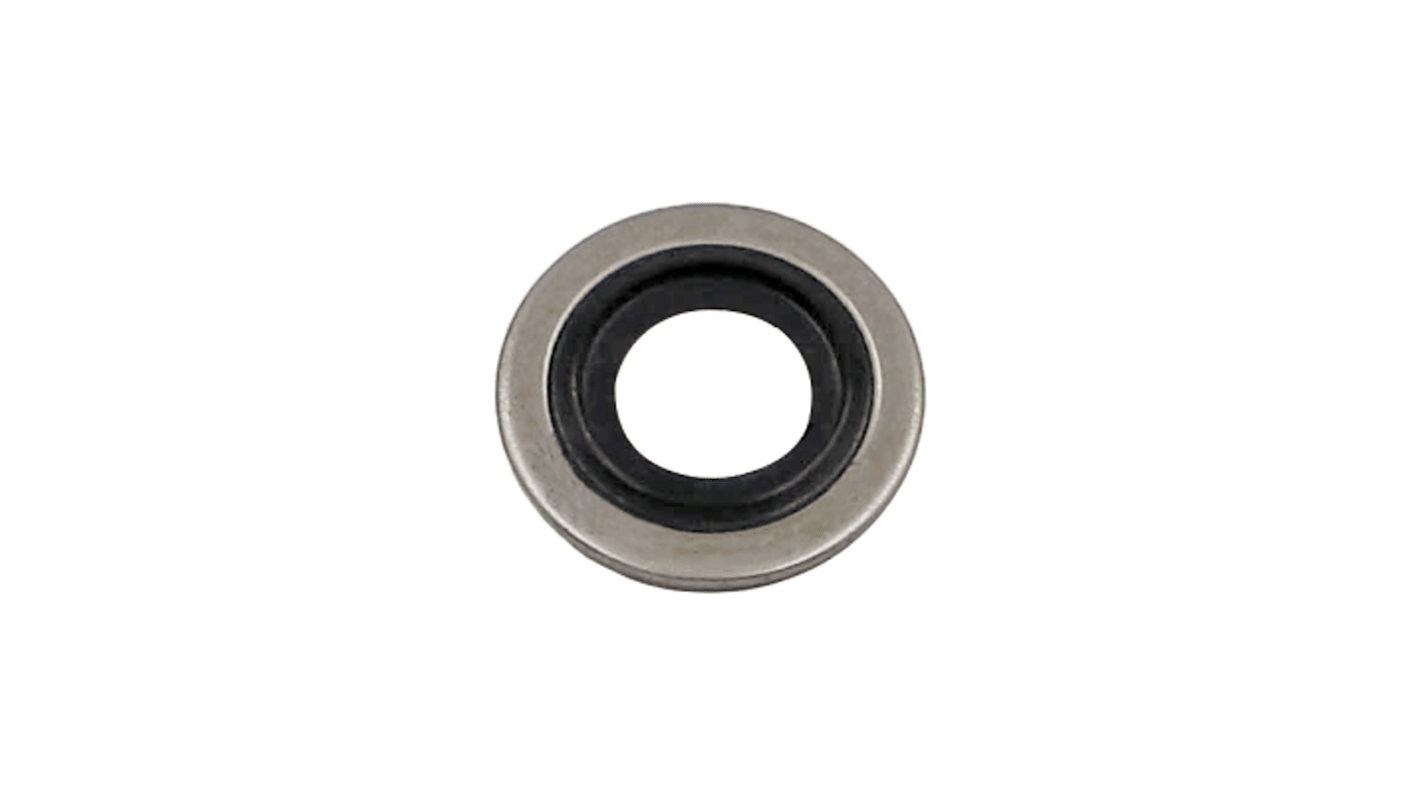

The Hutchinson Le Joint Français bonded seal consist of a metal insert with a profile of vulcanized rubber compound bonded to the inside diameter 10.70 mm, 18 mm external diameter, 1.50 mm thickness has FKM DF851 rubber family and mild steel metal washer with black rubber color also suitable for sealing under the heads of bolts and screws, for pipe couplings.
Size standard BS10
Operational temperature range -25 °C / 200 °C
Very good resistance - mineral oils, domestic gas, heat
Poor resistance - brake fluids, bases
Good impermeability
Operational temperature range -25 °C / 200 °C
Very good resistance - mineral oils, domestic gas, heat
Poor resistance - brake fluids, bases
Good impermeability
