Hutchinson Le Joint Français Rubber Bonded Seal BS-Ring, 6.86 mm ID, 13.21 mm OD
- RS Stock No.:
- 251-3158
- Mfr. Part No.:
- 205528
- Brand:
- Hutchinson Le Joint Français
Subtotal (1 bag of 50 units)*
£89.12
(exc. VAT)
£106.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £89.12 | £1.782 |
*price indicative
- RS Stock No.:
- 251-3158
- Mfr. Part No.:
- 205528
- Brand:
- Hutchinson Le Joint Français
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hutchinson Le Joint Français | |
| Product Type | BS-Ring | |
| Sub Type | Bonded Seal | |
| Material | Rubber | |
| Inside Diameter | 6.86 mm | |
| Outside Diameter | 13.21 mm | |
| Thickness | 1.22mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | Gaz : EN549 - H3E1 | |
| Select all | ||
|---|---|---|
Brand Hutchinson Le Joint Français | ||
Product Type BS-Ring | ||
Sub Type Bonded Seal | ||
Material Rubber | ||
Inside Diameter 6.86 mm | ||
Outside Diameter 13.21 mm | ||
Thickness 1.22mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals Gaz : EN549 - H3E1 | ||
- COO (Country of Origin):
- MT

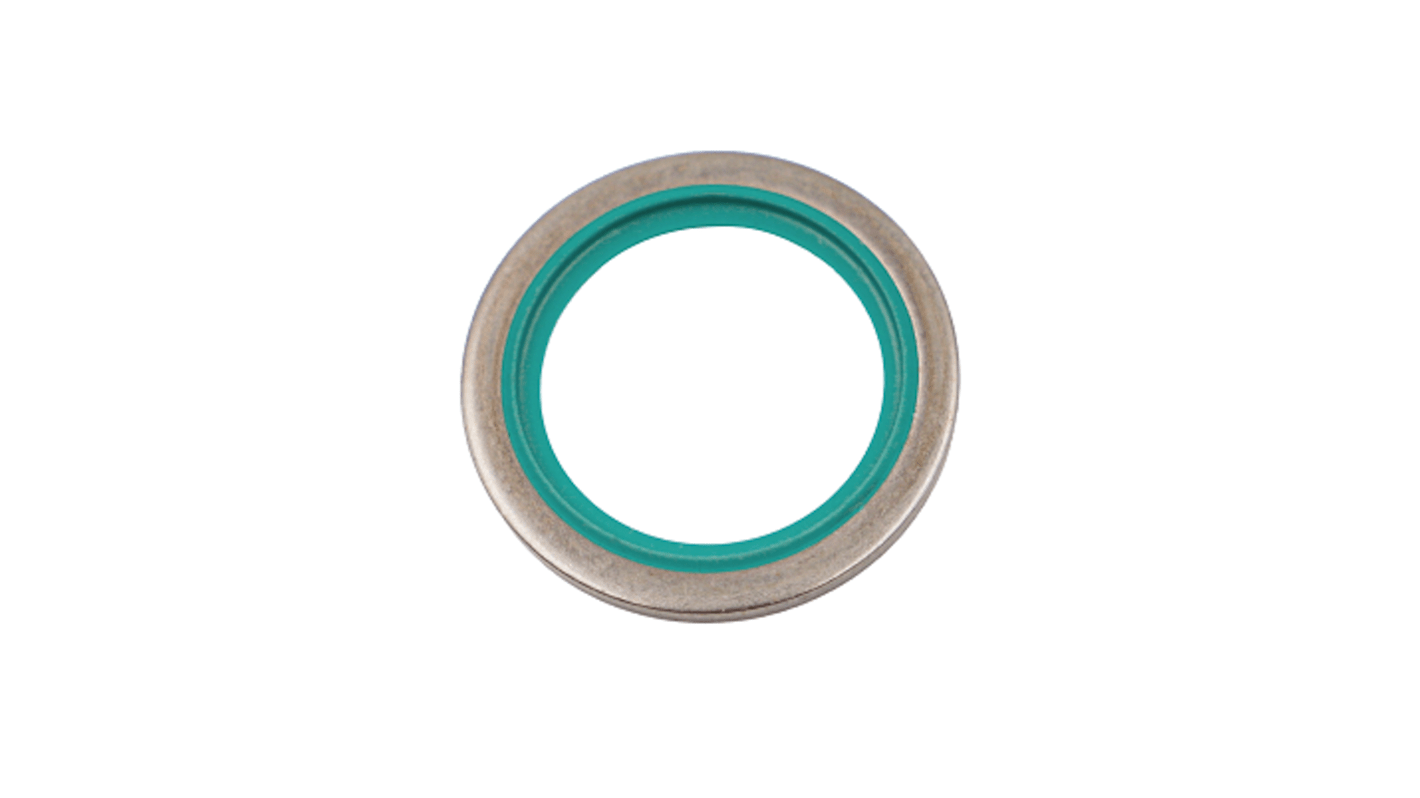

The Hutchinson Le Joint Français bonded seal consist of a metal insert with a profile of vulcanized rubber compound bonded to the inside diameter 6.86 mm, 13.21 mm external diameter, 1.22 mm thickness has FKM 7DF2075 rubber family and stainless steel T316 metal washer with green rubber color also suitable for sealing under the heads of bolts and screws, for pipe couplings.
Size standard A6.2
Bolt 1/4
Operational temperature range -25 °C / 200 °C
Very good resistance - mineral oils, domestic gas, heat
Poor resistance - brake fluids, bases
Good impermeability
