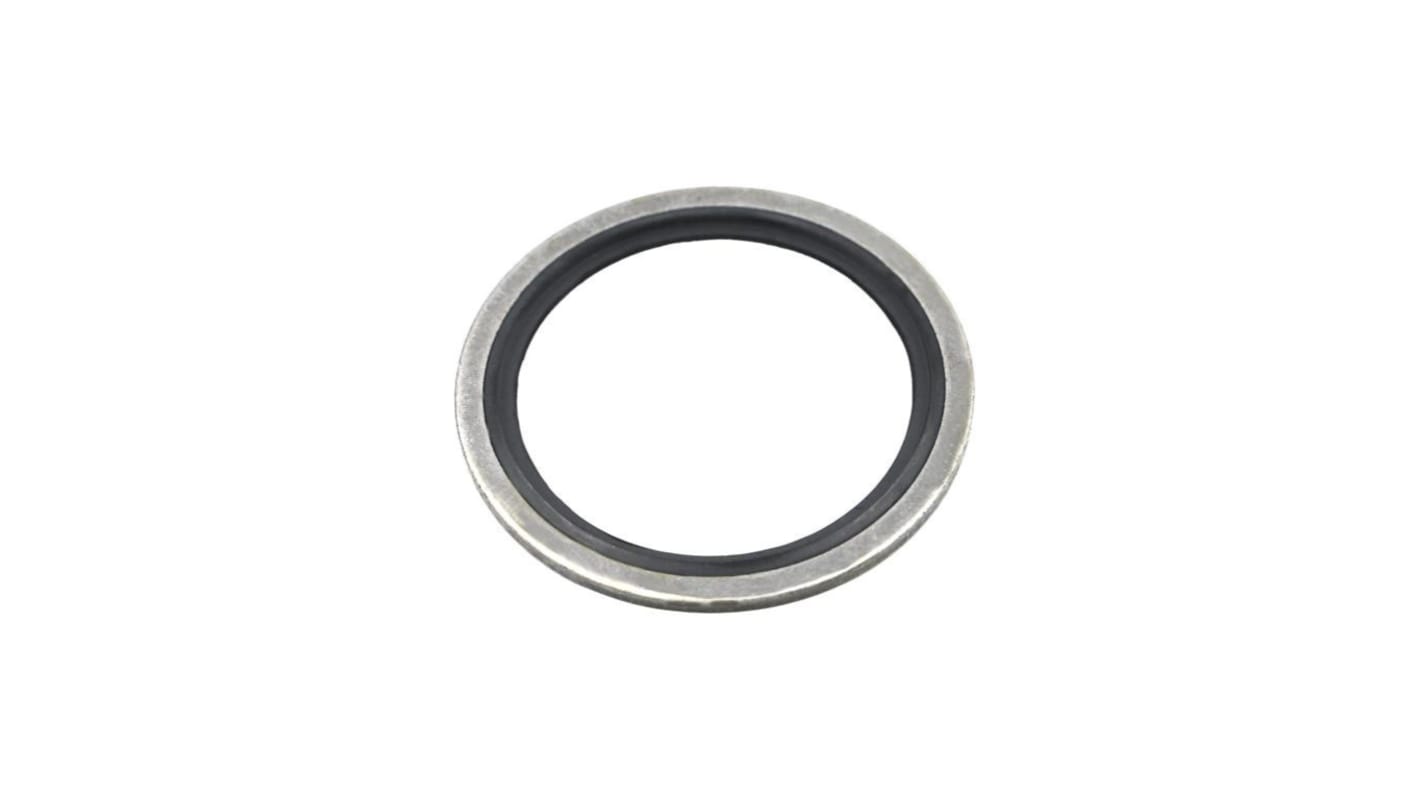

Hutchinson Le Joint Français Rubber : PC851 & washer : Mild Steel Bonded Seals O-Ring, 43mm Bore, 54mm Outer Diameter
- RS Stock No.:
- 229-6316
- Mfr. Part No.:
- 208189
- Brand:
- Hutchinson Le Joint Français
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 229-6316
- Mfr. Part No.:
- 208189
- Brand:
- Hutchinson Le Joint Français
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hutchinson Le Joint Français | |
Type | Bonded Seals | |
Material | Rubber : PC851 & washer : Mild Steel | |
Inside Diameter | 43mm | |
Outside Diameter | 54mm | |
Minimum Operating Temperature | -30°C | |
Thickness | 2.5mm | |
Maximum Operating Temperature | +120°C | |
Select all | ||
---|---|---|
Brand Hutchinson Le Joint Français | ||
Type Bonded Seals | ||
Material Rubber : PC851 & washer : Mild Steel | ||
Inside Diameter 43mm | ||
Outside Diameter 54mm | ||
Minimum Operating Temperature -30°C | ||
Thickness 2.5mm | ||
Maximum Operating Temperature +120°C | ||
- COO (Country of Origin):
- MT
The Hutchinson Le Joint Français from Bi-material ring washer-rubber, the bonded seals are particularly suitable for sealing under the heads of bolts and screws, for pipe couplings (both high and low pressure). It has the advantage of being removable and reusable, as opposed to other seals. Inside diameter for seals is 43 and external diameter is 54.
Operational temperature range : -30 °C / 100 °C
Peak temperature 120 °C
Rubber colour is black
Peak temperature 120 °C
Rubber colour is black
