- RS Stock No.:
- 878-3719
- Mfr. Part No.:
- SL1411A075A
- Brand:
- Littelfuse
Discontinued product
- RS Stock No.:
- 878-3719
- Mfr. Part No.:
- SL1411A075A
- Brand:
- Littelfuse
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- GB
Product Details

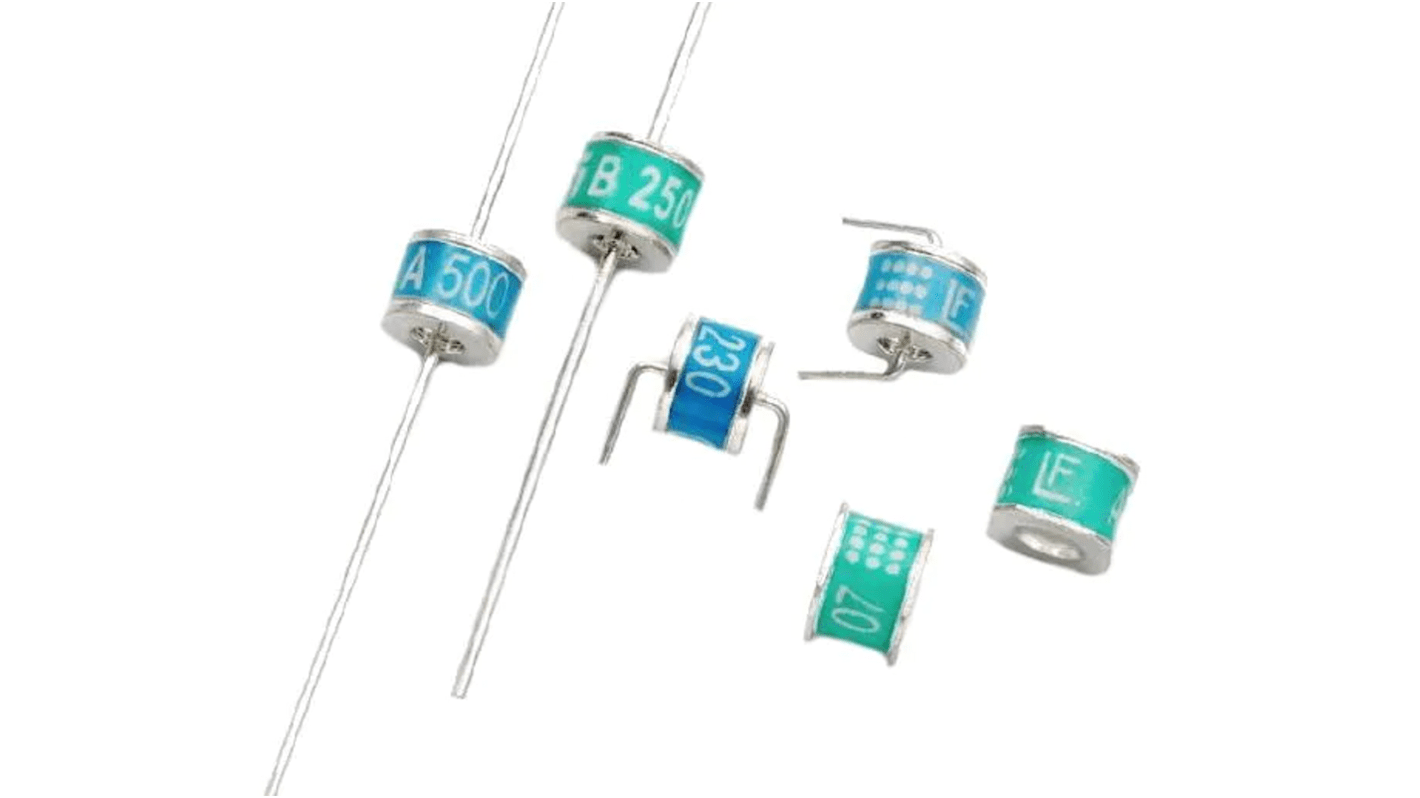

Littelfuse SL1411A Series Gas Discharge Tube
Littelfuse SL1411A series GDT plasma arresters offer high levels of performance on fast rising transients such as those induced from lightning disturbances. The Littelfuse SL1411A series also features unltra low capacitance and optimised internal geometry, ensuring low insertion loss at high frequencies. Additionally, the SL1411A series is robust enough to withstand a 20000A pulse without destruction. Applications include broadband equipment, ADSL equipment, XDSL equipment, satellite and CATV equipment as well as general telecom equipment.
Excellent response to fast rising transients
Up to 1.5 GHz working frequency
Up to 1.5 GHz working frequency
Specifications
Attribute | Value |
---|---|
Series | SL1411A |
Suppressor Type | 2 Electrode Arrester |
Maximum Surge Current | 10kA |
DC Spark Over Voltage | 90V |
Impulse Spark Over Voltage | 450V |
Maximum Voltage Rating | 60 V |
Mounting Type | Through Hole |
Dimensions | 8 (Dia.) x 6.05mm |
Height | 8mm |
Length | 6.05mm |
Maximum Operating Temperature | +90°C |
Minimum Operating Temperature | -40°C |
Capacitance | 1.5pF |
DC Holdover Voltage | 50V |
