- RS Stock No.:
- 183-9349
- Mfr. Part No.:

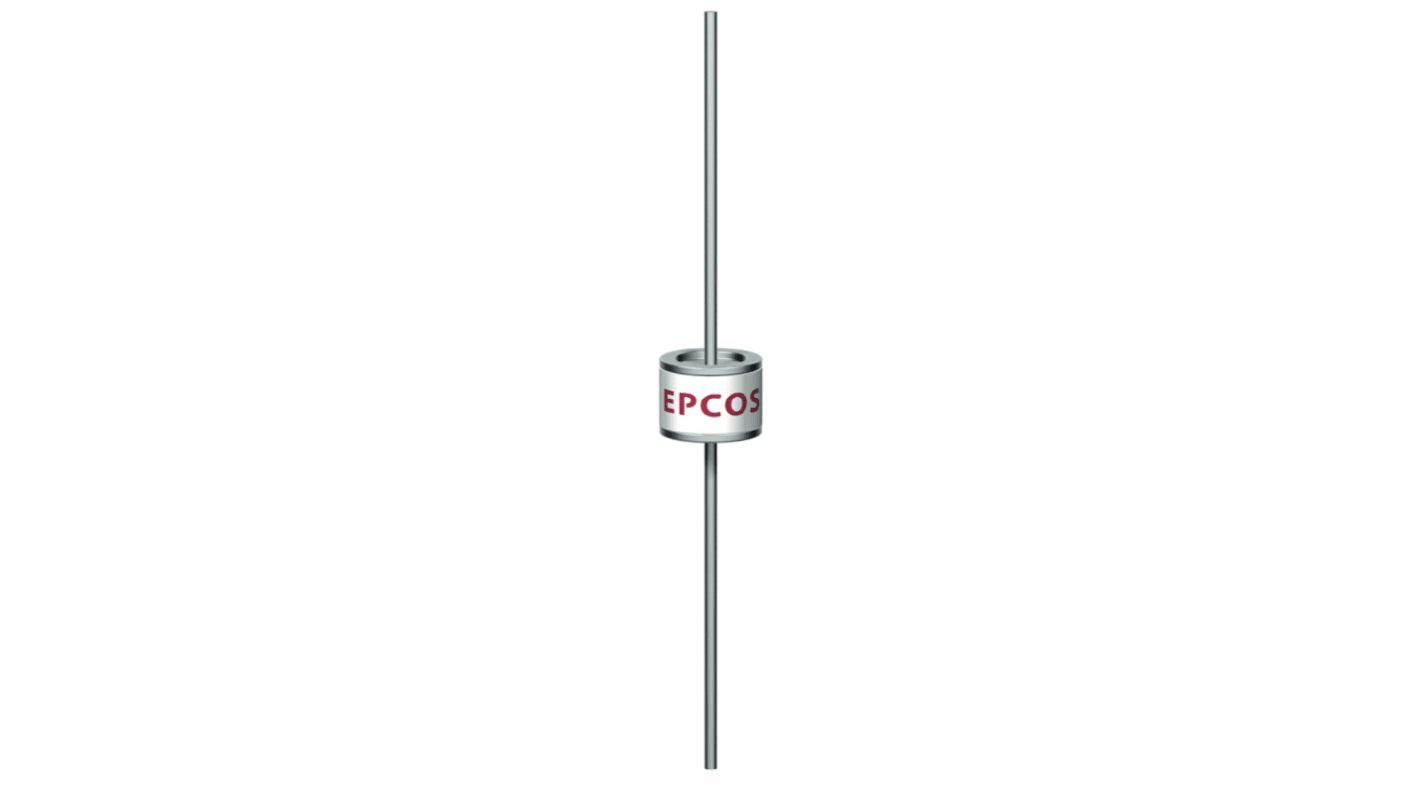

- B88069X0810S102
- Brand:
- TDK
Available to back order for despatch 10/10/2024
Added
Price Each (In a Pack of 5)
£1.11
(exc. VAT)
£1.33
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 20 | £1.11 | £5.55 |
25 - 45 | £0.996 | £4.98 |
50 + | £0.954 | £4.77 |
*price indicative |
- RS Stock No.:
- 183-9349
- Mfr. Part No.:
- B88069X0810S102
- Brand:
- TDK
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Standard size
Very fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
Applications
Branch exchange
Line protection
Subscriber protection
Alarm system
Tuner
Antenna protection
Very fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
Applications
Branch exchange
Line protection
Subscriber protection
Alarm system
Tuner
Antenna protection
Specifications
Attribute | Value |
---|---|
Series | EC350X |
Suppressor Type | 2 Electrode Arrester |
DC Spark Over Voltage | 402V |
Impulse Spark Over Voltage | 900V |
Maximum Voltage Rating | 60 V |
Mounting Type | Through Hole |
Dimensions | 8 Dia. x 6.05mm |
Depth | 8mm |
Height | 8.1mm |
Length | 6.05mm |
Maximum Operating Temperature | +90°C |
Minimum Operating Temperature | -40°C |
Capacitance | 1.5pF |
