RS PRO 13A, Fused Spur
- RS Stock No.:
- 687-7336
- Brand:
- RS PRO
43 In stock - FREE next working day delivery available
Added
Price Each
£31.52
(exc. VAT)
£37.82
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £31.52 |
| 10 - 49 | £29.95 |
| 50 + | £28.40 |
- RS Stock No.:
- 687-7336
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

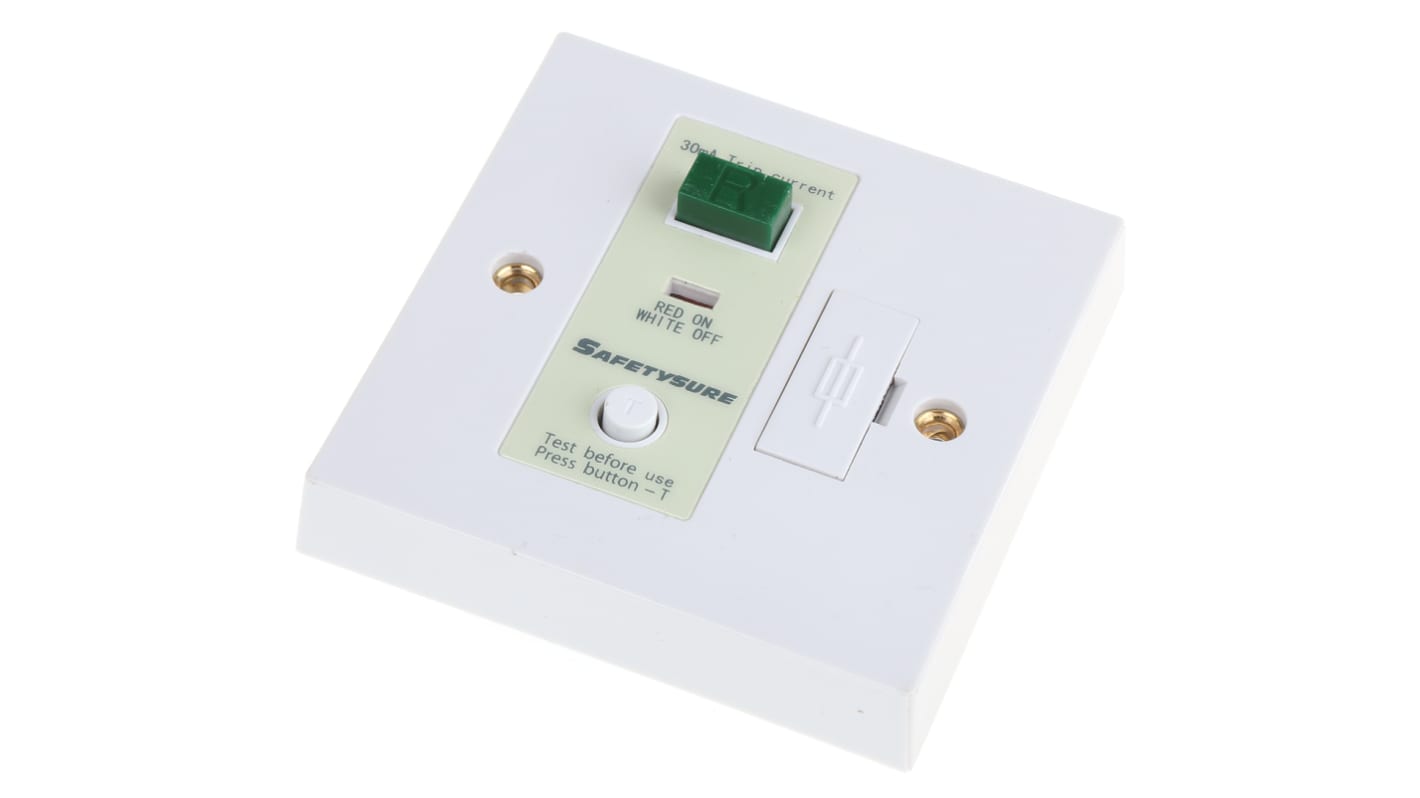

RS PRO 13 A, Fused Spurs
Install these fused spurs from RS PRO for extra protection against shocks and fires with a powerful electrical appliance. Their flush mounting goes directly into the wall for easy detection.
The spurs are mechanically latched so you don't need to reset them if you lose power. They have a handy test button and colour-coded display to make sure they're operational and a button to trip the current for safety reasons in the event of a hazard.
These fused spurs are commonly equipped with home devices such as washing machines or dishwashers. Electrical appliances installed without an external plug can benefit from this product.
The spurs are mechanically latched so you don't need to reset them if you lose power. They have a handy test button and colour-coded display to make sure they're operational and a button to trip the current for safety reasons in the event of a hazard.
These fused spurs are commonly equipped with home devices such as washing machines or dishwashers. Electrical appliances installed without an external plug can benefit from this product.
Features and Benefits
• White colour
• Current rating of 13 A
• Depth of 46 mm
• Dimensions of 86.5 (L) x 86.5 (W) x 46 (D) mm
• Earth terminal
• BS 1363, BS 7288 fuse type
• Height of 86.5 mm
• Length of 86.5 mm
• Minimum box depth of 46 mm
• Flush mounting style
• Two poles
• Passive RCD (residual current device) type
• Trip current of 30 mA
• Trip speed of 40 ms
• Voltage rating of 230 V AC
• Width of 86.5 mm
• Current rating of 13 A
• Depth of 46 mm
• Dimensions of 86.5 (L) x 86.5 (W) x 46 (D) mm
• Earth terminal
• BS 1363, BS 7288 fuse type
• Height of 86.5 mm
• Length of 86.5 mm
• Minimum box depth of 46 mm
• Flush mounting style
• Two poles
• Passive RCD (residual current device) type
• Trip current of 30 mA
• Trip speed of 40 ms
• Voltage rating of 230 V AC
• Width of 86.5 mm
Specifications
Attribute | Value |
|---|---|
| Current Rating | 13A |
| RCD Type | Passive |
| Fuse Type | BS 1363, BS 7288 |
| Colour | White |
| Number of Poles | 2 |
| Length | 86.5mm |
| Depth | 46mm |
| Width | 86.5mm |
| Trip Speed | 40ms |
| Voltage Rating | 230V ac |
| Earth Terminal | Yes |
| Height | 86.5mm |
| Trip Current | 30mA |
| Minimum Box Depth | 46mm |
| Dimensions L x W x D | 86.5 x 86.5 x 46mm |
