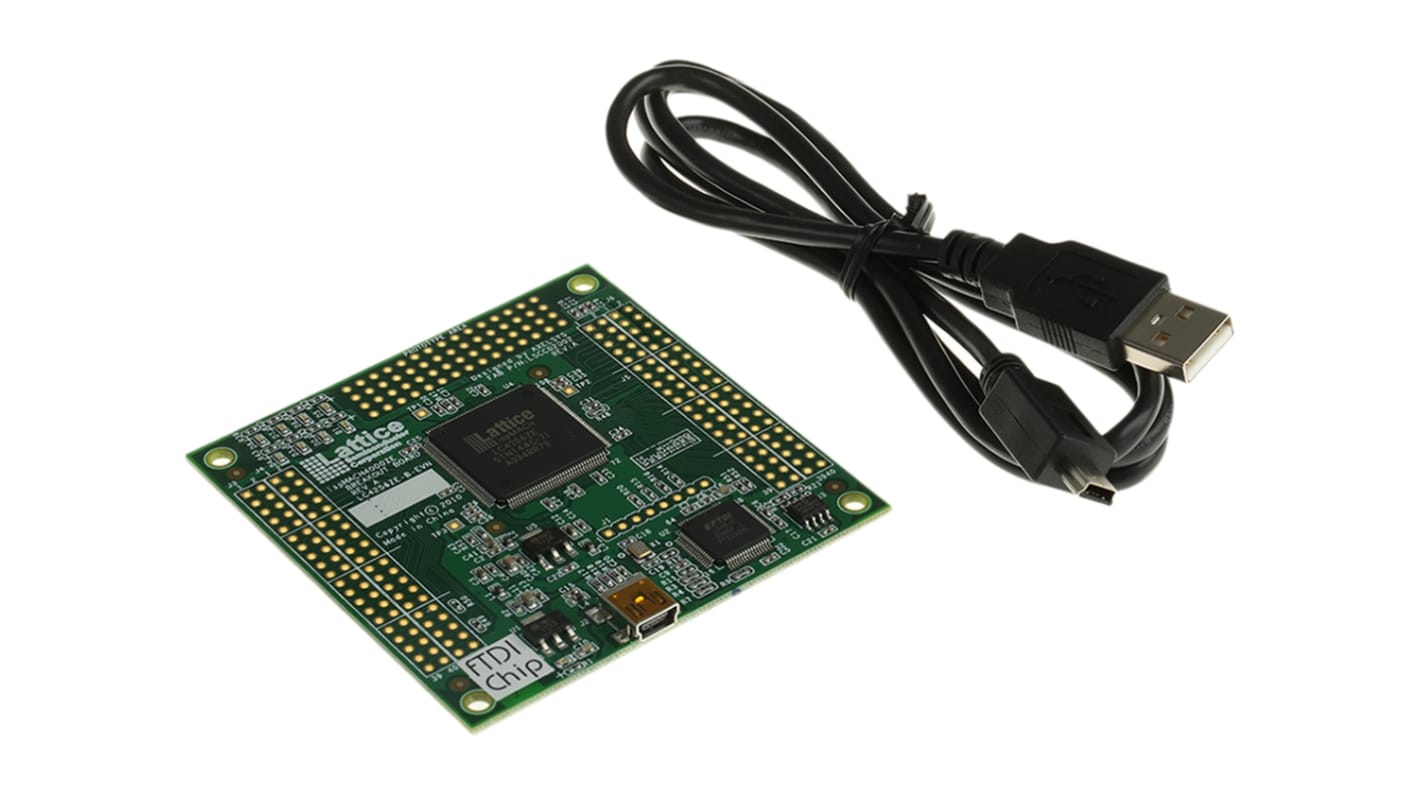

Lattice Semiconductor LC4256ZE-B-EVN ispMACH 4256ZE Breakout Board
- RS Stock No.:
- 743-4797
- Mfr. Part No.:
- LC4256ZE-B-EVN
- Brand:
- Lattice Semiconductor
Discontinued
- RS Stock No.:
- 743-4797
- Mfr. Part No.:
- LC4256ZE-B-EVN
- Brand:
- Lattice Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lattice Semiconductor | |
| Programmable Logic Technology | CPLD, FPGA | |
| Kit Classification | Breakout Board | |
| Kit Name | ispMACH 4256ZE | |
| Select all | ||
|---|---|---|
Brand Lattice Semiconductor | ||
Programmable Logic Technology CPLD, FPGA | ||
Kit Classification Breakout Board | ||
Kit Name ispMACH 4256ZE | ||
ispMACH 4256ZE Breakout Board
The Lattice Breakout Board Evaluation Kits offer a convenient way to conduct hardware evaluations by providing easy access to densely-spaced PLD I/Os.
Preprogrammed with hardware test program
ispMACH 4000ZE (LC4256ZE-5TN144C)
LED array
USB mini connector (Program/Power)
Four 2 x 20 expansion header landings for I/O and external power
1 x 8 expansion header landing for JTAG
4 x 15 hole prototyping area
+3.3 and +1.8V supply rails
Board size: 3in x 3in
ispMACH 4000ZE (LC4256ZE-5TN144C)
LED array
USB mini connector (Program/Power)
Four 2 x 20 expansion header landings for I/O and external power
1 x 8 expansion header landing for JTAG
4 x 15 hole prototyping area
+3.3 and +1.8V supply rails
Board size: 3in x 3in
Supplied with
USB cable
