Lattice Semiconductor POWR1014A-B-EVN Breakout Board
- RS Stock No.:
- 743-4790
- Mfr. Part No.:
- POWR1014A-B-EVN
- Brand:
- Lattice Semiconductor
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 743-4790
- Mfr. Part No.:
- POWR1014A-B-EVN
- Brand:
- Lattice Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lattice Semiconductor | |
| Programmable Logic Technology | CPLD, FPGA | |
| Kit Classification | Breakout Board | |
Select all | ||
|---|---|---|
Brand Lattice Semiconductor | ||
Programmable Logic Technology CPLD, FPGA | ||
Kit Classification Breakout Board | ||

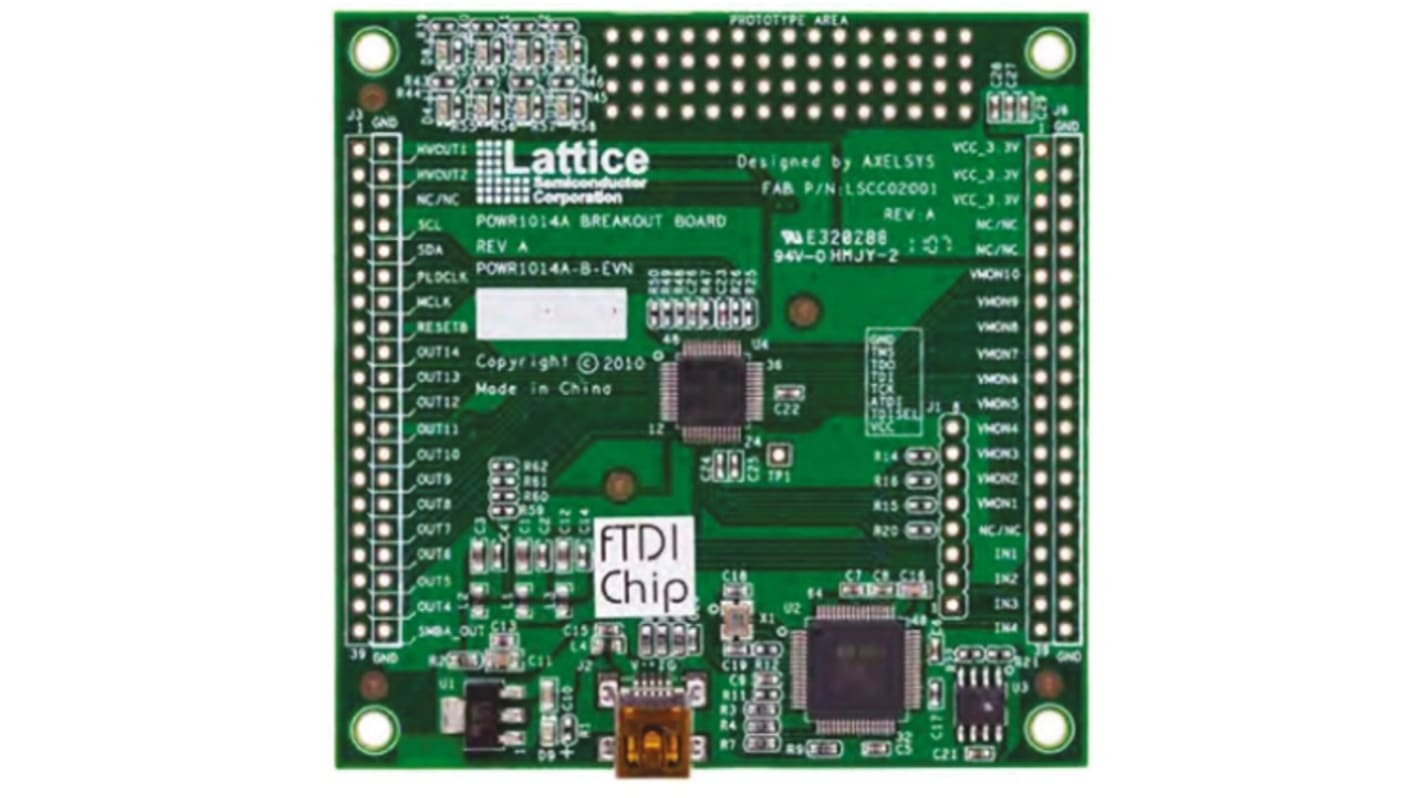

POWR1014A Breakout Board
The Lattice Breakout Board Evaluation Kits offer a convenient way to conduct hardware evaluations by providing easy access to densely-spaced PLD I/Os.
Preprogrammed with hardware test program
Evaluate POWR1014A voltage monitors, high-voltage FET drivers, and open drain outputs
ispPAC-POWR1014A-02TN48I
LED array
USB mini connector (program/power)
Two 2 x 20 expansion header landings for I/O and external power
1 x 8 expansion header for JTAG
4 x 15 hole prototyping area
+3.3V supply rail
Board size: 3in x 3in
Evaluate POWR1014A voltage monitors, high-voltage FET drivers, and open drain outputs
ispPAC-POWR1014A-02TN48I
LED array
USB mini connector (program/power)
Two 2 x 20 expansion header landings for I/O and external power
1 x 8 expansion header for JTAG
4 x 15 hole prototyping area
+3.3V supply rail
Board size: 3in x 3in
Supplied with
USB cable
