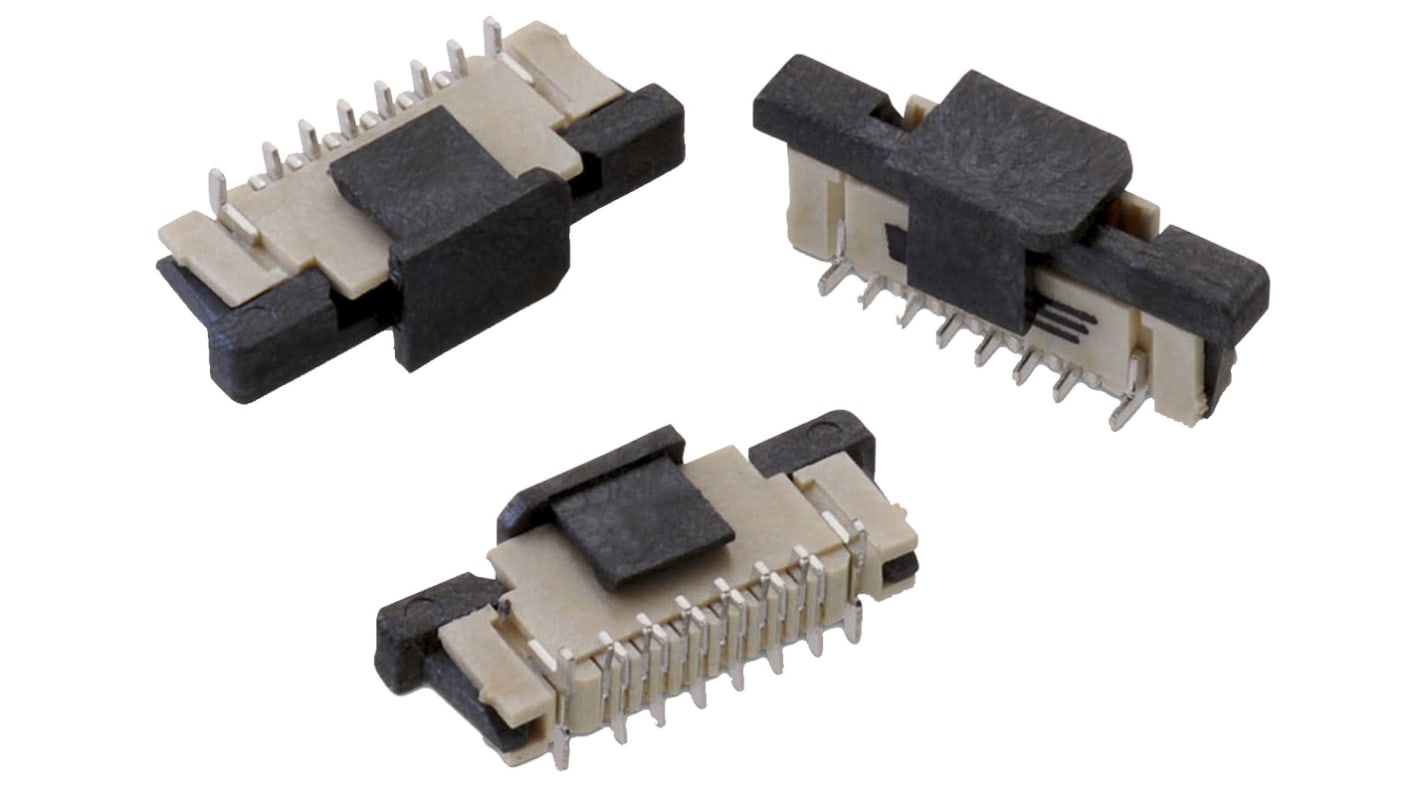

Wurth Elektronik, WR-FPC, 687 0.5mm Pitch 18 Way Vertical Male FPC Connector, ZIF Vertical Contact
- RS Stock No.:
- 162-2347P
- Mfr. Part No.:
- 687318124422
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal 10 units (supplied on a continuous strip)*
£14.60
(exc. VAT)
£17.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 3 unit(s), ready to ship
Units | Per unit |
|---|---|
| 10 - 24 | £1.46 |
| 25 - 49 | £1.39 |
| 50 - 99 | £1.31 |
| 100 + | £1.23 |
*price indicative
- RS Stock No.:
- 162-2347P
- Mfr. Part No.:
- 687318124422
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 18 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Mounting Type | Surface Mount | |
| Gender | Male | |
| Contact Position | Vertical | |
| Termination Type | ZIF Vertical Contact | |
| Body Orientation | Vertical | |
| Insertion Force | ZIF | |
| Current Rating | 500mA | |
| Voltage Rating | 250 V ac | |
| Series | WR-FPC | |
| Series Number | 687 | |
| Number of Rows | 1 | |
| Termination Method | SMT | |
| Contact Plating | Tin over Nickel | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | Liquid Crystal Polymer | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 18 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Mounting Type Surface Mount | ||
Gender Male | ||
Contact Position Vertical | ||
Termination Type ZIF Vertical Contact | ||
Body Orientation Vertical | ||
Insertion Force ZIF | ||
Current Rating 500mA | ||
Voltage Rating 250 V ac | ||
Series WR-FPC | ||
Series Number 687 | ||
Number of Rows 1 | ||
Termination Method SMT | ||
Contact Plating Tin over Nickel | ||
Minimum Operating Temperature -25°C | ||
Housing Material Liquid Crystal Polymer | ||
Maximum Operating Temperature +85°C | ||
The solder profile must comply with the WE technical soldering specification, otherwise this will void the warranty Other soldering methods are not verified and have to be validated by the customer at his own risk Cleaning and Washing:Parts are not constructed for washing, so washing can cause malfunction afterwards. Cleaning agent that are used to clean the customer applications might damage or change the characteristics of the component, body, pins and termination Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to water completely When cleaning by hand (brushing), please do not use excessive force on our connectors to avoid malfunction afterwards, because customer could deform function relevant areas We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues and compatible with the plastic Storage Conditions
