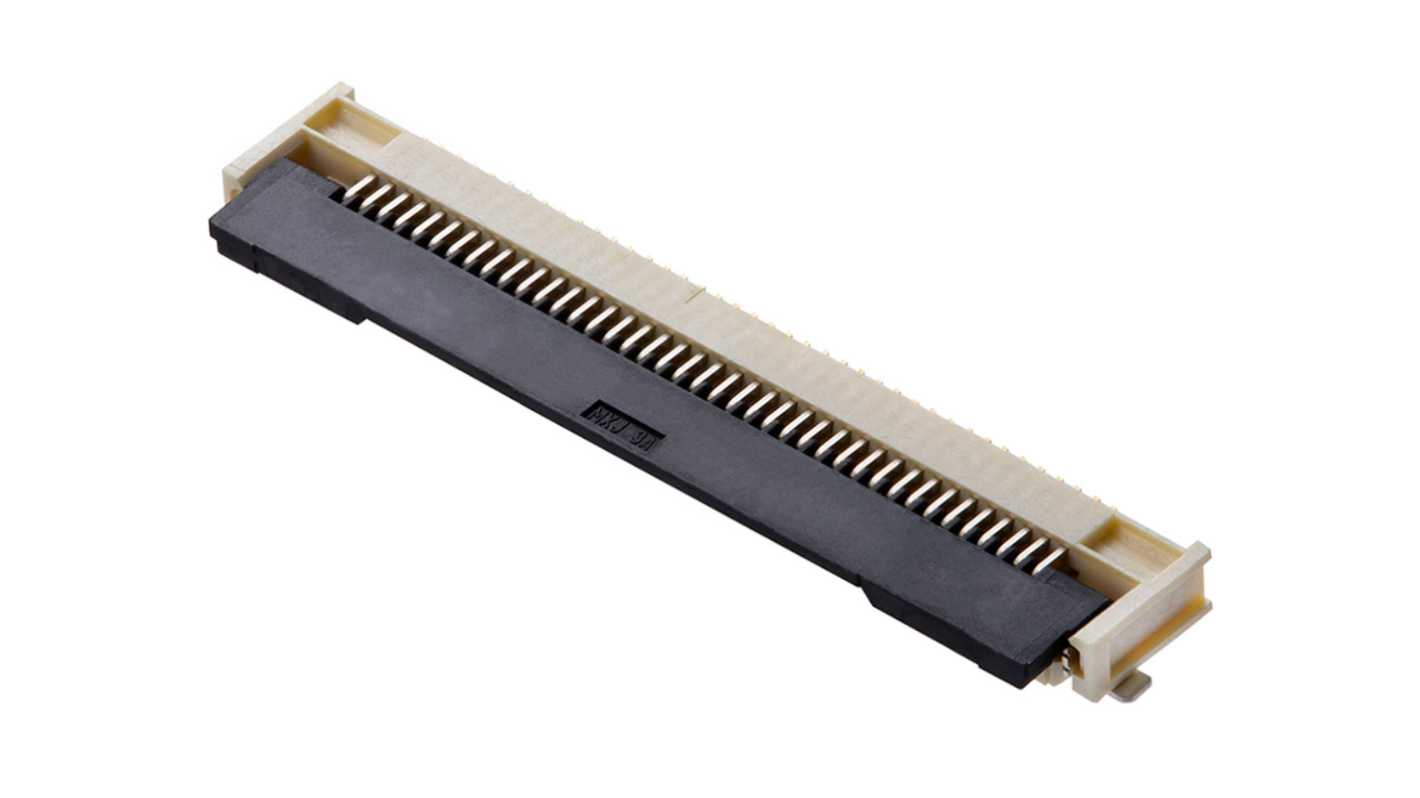

Molex, 505110, 505110-1992 0.5mm Pitch 19 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 482-391
- Mfr. Part No.:
- 505110-1992
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£1,404.03
(exc. VAT)
£1,684.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,404.03 | £0.468 |
*price indicative
- RS Stock No.:
- 482-391
- Mfr. Part No.:
- 505110-1992
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 19 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Mounting Type | Surface Mount | |
| Termination Type | Bottom | |
| Body Orientation | Right Angle | |
| Series | 505110 | |
| Series Number | 505110-1992 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 19 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Mounting Type Surface Mount | ||
Termination Type Bottom | ||
Body Orientation Right Angle | ||
Series 505110 | ||
Series Number 505110-1992 | ||
- COO (Country of Origin):
- JP
The TE Connectivity FFC/FPC Connector is a sophisticated solution designed for applications requiring a reliable connection in tight spaces. It features a compact 0.50mm pitch and a right-angle orientation, making it ideal for modern devices where space is at a premium. Engineered with durability in mind, this connector supports up to 19 circuits while ensuring a sturdy mating position thanks to its front flip actuator type. With exceptional gold over nickel plating, it guarantees long-lasting performance and improved conductivity. This connector is compliant with strict environmental standards, highlighting its commitment to quality and safety. Whether you're working on consumer electronics, automotive applications, or industrial machinery, the connector seamlessly integrates into your design, providing both functionality and reliability.
Compact design perfect for tight spaces
Robust construction ensures long-lasting performance
Supports up to 19 circuits for versatile applications
Front flip actuator type allows effortless manipulation
Gold over nickel plating enhances conductivity and durability
Compliant with environmental regulations ensuring safety
Ideal for use in consumer electronics and automotive systems
Offers a reliable connection in critical applications
Robust construction ensures long-lasting performance
Supports up to 19 circuits for versatile applications
Front flip actuator type allows effortless manipulation
Gold over nickel plating enhances conductivity and durability
Compliant with environmental regulations ensuring safety
Ideal for use in consumer electronics and automotive systems
Offers a reliable connection in critical applications
