RS PRO Momentary Foot Switch - Cast Iron Case Material, DP-CO, 20 A Contact Current, 125V Contact Voltage
- RS Stock No.:
- 125-3710
- Brand:
- RS PRO
Subtotal (1 unit)*
£148.08
(exc. VAT)
£177.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 73 unit(s) shipping from 06 October 2025
- Plus 7 unit(s) shipping from 06 October 2025
- Plus 21 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £148.08 |
*price indicative
- RS Stock No.:
- 125-3710
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | DP-CO | |
| Foot Switch Type | Heavy Duty Foot Switch | |
| Switch Operation | Momentary | |
| Case Material | Cast Iron | |
| Contact Voltage Rating AC | 125V, 250V | |
| Contact Current Rating | 20 A | |
| Switch Environment | Heavy Duty | |
| IP Rating | IP65 | |
| Guard Cover | Yes | |
| Colour | Orange | |
| Dimensions | 157 x 228 x 140mm | |
| Length | 157mm | |
| Standards Met | CCC, CE, CSA, cULus, cULus Recognised | |
| Width | 228mm | |
| Height | 140mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration DP-CO | ||
Foot Switch Type Heavy Duty Foot Switch | ||
Switch Operation Momentary | ||
Case Material Cast Iron | ||
Contact Voltage Rating AC 125V, 250V | ||
Contact Current Rating 20 A | ||
Switch Environment Heavy Duty | ||
IP Rating IP65 | ||
Guard Cover Yes | ||
Colour Orange | ||
Dimensions 157 x 228 x 140mm | ||
Length 157mm | ||
Standards Met CCC, CE, CSA, cULus, cULus Recognised | ||
Width 228mm | ||
Height 140mm | ||
- COO (Country of Origin):
- CN

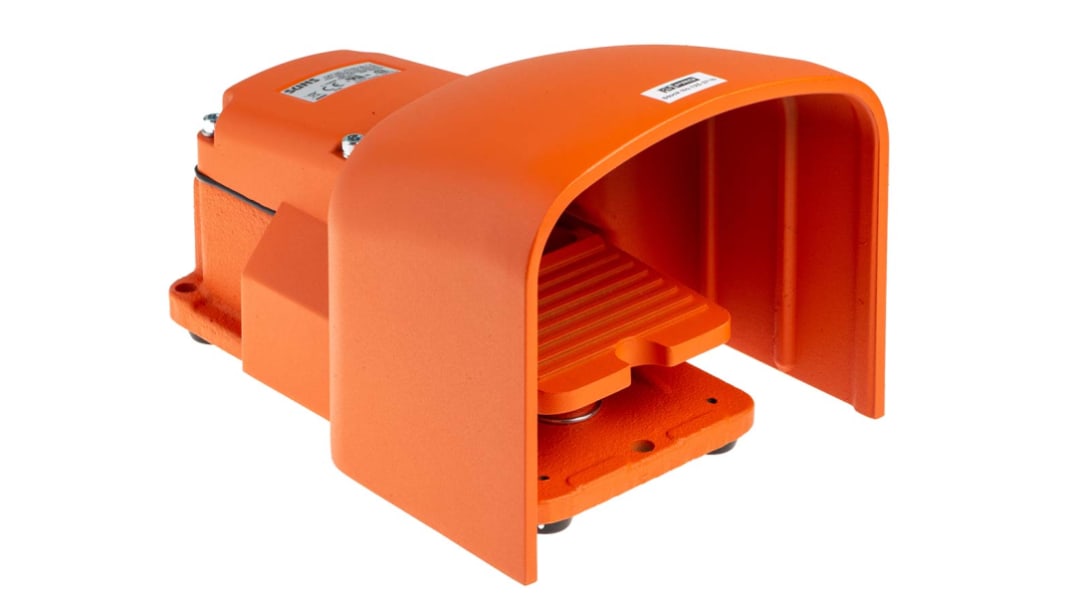

RS PRO Momentary Foot Switch - Cast Iron Material, DP-CO, 20 A Contact Current, 125 V, 250 V Contact Voltage
The RS PRO momentary foot switch is made for changing contacts within an electrical circuit. It's well-suited to industrial applications where operating a hand switch is a safety concern, such as within agricultural machinery. This switch can also be used in the home and you will often find it in sewing machines and patient hoists.
This switch is constructed from cast aluminum for strength and durability, which means it's resistant to corrosion and denting. It has dimensions of (L) 157 mm x (W) 228 mm x (H) 140 mm. The cover is a bright orange colour, so it's easily noticeable on the floor. You'll benefit from anti-skid, rubber feet, as well as three pre-cut holes for mounting to the floor or equipment.
Like all of our RS PRO collection, it's been tested by engineers for durability and reliability. It's IP68 rated, which means it's protected against dust and water projected from a nozzle.
This switch is constructed from cast aluminum for strength and durability, which means it's resistant to corrosion and denting. It has dimensions of (L) 157 mm x (W) 228 mm x (H) 140 mm. The cover is a bright orange colour, so it's easily noticeable on the floor. You'll benefit from anti-skid, rubber feet, as well as three pre-cut holes for mounting to the floor or equipment.
Like all of our RS PRO collection, it's been tested by engineers for durability and reliability. It's IP68 rated, which means it's protected against dust and water projected from a nozzle.
Features and Benefits
- Momentary foot switch
- Contact configuration of DP-CO
- Orange colour
- Momentary switch operation
- Constructed from cast aluminum
- Contact voltage rating of AC 125 V, 250 V
- Contact current rating of 20 A
- Heavy duty switch
- IP68 rated for dust and water protection
- CCC, CE, CSA, CULus and CULus compliant for safety and quality
- Dimensions of 157 mm (L) x 228 mm (W) x 140 mm (D)
- Weight: 2 kg
- Guard cover included for added protection
Why would you choose RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
