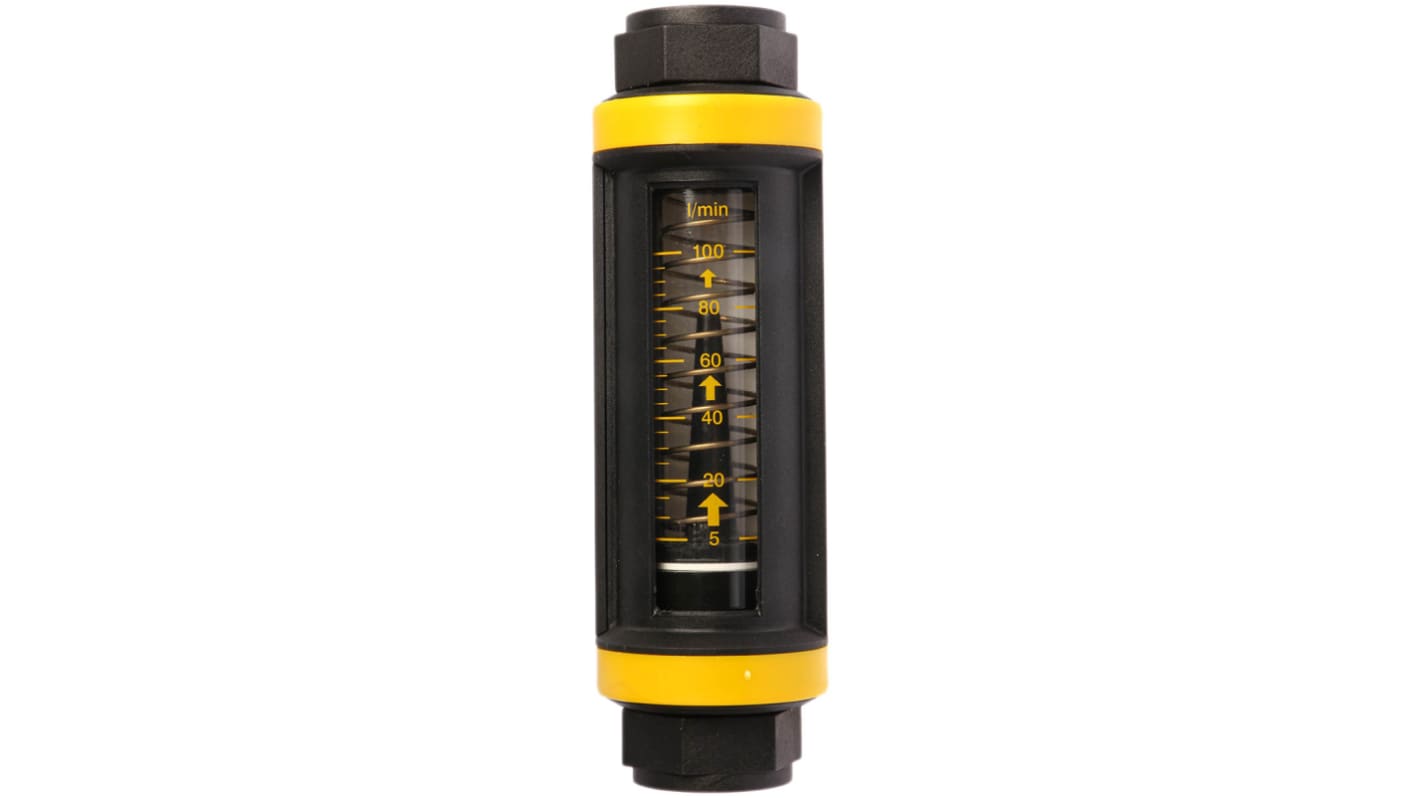

The Parker Easiflow series variable area flowmeter measures a liquid flow rate of 5L/min to 100L/min. This flowmeter enabled with an AC-DC switch. It is suitable for controlling valves or pump motors or for activating alarm signals. This indicator has an operating voltage of 300VAC/DC. Inclusions
2 x DIN standard sockets complete with plugs.
Features and Benefits
Pipe diameter range is 1in Connection type is 1 BSP female Maximum operating pressure is 10bar Maximum operating temperature is 60°C
Media monitored is liquid It works in any plane Pressures up to 10bar Accuracy ±5% FSD Repeatability ±1% FSD Fully adjustable flow rate signalling Plant and equipment protection
Attribute
Value
Media Monitored
Liquid
Device Type
Variable Area
Minimum Flow Rate
5 L/min
Maximum Flow Rate
100 L/min
Pipe Diameter Range
1 in
Connection Type
1 BSP Female
Maximum Pressure
10bar
Material
PET
Minimum Operating Temperature
+5°C
Maximum Operating Temperature
+60°C
Series
Easiflow
