Pepperl + Fuchs Horizontal Polypropylene Float Switch, Float, 5m Cable, Direct Load
- RS Stock No.:
- 350-2082
- Mfr. Part No.:
- LFL2-BK-U-PUR5
- Brand:
- Pepperl + Fuchs
15 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£78.57
(exc. VAT)
£94.28
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £78.57 |
| 5 - 9 | £76.18 |
| 10 + | £73.72 |
- RS Stock No.:
- 350-2082
- Mfr. Part No.:
- LFL2-BK-U-PUR5
- Brand:
- Pepperl + Fuchs
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CZ
Product Details

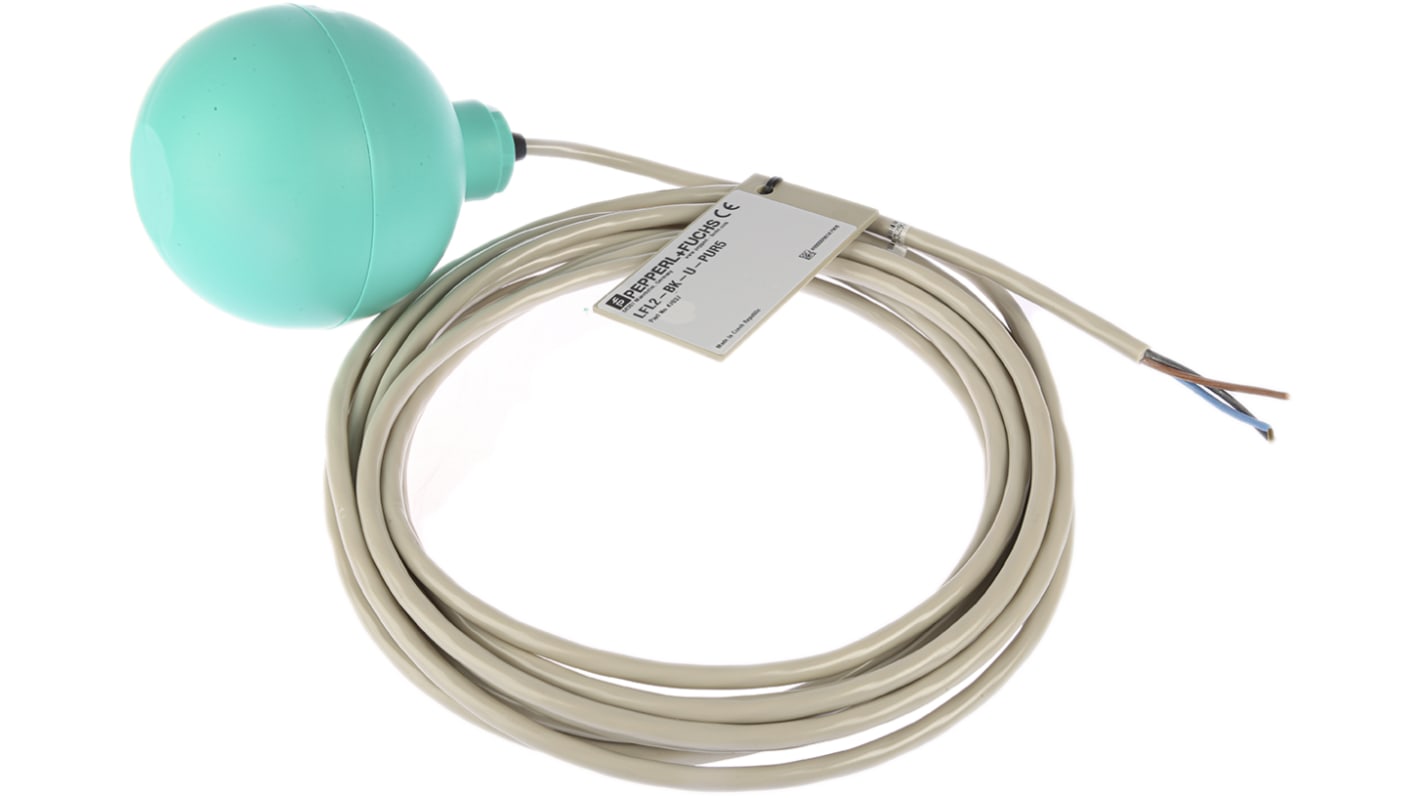

Pepperl + Fuchs Float Switch
The Pepperl + Fuchs microswitch (changeover contact) integrated with a PP float. It is activated in the event of deviations from the horizontal position. The switching ball in the float moves along an axis and activates the microswitch. This device can be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements. It has a supply voltage of 250VAC/150VDC.
Features and Benefits
It uses PUR cable material
Switch element: Micro switch, mercury-free
Limit value detection for fluids
Sleeve design: Small diameter, mounting through G1 tap hole possible
Ball design: High buoyancy
Density sleeve design: ≥ 0.8 g/cm3 and ball design: ≥ 0.6 g/cm3
Switching is started by the rocking motion of the sensor
It is ideally suited to low density liquids
The switch element is mercury free
The float switch is small in diameter, allowing users to fit into tap holes as small as G1
Density: ≥0.6g/cm3
It has 5m cable length
Switch element: Micro switch, mercury-free
Limit value detection for fluids
Sleeve design: Small diameter, mounting through G1 tap hole possible
Ball design: High buoyancy
Density sleeve design: ≥ 0.8 g/cm3 and ball design: ≥ 0.6 g/cm3
Switching is started by the rocking motion of the sensor
It is ideally suited to low density liquids
The switch element is mercury free
The float switch is small in diameter, allowing users to fit into tap holes as small as G1
Density: ≥0.6g/cm3
It has 5m cable length
Certifications
IP68 rated
EN 50178
EN 60529
EN 60947-5-2
EN 60947-5-2 A1
CE certified
EN 50178
EN 60529
EN 60947-5-2
EN 60947-5-2 A1
CE certified
Specifications
Attribute | Value |
|---|---|
| Device Type | Float |
| Mounting Type | Horizontal |
| Switch Output | Direct Load |
| Body Material | Polypropylene |
| Cable Length | 5m |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Maximum Current | 1 A dc, 3 A ac |
| Maximum Pressure | 2bar |
