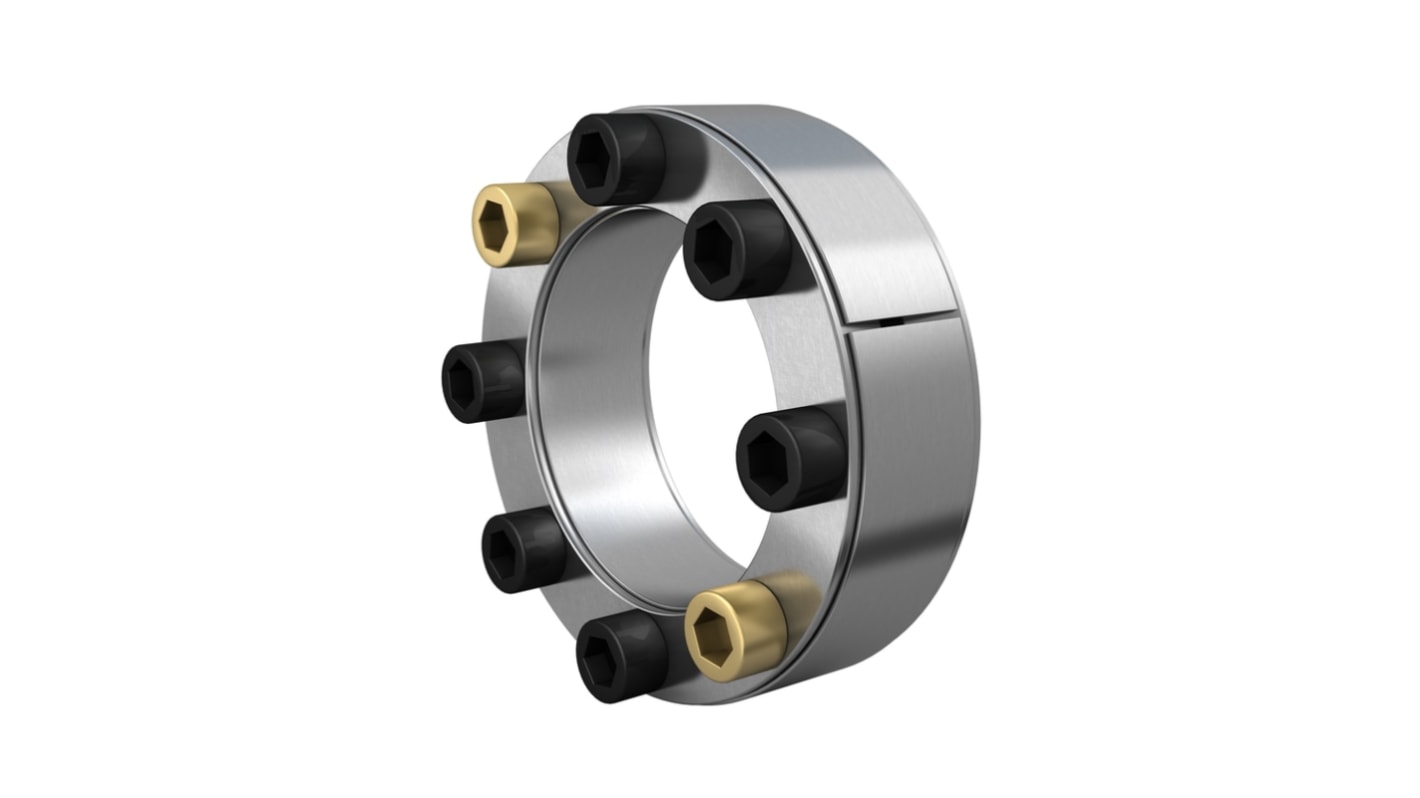

SKF FX Keyless Bushing, 130mm Outside Diameter, 90mm Bore, 39.5mm Length Coupler

View all Flexible Couplings

Subtotal (1 unit)*

£57.91

(exc. VAT)

£69.49

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£57.91

*price indicative

RS Stock No.:
268-9909
Mfr. Part No.:
PHF FX10-90X130
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Bore

90mm

Coupling Types

FX Keyless Bushing

Outside Diameter

130mm

Length

39.5mm

Fastening Type

Clamping

Torque Rating

6600Nm

COO (Country of Origin):
CN
The SKF bushing and hub is available in many variant, offering specific benefit in power transmission application ranging from automotive to papermaking. This bushing is designed to attach component to shaft using a 360-degree interference fit, with no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screw.

Manufactured according to established market standard
Available in a wide range of metric and imperial bore size
Easily installed and removed using basic tool
True zero backlash
Reduced machining and material cost
