Ruland Bellows Coupling, 51mm Outside Diameter, 25mm Bore, 58.7mm Length Coupler
- RS Stock No.:
- 174-7293
- Mfr. Part No.:
- MBC51-25-20-A
- Brand:
- Ruland
Bulk discount available
Subtotal (1 unit)*
£142.96
(exc. VAT)
£171.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £142.96 |
5 - 9 | £138.68 |
10 + | £134.39 |
*price indicative
- RS Stock No.:
- 174-7293
- Mfr. Part No.:
- MBC51-25-20-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Coupling Types | Bellows Coupling | |
Bore | 25mm | |
Outside Diameter | 51mm | |
Length | 58.7mm | |
Torque Rating | 45.2Nm | |
Misalignment - Angular | 2° | |
Misalignment - Parallel | 0.25mm | |
Misalignment - Axial | 0.5mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Coupling Types Bellows Coupling | ||
Bore 25mm | ||
Outside Diameter 51mm | ||
Length 58.7mm | ||
Torque Rating 45.2Nm | ||
Misalignment - Angular 2° | ||
Misalignment - Parallel 0.25mm | ||
Misalignment - Axial 0.5mm | ||
- COO (Country of Origin):
- US
Ruland Coupling

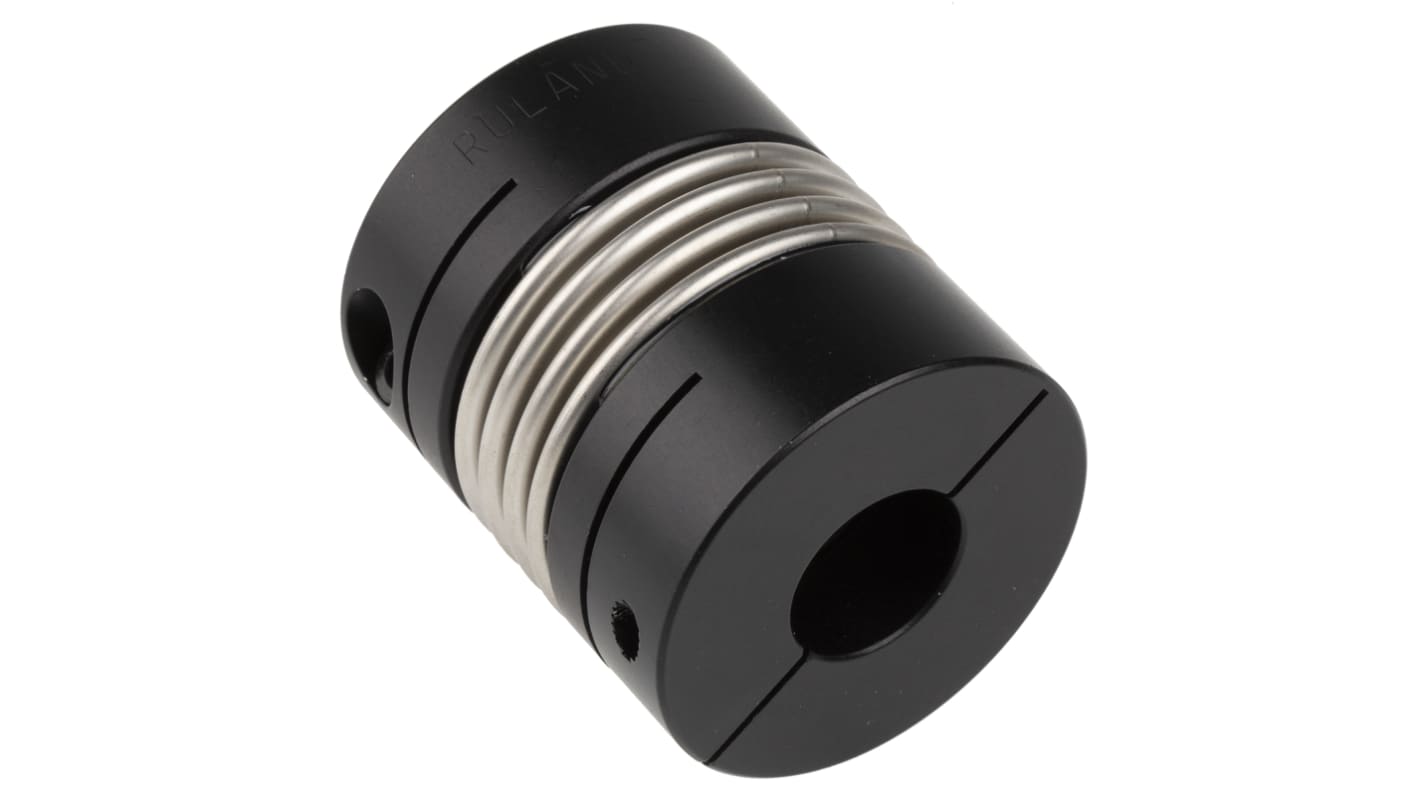

The Ruland bellows coupling has a 51mm OD, 58.7mm length and 25mm x 20mm bore with clamp fastening. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. It is comprised of two anodized aluminium hubs and a stainless steel bellows. This bellow is able to flex while remaining rigid under torsional loads. Its balanced design reduces vibrations at high speed.
Features and Benefits
• Zero backlash
• Black-oiled alloy steel fasteners for strength and corrosion resistance
• Precision bellows coupling with excellent kinematic properties
• Maximum speed of 10,000rpm
• Hardware is metric and tested beyond DIN standard for high torque capabilities
• Set screw material is alloy steel with black oxide finish
• Service temperature range from -40°C and 93°C
• Low inertia coupling
• Lightweight
• Black-oiled alloy steel fasteners for strength and corrosion resistance
• Precision bellows coupling with excellent kinematic properties
• Maximum speed of 10,000rpm
• Hardware is metric and tested beyond DIN standard for high torque capabilities
• Set screw material is alloy steel with black oxide finish
• Service temperature range from -40°C and 93°C
• Low inertia coupling
• Lightweight
Applications
• Stepper and servo drives
• Encoders
• General purpose light-duty power transmission
• Encoders
• General purpose light-duty power transmission
Certifications
• REACH certification
• Conflict Minerals compliant
• DIN 912 12.9
• ISO9001:2015
• Conflict Minerals compliant
• DIN 912 12.9
• ISO9001:2015
